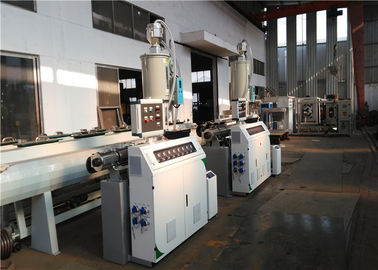

Single Screw Extruder Line sepenuhnya otomatis
Detail Produk
| Desain Sekrup: | lajang | Nilai Otomatis: | Otomatis penuh |
|---|---|---|---|
| Aplikasi: | Pipa | Plastik Diproses: | PP/PE/PVC |
| Diameter pipa: | 16-630MM | Sertifikat: | CE ISO9001 |
| Menyoroti |
mesin extruder sekrup tunggal,mesin extruder plastik |
||
Deskripsi Produk
- Garis ekstrusi pipa plastik seri HDPE untuk pasokan air pertanian, pasokan air arsitektur, pasokan gas dan transportasi, kabel telekomunikasi
- Jangkauan diameter pipa: 16-630mm
- Jenis mesin yang berbeda tersedia berdasarkan persyaratan diameter
- Operasi yang mudah, otomatisasi tinggi, produksi yang stabil dan dapat diandalkan
- Proses pemotongan laser canggih memastikan perakitan yang tepat dan akurasi struktural
- Desain kompak dioptimalkan untuk menghemat ruang pabrik yang berharga
- Fitur yang mudah digunakan termasuk penutup kaca tempered untuk pemantauan produksi yang mudah
- Sistem listrik merek internasional untuk operasi yang dapat diandalkan dan umur panjang
- Cetakan yang dapat dipertukarkan untuk memproduksi pipa dengan berbagai ukuran
- Desain otomatisasi tinggi memungkinkan operasi dengan pelatihan staf minimal
- Dukungan layanan purna jual yang komprehensif di luar negeri
| Jarak pipa (mm) | 20-63 | 50 sampai 160 | 150-250 | 250-315 | 280-630 |
|---|---|---|---|---|---|
| Extruder | SJ65/33 | SJ75/33 | SJ90/33 | SJ120/33 | SJ150/33 |
| Kapasitas (kg/jam) | 50 sampai 80 | 80 sampai 150 | 180-260 | 300 sampai 400 | 450-600 |
| Kekuatan total (kw) | 75 | 145 | 195 | 220 | 350 |
| Panjang garis | 35 | 38 | 42 | 44 | 56 |
| Sistem kontrol | PLC | PLC | PLC | PLC | PLC |
Sorotan Produk
Single Screw Extruder Line sepenuhnya otomatis HDPE PP PPR PE Pipe Single Screw Extruder Line Dengan Garansi 1 Tahun, sepenuhnya Otomatis Gambaran Singkat Garis ekstrusi pipa plastik seri HDPE untuk pasokan air pertanian, pasokan air arsitektur, pasokan gas dan transportasi, kabel telekomunikasi ...
75-250mm PVC Pipe Electrical Conduit Water Supply Mesin Membuat
75-250mm PVC Pipe Electrical Conduit Water Supply Making Machine This complete PVC pipe production line manufactures high-quality PVC/UPVC pipes ranging from 16mm to 800mm in diameter. The system is engineered for producing electrical conduit pipes, water supply pipes, and construction plumbing pipes with various diameters and wall thickness specifications. Applications The manufactured UPVC pipes serve multiple applications including electrical conduit systems, water supply
Mesin Pembuat Pipa HDPE 50-250MM Garis Ekstrusi Pipa PE Otomatis Penuh Sekrup Tunggal
50-250MM HDPE Pipe Making Machine Extrusion Production Line Product Overview The HDPE pipes with large diameter are typically applied for fuel gas and water supply systems. These pipes feature excellent characteristics including heat resistance, aging resistance, high mechanical strength, environmental stress crack resistance, and good creep resistance. They serve as preferred conduits for ductwork systems and water supply networks between cities and suburbs. PE Pipe
Gas Air PE Pipe Extrusion Line Single Outlet 4 - 9m / Min Capacity
PE Pipe Extrusion Line HDPE gas water pipe machine, PE gas pipe extrusion line Specially-designed spiral moulds for PE pipes, with inside oil controlling temperature system. plastic machine Extruder adopts big L/D and multi mixing structure, which is more suitable for the PE low temperature extrusion production. PE PIPE PROCUTION LINE MAIN COMPONENTS: No Equipment Quantity 1 Vacuum loader and hopper dryer 1set 2 Single screw extruder 1set 3 Die-head 1set 4 color line
Dekorasi PVC Foam Board Extrusion Line 45 / 90mm Diameter Sekrup Ganda
PVC free foam sheet production line/foam board extrusion line / PVC foam decoration sheet production line Products characteristics 1) Water proof, anti-flaming, damp proof, rot proof, mothproof, light weight, keep temperature, sound and heat insulation and shock proof etc. 2) Color-way is not changed long time and not easy to aging under radiation resistance 3) This product can be manufactured by general wood processing tools; It can be drilled, sawed, nailed and dig.It is
