Mesin Pelletizing Plastik Hot Cutting
Detail Produk
| Kondisi: | Baru | Nilai Otomatis: | Otomatis |
|---|---|---|---|
| Kapasitas: | 400kg/jam | Plastik Diproses: | TPU, EVA, TPEE, PP, PE, PVC, ABS |
| Desain Sekrup: | Sekrup ganda | Nomor model: | LB |
| Pembalik: | ABB | Jaminan: | 2 Tahun |
| Komponen Listrik: | atau Schnider | Metode Pengepakan: | Paket kayu dan film |
| Waktu Pengiriman: | 45 hari | ||
| Menyoroti |
PVC Hot Cutting Pelletizing Line,Mesin Granulasi Plastik Pelletizing Line,Mesin Granulator Plastik Pelletizing Line |
||
Deskripsi Produk
- Peralatan canggih dengan peletizing yang tepat dan kapasitas produksi yang tinggi

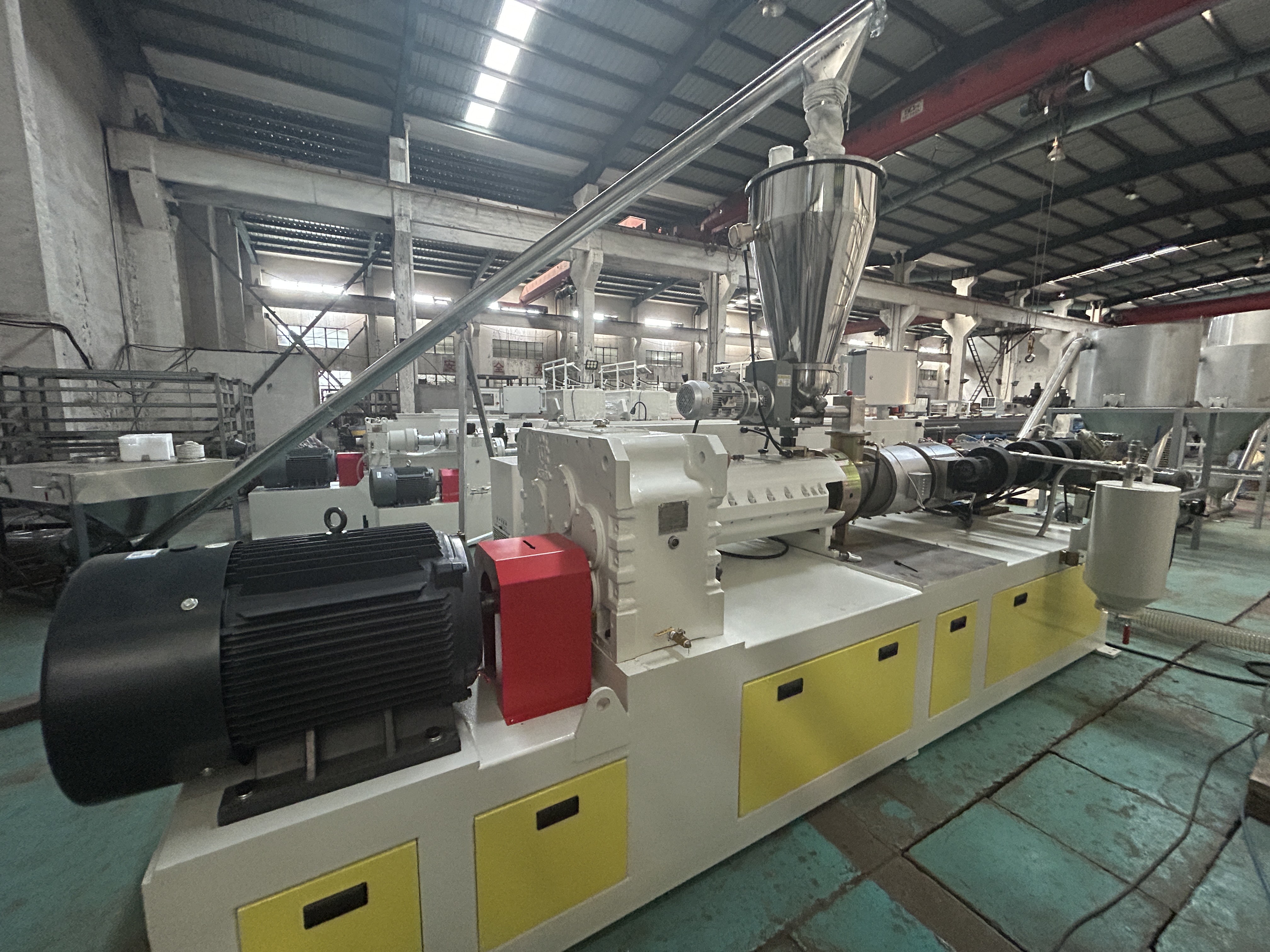

- Extruder kerucut berskru ganda, ideal untuk mengolah bubuk PVC secara efisien

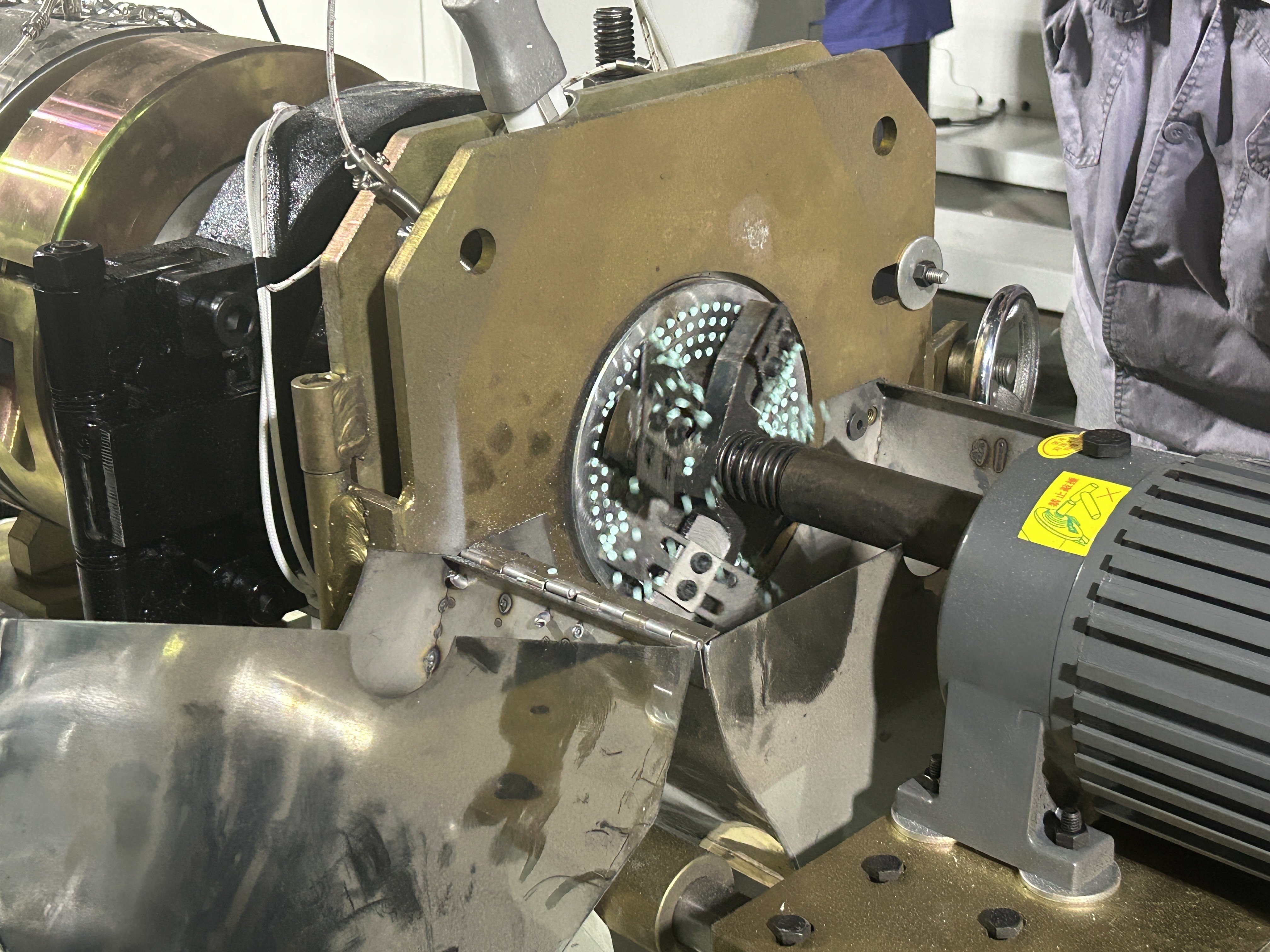

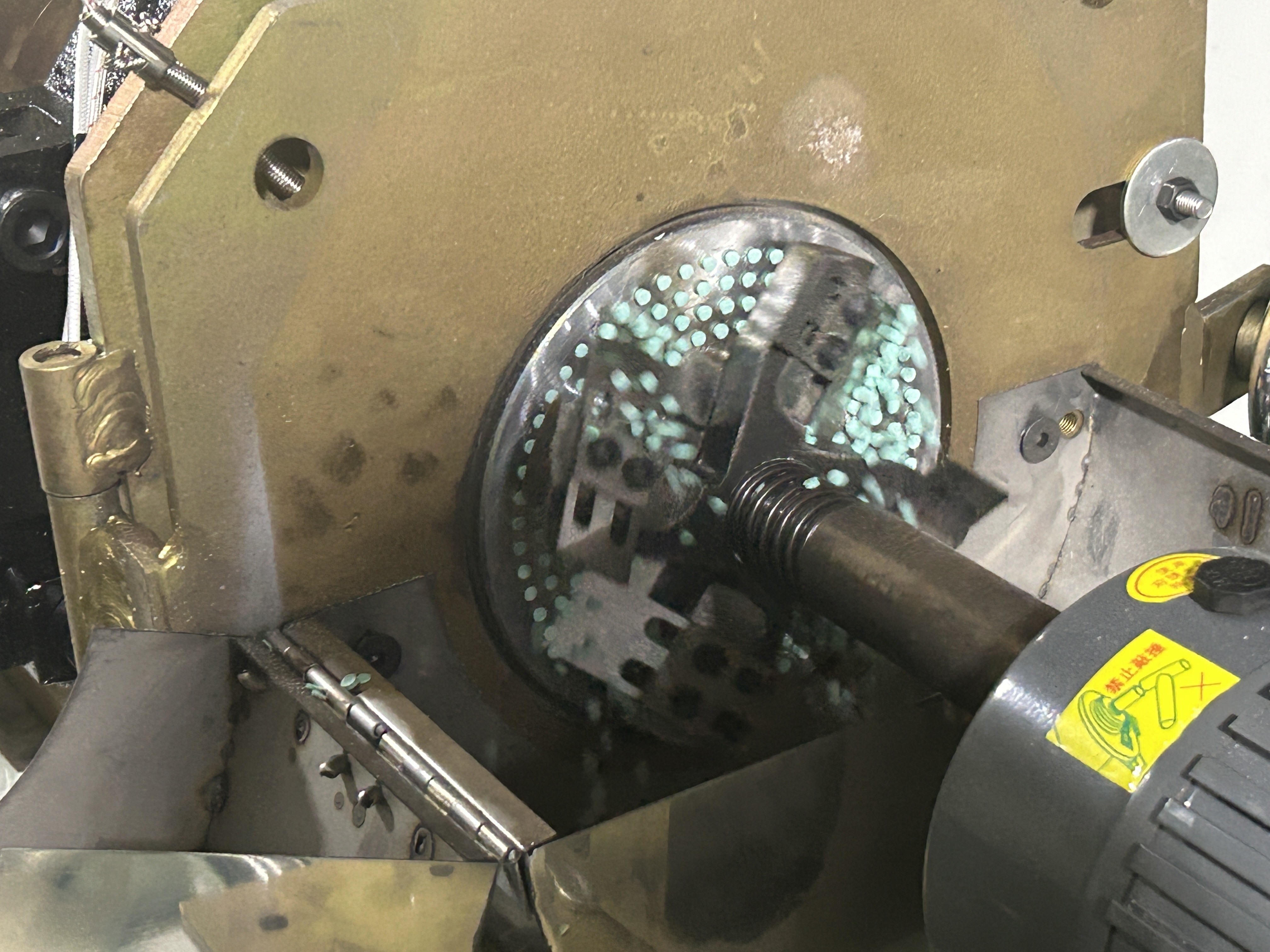

- Pemotongan panas pada permukaan cetakan memastikan pemotongan yang merata dan bentuk pelet yang konsisten

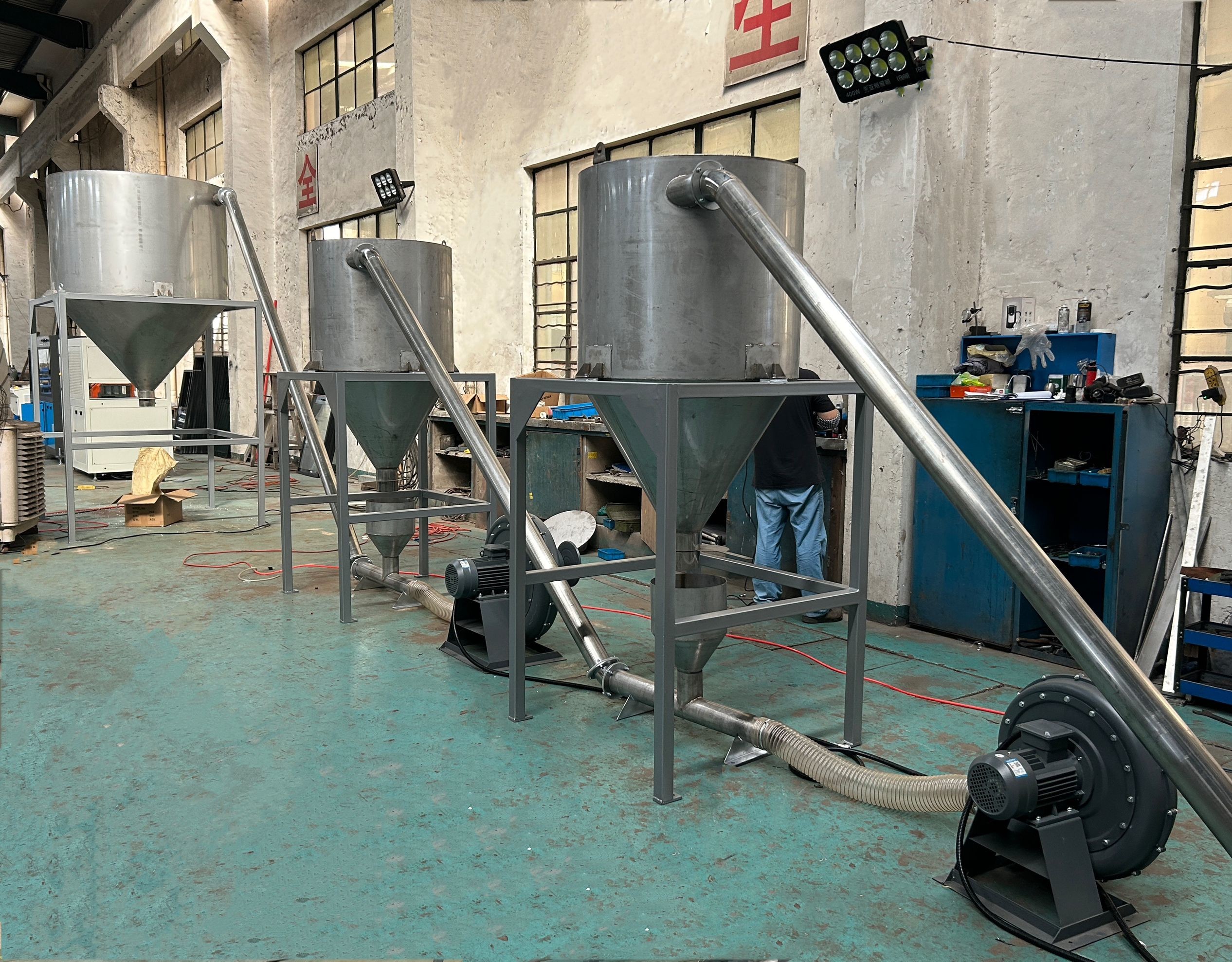

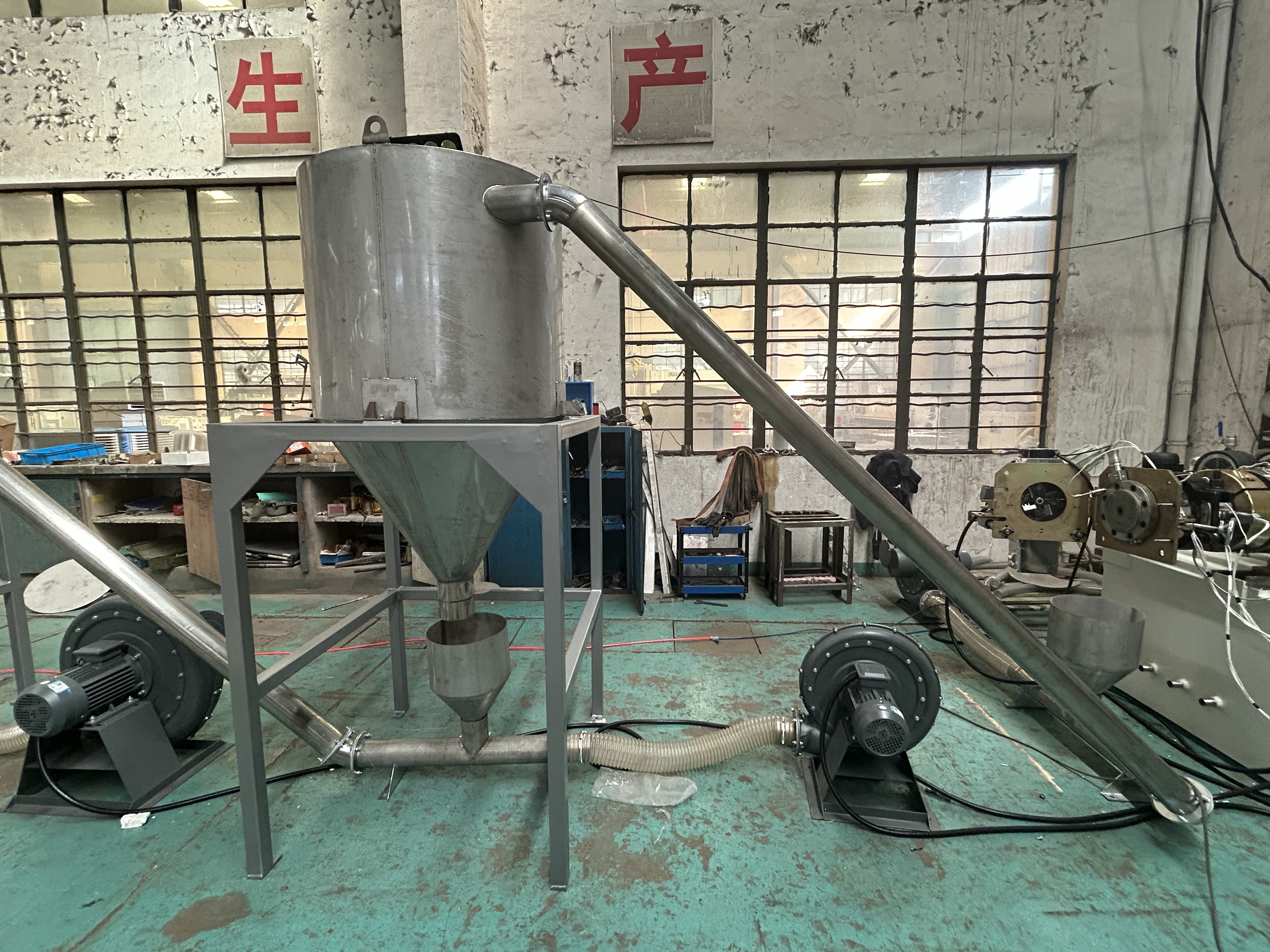

- Sistem bantu lengkap termasuk pendinginan pelet dan klasifikasi
| Nomor Model | Diameter sekrup (mm) | Kecepatan rotasi (rpm) | Ukuran pelet (mm) | Kekuatan mesin utama (kw) | Kekuatan Pemanasan (kw) | Kapasitas produksi (kg/jam) | Ketinggian pusat (mm) | Berat bersih | Ukuran keseluruhan (mm) |
|---|---|---|---|---|---|---|---|---|---|
| SJSZ45 | 45/90 | 1-45 | 3-4 | 15 | 9.6 | 70-80 | 1000 | 2800 | 3300*1200*2000 |
| SJSZ51 | 51/105 | 1-45.5 | 3-4 | 22 | 11.5 | 80-120 | 1000 | 3000 | 3360*1290*2100 |
| SJSZ55 | 55/110 | 1 sampai 40 | 3-4 | 22 | 18 | 150-180 | 1000 | 3500 | 3620*1350*2200 |
| SJSZ65 | 65/132 | 1-38 | 3-4 | 37 | 24 | 250 sampai 300 | 1000 | 4000 | 4235*1520*2450 |
| SJSZ80 | 80/156 | 1-36.9 | 3-4 | 55 | 36 | 320-450 | 1000 | 5000 | 4750*1550*2460 |
| SJSZ92 | 92/188 | 1-34.7 | 3-4 | 110 | 88 | 650-800 | 1000 | 5500 | 6000*1600*2500 |
Sorotan Produk
Mesin Pelletizing Plastik Hot Cutting PVC Hot Cutting Pelletizing Line / Mesin Granulating Plastik Aplikasi Dengan desain sekrup yang berbeda, mesin ini dapat menggranulasi bahan daur ulang termasuk PVC kaku, PVC lunak, dan limbah PVC.produksi tanpa henti dan fitur konversi pneumatik dengan angin ...
