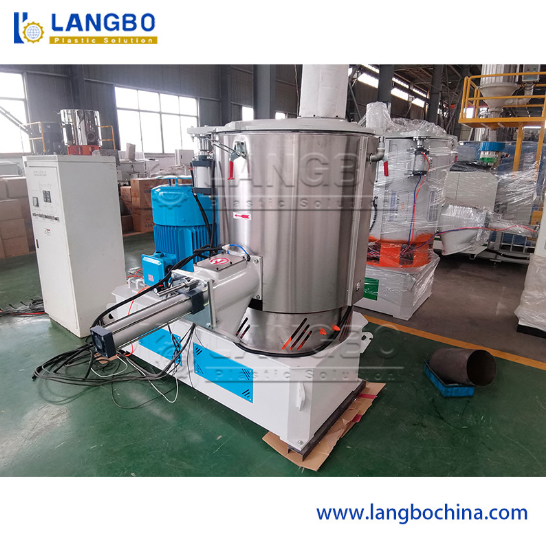

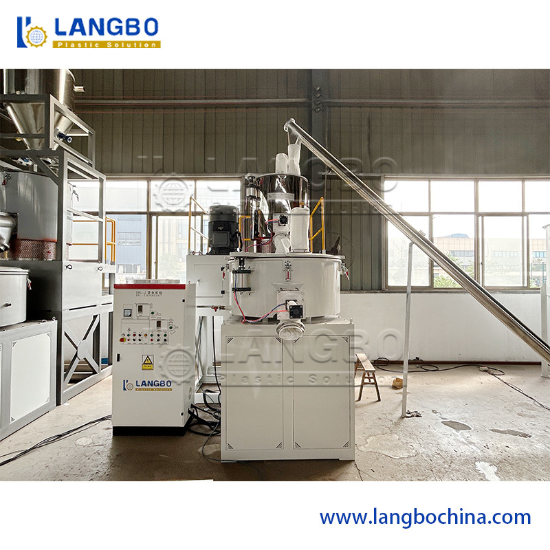

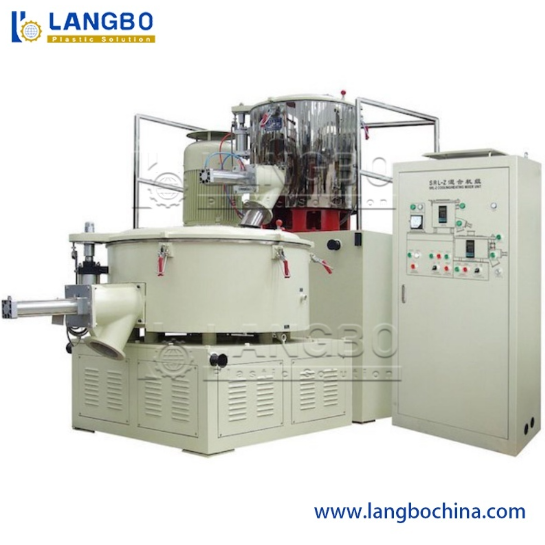

Mesin Pengaduk PVC | Kontrol Batch Stabil Pencampuran Geser Tinggi Suhu yang Dapat Disesuaikan
Detail Produk
| Pengaduk: | Kombinasi vertikal/horizontal | Kontrol: | Otomatis |
|---|---|---|---|
| Notor Power: | 83/110/22kw | Makanan: | Pneumatik otomatis |
| Nomor model: | SRL-Z | kekuatan (w): | 18.5-75kw |
| PENGIRIMAN: | Di laut | Bahan campuran: | PVC |
| Menyoroti |
Mesin pencampur PVC pencampuran geser tinggi,Mesin pencampur PVC kontrol suhu yang dapat disesuaikan,Mesin pencampur PVC pemrosesan batch yang stabil |
||
Deskripsi Produk
- Bilah terbuat dari baja tahan karat dengan penyempurnaan keseimbangan dinamis dan statis
- Tutup segel ganda dengan start pneumatik untuk pengoperasian yang mudah
- Silinder baja tahan karat dengan ketebalan dinding 8mm
- Kontrol suhu otomatis atau pelepasan kontrol waktu
- Inverter ABB untuk start motor dan pengaturan kecepatan
- Tipe kontrol langsung & stabil dengan layar tampilan analog
- Prosedur manufaktur otomatis mengurangi intensitas tenaga kerja dan biaya produksi
| Model | Kapasitas Total (L) | Kapasitas Pencampuran (kg/jam) | Daya Motor (kw) | Kecepatan Paddle (r/menit) |
|---|---|---|---|---|
| SRL-Z100/200 | 100/200 | 165 | 14/22/7.5 | 650/130/180 |
| SRL-Z200/500 | 200/500 | 325 | 30/42/11 | 475/950/130 |
| SRL-Z300/600 | 300/600 | 500 | 40/50/15 | 475/950/130 |
| SRL-Z500/1000 | 500/1000 | 750 | 47/67/15 | 430/860/60 |
| SRL-Z800/1600 | 800/1600 | 1400 | 60/90/18.5 | 370/740/50 |
| SRL-Z800/2500 | 800/2500 | 1400 | 80/110/30 | 370/740/50 |
| SRL-Z1000/3000 | 1000/3000 | 1900 | 110/160/37 | 325/650/50 |
| SRL-Z1300/4500 | 1300/4500 | 2500 | 132/200/45 | 250/500/50 |
- Garansi satu tahun untuk seluruh mesin
- Dukungan teknis 24 jam
- Layanan instalasi & komisioning di luar negeri tersedia
- Panduan pemeliharaan dan penyediaan suku cadang setelah masa garansi
- Layanan pelatihan operator
