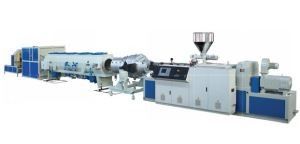

Garis ekstrusi pipa plastik hemat energi, kondisi baru Twin sekrup Extruders
Detail Produk
| Sumber Daya: | 380V 50HZ | Bagian listrik utama: | Schneider |
|---|---|---|---|
| Nomor model: | SJSZ | Kondisi: | Baru |
| Desain Sekrup: | sekrup kembar | Pembalik: | ABB |
| Menyoroti |
mesin extruder sekrup ganda,mesin ekstrusi plastik |
||
Deskripsi Produk
Aliran proses
PVC powder + additive → mixing → spring feeding → twin screw extruder → cetakan dan kalibrator → vacuum forming machine → haul off machine → mesin pemotong → rak pemakaian
Konfigurasi Sistem PVC Line Produksi Ekstrusi Pipa Ganda
(a) Mesin makan

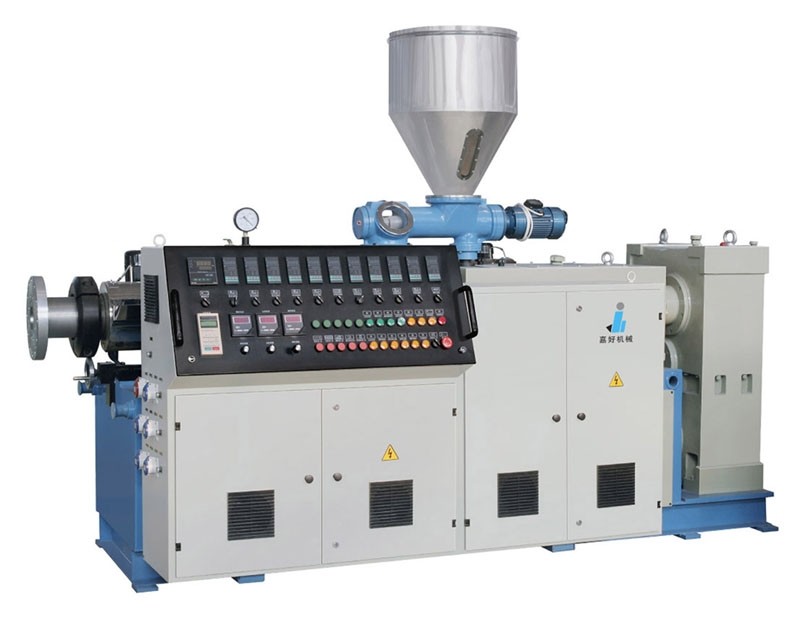

(b) Ekstruder sekrup ganda kerucut
(c) Mold
(d) Tangki Kalibrasi Vakum
(e) Mengesampingkan mesin
(f) Mesin cetak
(g) Mesin pemotong pipa
(h) Kerangka tumpukan pipa
(i) Mesin bantu seperti mesin pengumpan, pembengkok dan penghancur.
Parameter teknis
| Nomor model | PVC-16/63 | PVC-20/110 | PVC-50/160 | PVC-75/250 | PVC-110/315 | PVC-200/450 | PVC-315/630 | PVC-500/800 |
| Diameter pipa | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm | 500-800mm |
| Keluaran maksimal | 120 kg / jam | 120 kg / jam | 180kg / jam | 300kg / jam | 450 kg / jam | 650kg / jam | 800kg / jam | 1400kg / jam |
| Tingkat produksi | 1,5-15 m / mnt | 0,8-8 m / mnt | 0,5-5m / mnt | 0,4-4m / mnt | 0,3-2m / mnt | 0,1-1m / mnt | 0,07-0,7m / mnt | 0,05-1 m / mnt |
| Model extruder | SJZ-50/105 | SJZ-50/105 | SJZ-55/110 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 | SJZ-92/188 | SJZ-105/220 |
| Daya terpasang | 45kw | 45kw | 55kw | 75kw | 105kw | 160kw | 205kw | 305kw |
| Tinggi tengah | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm | 1350mm |
| Area instalasi | 22 * 2,5 * 2,0 m | 24 * 2,8 * 2,0 m | 24 * 2,8 * 2,0 m | 30 * 2.8 * 2.2m | 35 * 3,0 * 2,4 m | 36 * 3,0 * 2,4 m | 38 * 3,2 * 2,8 m | 42 * 3,5 * 3,2 m |
Aplikasi Utama
1. Pasokan air dan saluran pipa drainase di gedung;
2. Saluran pipa drainase air hujan di gedung;
3. Pipa kabel listrik di gedung;
4. Sistem air kondensat AC.
Sorotan Produk
PVC Plastik Ganda Pipa Ekstrusi Line Produksi dengan Conical Twin Screw Extruder Aliran proses PVC powder + additive → mixing → spring feeding → twin screw extruder → cetakan dan kalibrator → vacuum forming machine → haul off machine → mesin pemotong → rak pemakaian Konfigurasi Sistem PVC Line ...
