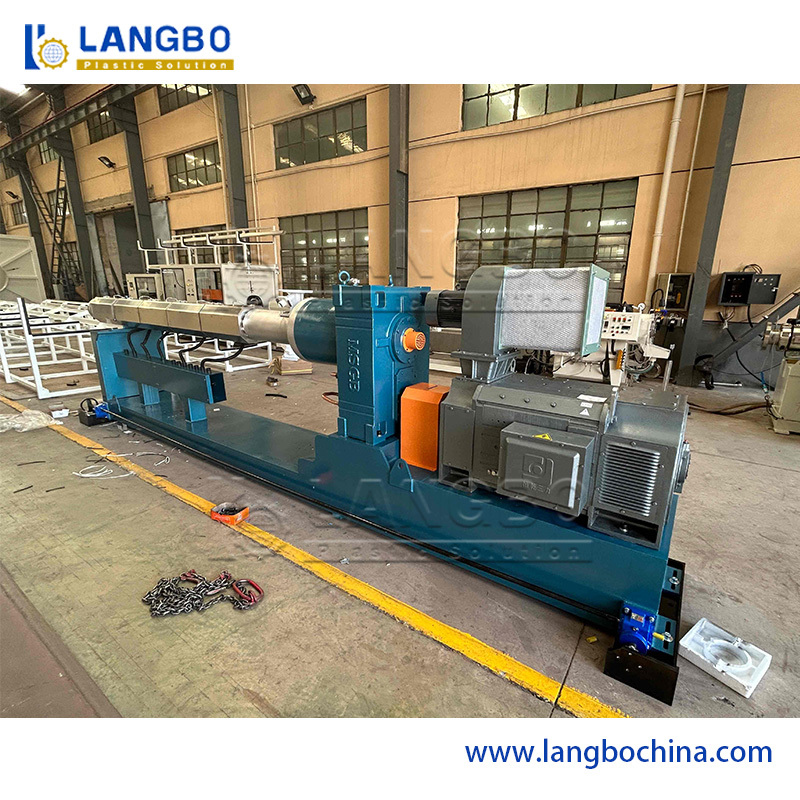

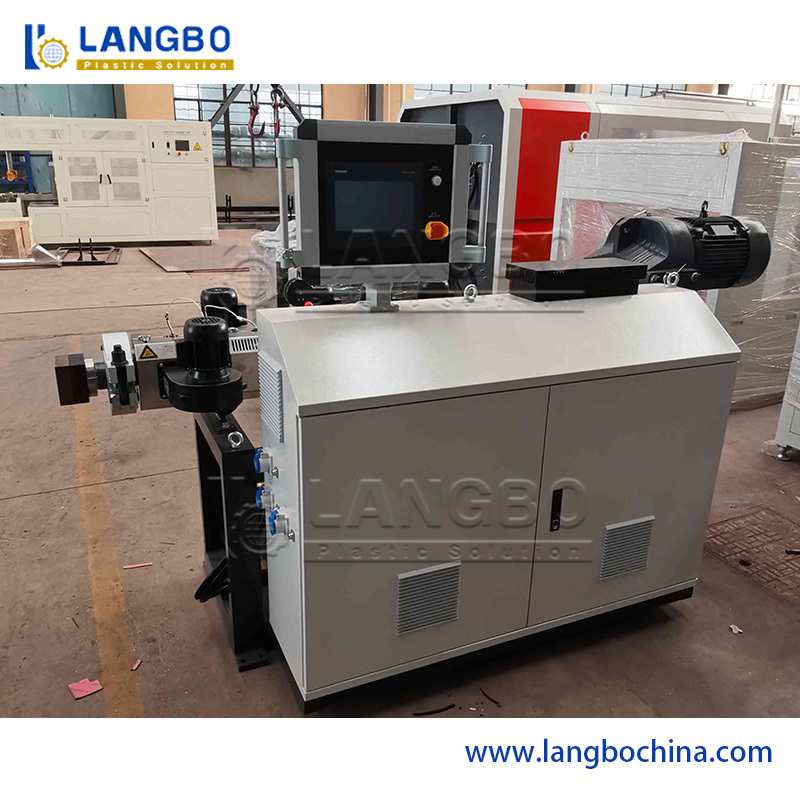

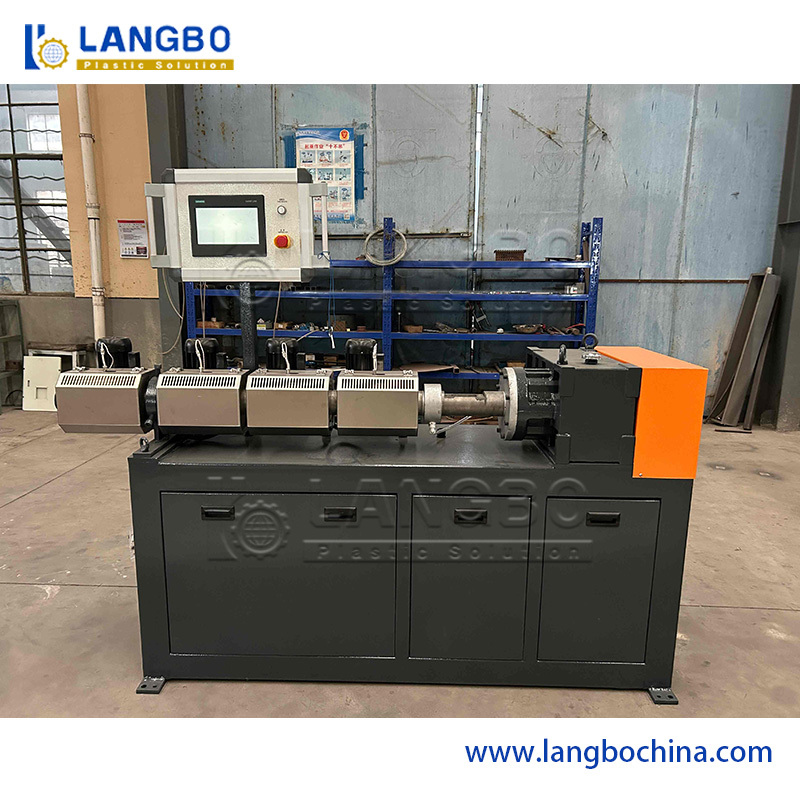

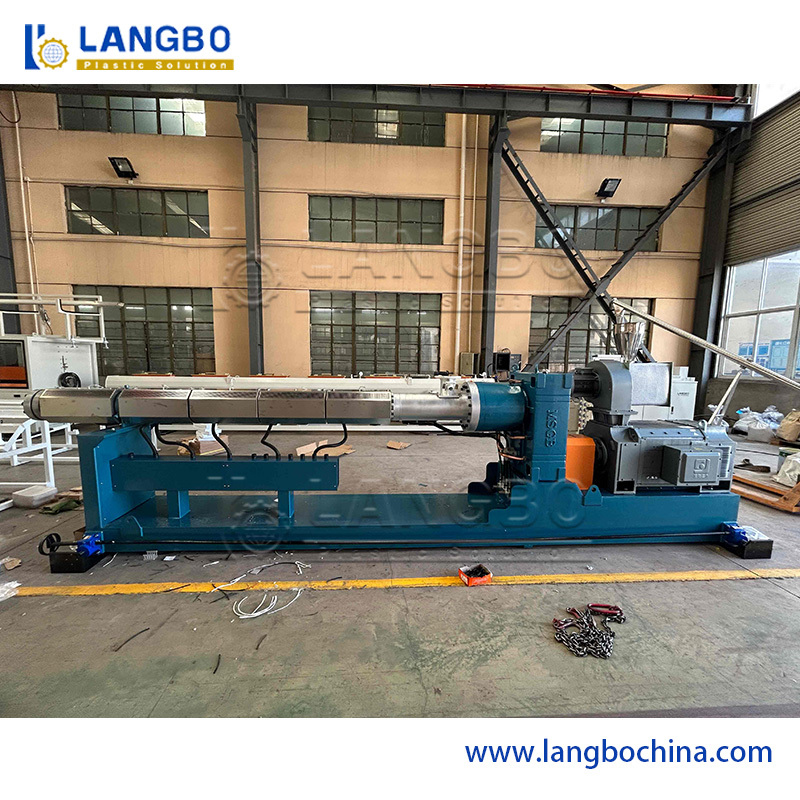

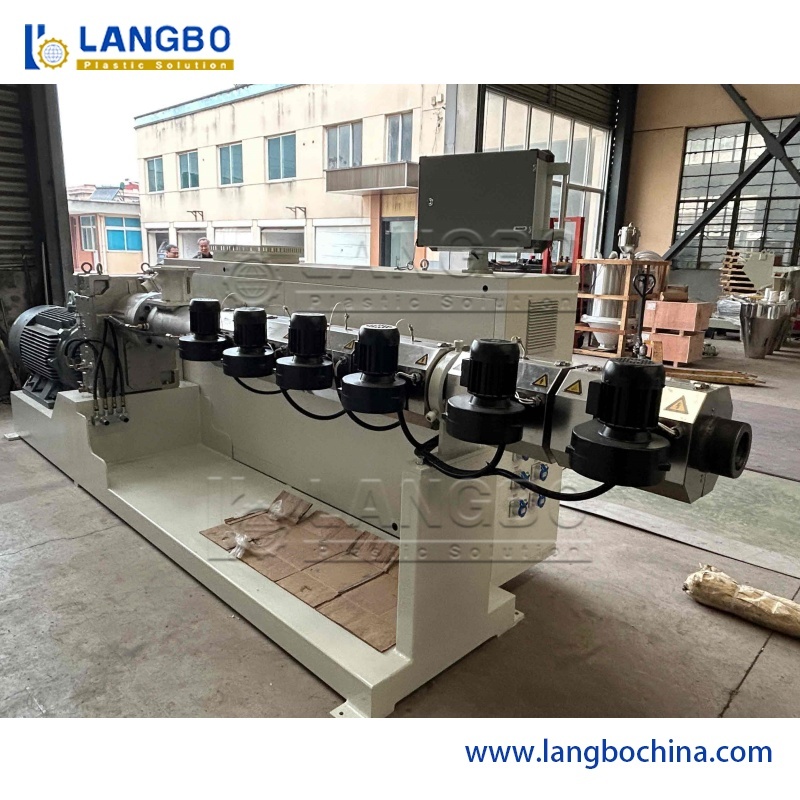

Plastik Single Screw Extruder 150 - 1500KG / H Kecepatan Untuk Pipa Limbah PE
Detail Produk
| Desain Sekrup: | lajang | Nilai Otomatis: | Otomatis |
|---|---|---|---|
| Aplikasi: | Pipa | Plastik Diproses: | PP PE |
| Kapasitas: | 150-1500kg/jam | Diameter: | 16-1600mm |
| Menyoroti |
mesin extruder sekrup tunggal,mesin extruder plastik |
||
Deskripsi Produk
- Tipe: PP/PE pipa air dan gas pasokan extruder, PP/PE pipa drainase mesin
- Jenis proses: Mesin ekstrusi pipa listrik
- Bahan pipa: PP, PE
- Aplikasi: Sistem pipa pasokan air dan gas
- Jangkauan diameter: 16-1600mm
- Kapasitas produksi: 150-1500KG/jam
- Penggunaan: Pengeboran konstruksi dan kota, pipa gas luar, irigasi pertanian, pipa threading, kawat, kabel dan kabel optik, sistem drainase
| Model | Diameter pipa (mm) | Model ekstruder | Kecepatan sekrup (r/menit) | Kecepatan produksi (m/menit) | Output (kg/jam) | Kekuatan (kw) |
|---|---|---|---|---|---|---|
| SSG-32PR | Ø16-32 | SSJ-45 | 40-100 | 4-10 | 100 | 50 |
| SSG-63PR | Ø16-63 | SSJ-65 | 40-100 | 4-10 | 150 | 65 |
| SSG-63PR | Ø16-63 | SSJ-65 | 40-100 | 4-10 | 150 | 100 |
| SSG-160PR | Ø75-160 | SSJ-90 | 30-90 | 2-8 | 200 | 150 |
- Sistem drainase konstruksi dan kota, pipa gas luar ruangan
- Sistem irigasi pertanian
- Pipa benang untuk instalasi kawat, kabel dan kabel optik
- Sistem pipa drainase
- Proyek transportasi antar kota dan pasokan air kota
- Sistem pasokan air bertekanan tinggi lubang bor
- Pengangkutan minyak mentah dan gas alam
- Pengadaan air dan drainase kehidupan sehari-hari
- Infrastruktur pembangkit listrik dan pembangkit kimia
- Proyek pembangunan perkotaan
| Model | SJ65/30-33 | SJ75/30-33 |
|---|---|---|
| Diameter pipa | Φ20-63 | Φ90-200 |
| Sekrup Dia. & lebar pita | Φ65,33:1; Φ65,30:1 | Φ75,33:1; Φ75,30:1 |
| Output | 120kg/jam | 220kg/jam |
| Kecepatan linier (max) | 10m/menit | 4m/menit |
| Kemampuan Pemasangan | 58 | 85 |
| Produktivitas per tahun (meter) | 350 | 150 |
- Kecepatan ekstrusi tinggi untuk throughput maksimum
- Plastisasi yang efektif memastikan kualitas material yang unggul
- Kemampuan tiga co-extruding mati untuk produksi serbaguna
- Biaya operasi dan pemeliharaan yang rendah
Sorotan Produk
Plastik Single Screw Extruder 150-1500KG/H untuk pipa limbah PE Ekstruder sekrup plastik berkinerja tinggi yang dirancang untuk produksi pipa limbah PE yang efisien dengan kapasitas output mulai dari 150 hingga 1500 kg per jam. Rincian Cepat Tipe: PP/PE pipa air dan gas pasokan extruder, PP/PE pipa ...
