Mesin ekstrusi pipa PVC keluaran tinggi, jalur produksi pipa pvc ulir ganda 80kg / j
Detail Produk
| Kemasan rincian: | film | Konsep sekrup: | sekrup kembar berbentuk kerucut |
|---|---|---|---|
| diameter sekrup: | 51/105 | kecepatan maksimum: | 40 |
| tinggi tengah: | 1050 | Sertifikat: | ISO CE |
| Pelabuhan Pengiriman: | Shanghai | Voltase: | Disesuaikan |
| Nilai otomatis: | otomatis penuh | Aplikasi: | Pipa |
| Layanan purna jual disediakan: | Insinyur tersedia untuk melayani mesin di luar negeri, Instalasi lapangan, commissioning dan pelatih | Jaminan: | 1 tahun |
| Inverter: | ABB | Warna: | Dapat disesuaikan |
| Bahan baku: | Bubuk PVC | Motor: | Merek |
| Kekuasaan: | 18.5kw | ||
| Menyoroti |
mesin pembuat tabung plastik,jalur produksi pipa pvc |
||
Deskripsi Produk

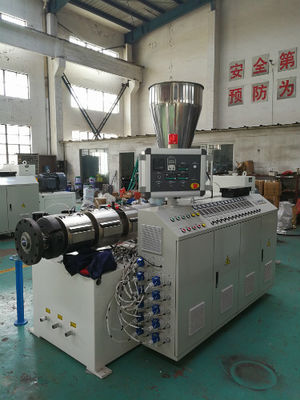

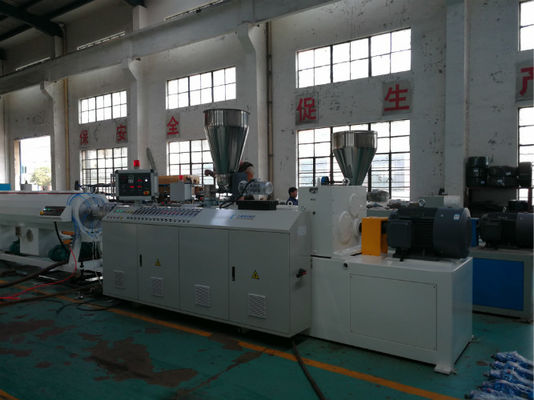

Lini Produksi Mesin Ekstrusi Pipa PVC Output Tinggi Sekrup Kembar 80kg / jam
SJSZ51/105 ekstruder sekrup kembar kerucut untuk pipa / profil
1. motor: 18.5kw
2. kapasitas: 80kg / jam
3. digunakan untuk pipa / profil / pelat pvc
4. CE & ISO SJSZ 51/105 ekstruder sekrup ganda
Fitur:
1) Output tinggi, konsumsi daya rendah, gesekan lebih sedikit, geser lebih rendah
tingkat dan ekstrusi paksa
2) Dilengkapi dengan kontrol suhu otomatis, unit degassing, dan
pengaturan kecepatan arus searah
3) Cocok untuk memproses bubuk campuran kering PVC menjadi pipa, profil,
dan lembaran
Parameter teknis utama.
| Model. | SJSZ45/90 | SJSZ51/105 | SJSZ55/110 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
| Daya transmisi (kw) | 15. | 18.5 | 22 | 37 | 55 | 110 |
| Diameter sekrup (mm) | 45/Φ90 | 51/Φ105 | 55/Φ110 | 65/Φ132 | 80/Φ156 | 92/Φ188 |
| Kuantitas sekrup: | 2. | 2 | 2 | 2 | 2 | 2 |
| Kecepatan rotasi (r / mnt) | 45 | 40 | 38 | 38 | 37 | 36 |
| Torsi Sekrup Nm | 3148 | 6000 | 7000 | 10000 | 14000 | 32000 |
| Kapasitas Ekstrusi (kg / jam) | 70 | 100 | 150 | 250 | 400 | 750 |
| Tinggi tengah (mm) | 1000 | 1000 | 1000 | 1000 | 1100 | 1200 |
| Lx L x T (mm) |
3360x1290 x2000 |
3360x1290 x2100 |
3620x1050 x2200 |
3715x1520 x2450 |
4750x1550 x2460 |
67250x1550 x2500 |
