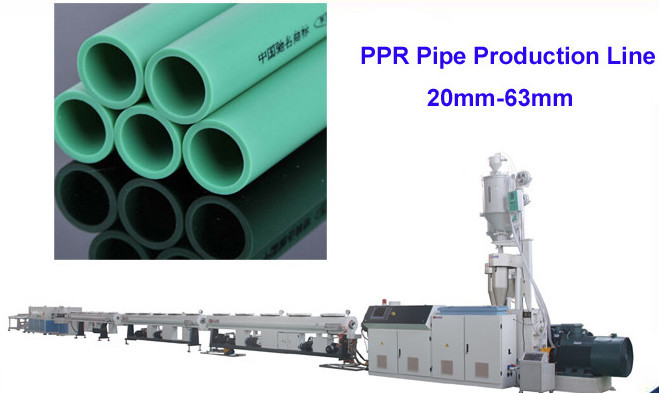

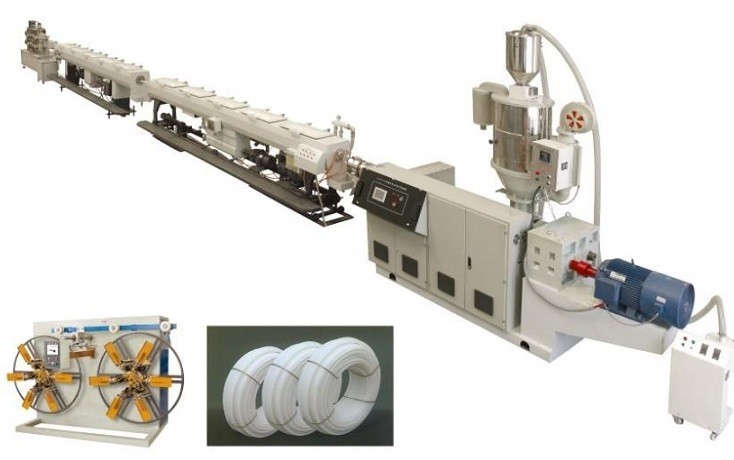

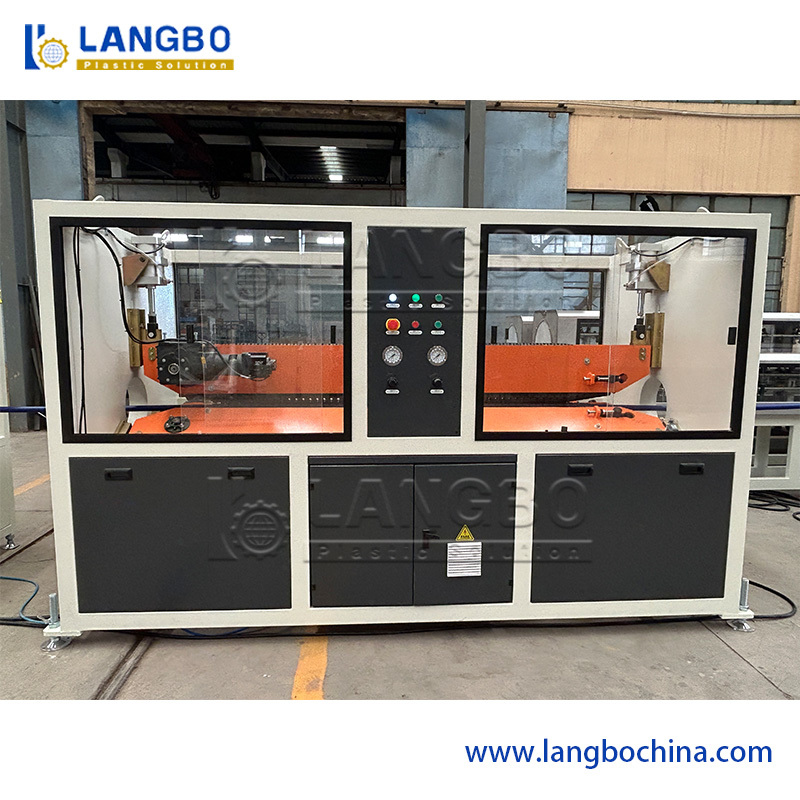

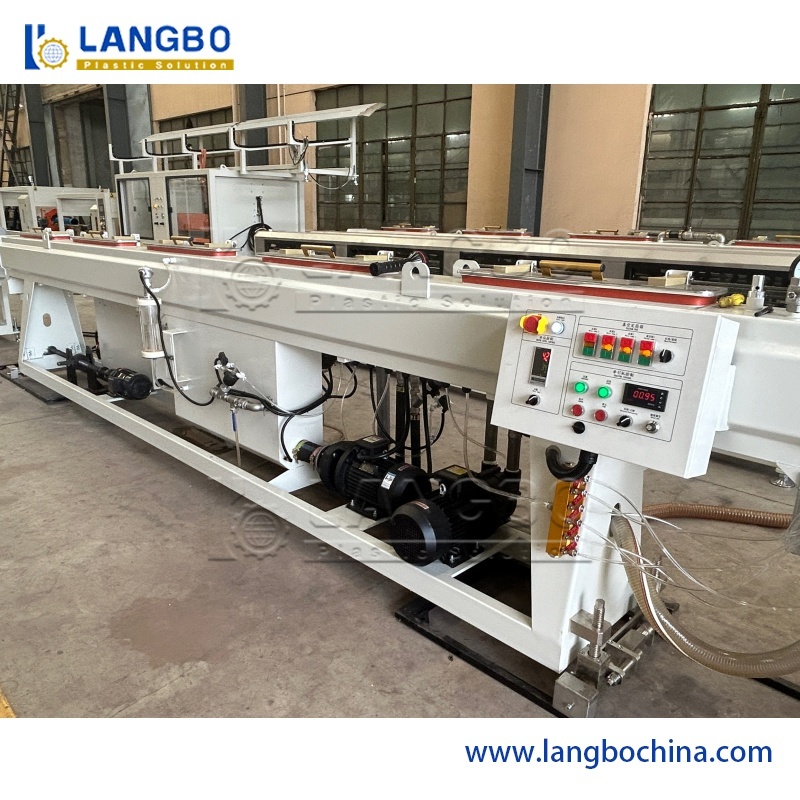

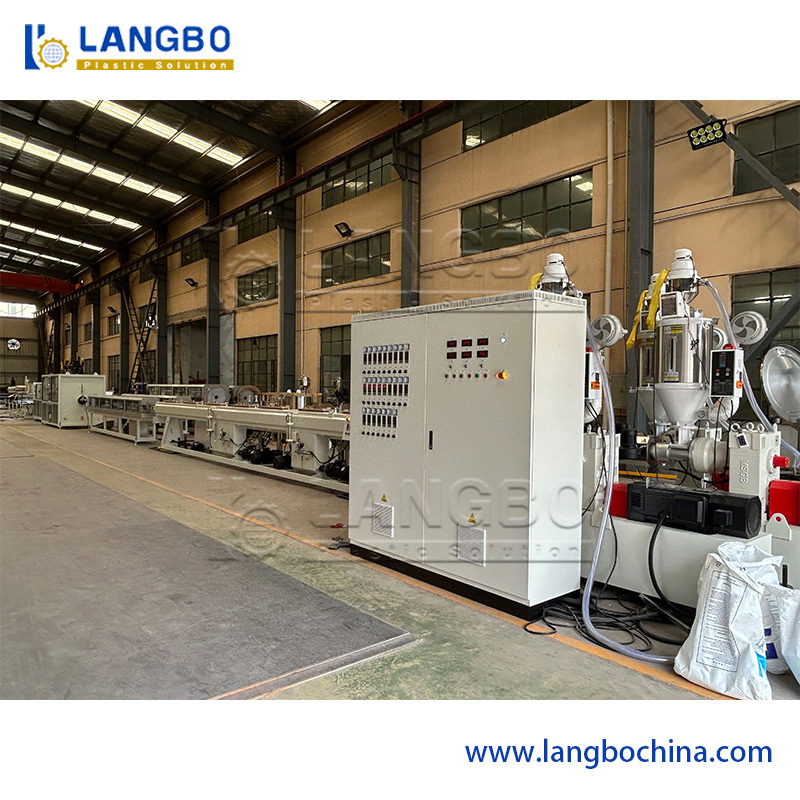

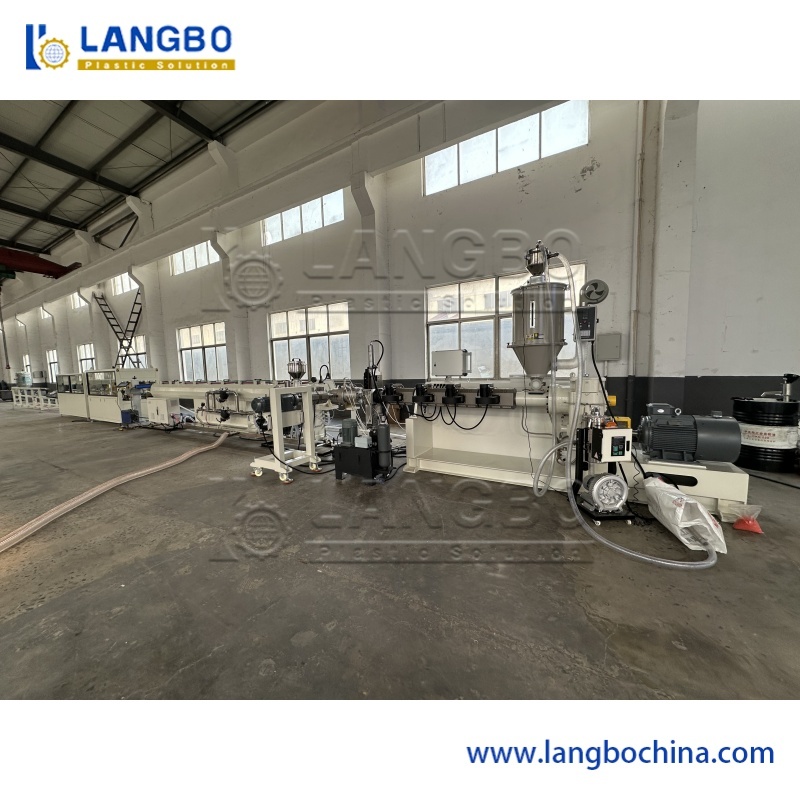

Automatic Single Screw PPR Pipe Extrusion Line Dengan Konsumsi Daya Rendah
Detail Produk
| Menyoroti |
lini produksi pipa ppr,mesin pembuat pipa cpvc |
||
|---|---|---|---|
Deskripsi Produk

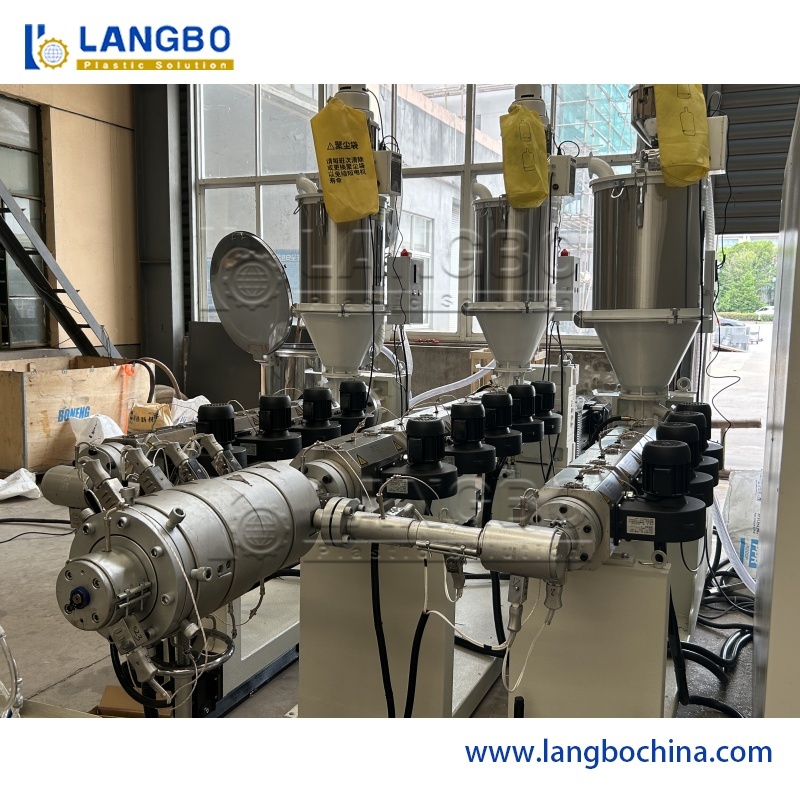

- Terdiri dari sekrup barel, sistem transmisi gigi, pakan terukur, gas vakum, pemanasan, pendinginan dan komponen kontrol elektronik
- Sekrup yang dibuat oleh penggiling sekrup digital khusus dengan presisi tinggi untuk properti ekstrusi yang sangat harmonis
- Teknik produksi sekrup pitch dan kedalaman variabel canggih untuk pemotongan dan pemotongan material yang lebih lunak
- Kotak distribusi yang dirancang khusus dengan bantalan daya tarik yang diimpor sepenuhnya untuk jangka hidup penggerak yang diperpanjang
- Mengandung penggerak gigi yang ditandai dengan kebisingan rendah, operasi yang stabil, kapasitas bantalan yang tinggi dan umur panjang
- Desain canggih dengan output yang tinggi, plasticization yang sangat baik dan konsumsi energi yang rendah
| Nama produk | Diameter sekrup (mm) | L/D | Kekuatan motor kW | Kecepatan sekrup (r/menit) | Kekuatan maksimum (kg/jam) |
|---|---|---|---|---|---|
| SJ25/25 | 25 | 25:1 | 1.5 | 100 | 3.4 |
| SJ30/25 | 30 | 25:1 | 5.5 | 125 | 12.5 |
| SJ45/25 | 45 | 25:1 | 7.5 | 100 | 20 |
| SJ45/30 | 45 | 30:1 | 15 | 145 | 40 |
| SJ45/30 | 45 | 30:1 | 30 | 185 | 120 |
| SJ65/25 | 65 | 25:1 | 22 | 100 | 60 |
| SJ65/30 | 65 | 30:1 | 30 | 105 | 80 |
| SJ65/30 | 65 | 30:1 | 45 | 120 | 120 |
| SJ75/30 | 75 | 30:1 | 90 | 120 | 350 |
| SJ90/25 | 90 | 25:1 | 55 | 120 | 150 |
| SJ90/30 | 90 | 30:1 | 90 | 94 | 250 |
| SJ120/25 | 120 | 25:1 | 90 | 94 | 350 |
| SJ120/30 | 120 | 30:1 | 110 | 94 | 350 |
| SJ120/33 | 120 | 33:1 | 250 | 94 | 800 |
| SJ150/30 | 150 | 30:1 | 132 | 50 | 350 |
