Kerucut PPR Pipa Ekstrusi Garis Twin Screw Online Pipe Weight Metering
Detail Produk
| Kondisi: | Baru | Otomatis: | Otomatis penuh |
|---|---|---|---|
| Plastik Diproses: | PPR | ekstruder: | Twin-Screw |
| Ekstrusi Untuk: | PIPA, Profil | Kemasan rincian: | Tanpa paket atau kayu |
| Menyoroti |
lini produksi pipa ppr,mesin pembuat pipa cpvc |
||
Deskripsi Produk

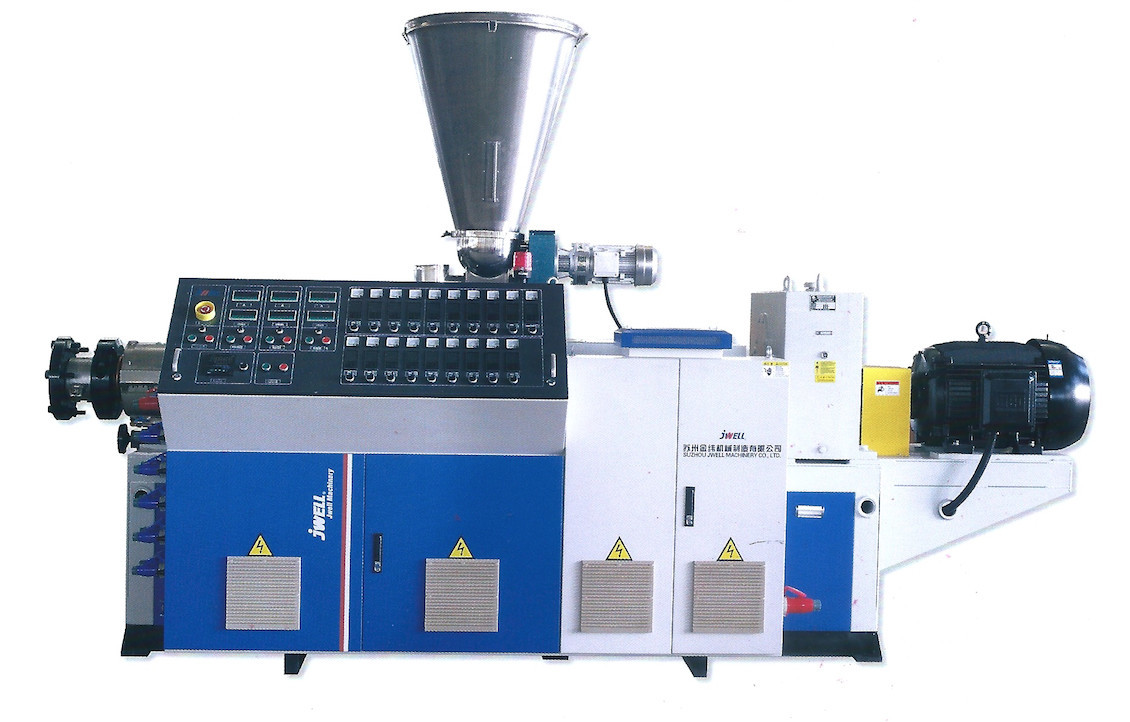

Garis produksi pipa PPR kerucut Twin Screw Online Pipe Weight Metering
Deskripsi:
| Parameter teknis utama | |||||||
| Untuk ekstrusi pipa | |||||||
| Model | SJZ-55 | SJZ-65 | SJZ-80 | SJZ-80A | SJZ-92 | SJZ-95 | SJZ-110 |
| Dia (mm) | 55/110 | 65/132 | 80/156 | 80/173 | 92/188 | 95/192 | 110/220 |
| Kecepatan (rpm) | 45 | 45 | 34.7 | 37.6 | 34.7 | 34.7 | 40.1 |
| Motor (Kw) | 22/30 | 37 | 55 | 75 | 110 | 132 | 160 |
| Kapasitas (kg/jam) | 180 | 380 | 500 | 680 | 800 | 1000 | 1350 |
| Ketinggian pusat (mm) | 1050 | 1050 | 1050 | 1050 | 1100 | 1100 | 1200 |
| Berat (kg) | 3500 | 4000 | 5500 | 6000 | 8000 | 9000 | 11000 |
| Dimensi (m) | 3.6x1.1x2.1 | 4.2x1.5x2.4 | 4.7x1.5x2.4 | 3.9x1.6x2.5 | 6x1.6x2.5 | 6.5x1.6x2.5 | 7.5x2.2x2.5 |
| Parameter teknis utama | |||||||
| Untuk ekstrusi profil | |||||||
| Model | SJZ-45 | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-72 | SJZ-80 | SJZ-92 |
| Dia (mm) | 45/100 | 51/105 | 55/110 | 65/132 | 72/152 | 80/156 | 92/188 |
| Kecepatan (rpm) | 34.7 | 34.7 | 34.7 | 34.7 | 39.1 | 25 | 25 |
| Motor (Kw) | 15 | 18.5 | 22 | 30/37 | 45 | 55 | 90 |
| Kapasitas (kg/jam) | 80 | 100 | 150 | 250 | 320 | 360 | 600 |
| Ketinggian pusat (mm) | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 | 1100 |
| Berat (kg) | 3000 | 3000 | 3500 | 4000 | 4500 | 5500 | 8000 |
| Dimensi (m) | 3.3x1.2x2.1 | 3.6x1.1x2.1 | 3.6x1.1x2.1 | 4.2x1.5x2.4 | 3.8x1.5x2.4 | 4.7x1.5x2.4 | 6x1.6x2.5 |
Bagian lain yang membantu saluran pipa:
- Sekrup dan tong: Gunakan merek sekrup terbaik China yang didirikan pada tahun 1978 yang memiliki 40 tahun pengalaman profesional dalam produksi tong sekrup.Tawaran sekrup tunggal, tong berkerut ganda juga memiliki desain khusus yang disesuaikan.
- Online Pipe Weight Metering And Monitoring System: Peralatan pengukuran gravitasi digunakan dalam proses ekstrusi yang dapat menghemat konsumsi bahan baku sejauh mungkin dan mengurangi limbah boot.Keakuratan kontrol kurang dari ± 0.3%.
- Pipe Socketing Machine: Mesin ini dapat digunakan untuk beling pipa PVC / PP solid wall, pipa bergelombang double-wall.
- Mixers: Mengadopsi kontrol PLC. Ini terutama diterapkan pada proses bahan, pencampuran, pewarnaan, pengeringan dan devolatilization dari berbagai resin seperti polivinil klorida.
- Crusher: Penghancuran sisa-sisa selama produksi pipa daur ulang dan produk tidak konvensional yang diproduksi selama produksi uji coba.Ada crusher dengan penggunaan yang berbeda dan spesifikasi untuk memilih bentuk.
