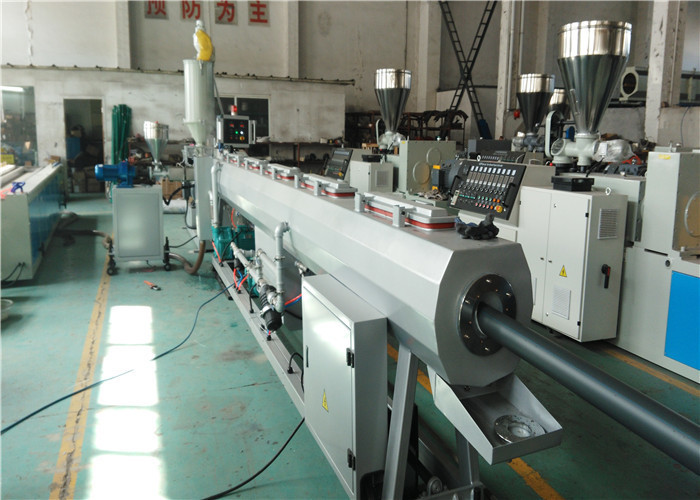

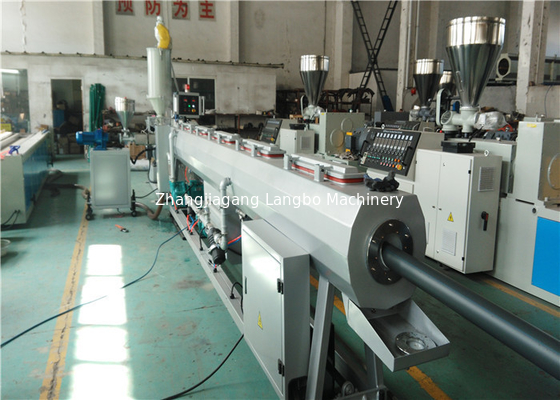

CPVC Pvc Pipe Extruder 75 - 250mm Plastic Pipe Line Produksi
Detail Produk
| Tipe ekstruder: | Pengekstrusi kembar berbentuk kerucut | Kemasan: | Paket Kotak Kayu dan Film |
|---|---|---|---|
| bahan mentah: | Butiran atau bubuk PVC | Aplikasi: | pipa pasokan air, saluran listrik |
| Pembalik: | ABB | kotak roda gigi: | merek terkenal Cina |
| Berat: | Kurang 10 ton | Sensor Suhu: | OMRON |
| Tarik: | Tiga mesin pengangkut ulat | Pemotong: | Pemotong Gergaji |
| Menyoroti |
Garis produksi pipa plastik 250 mm,Pengekstrusi pipa PVC plastik,Extruder pipa PVC CPVC |
||
Deskripsi Produk
| Model | LB63 | LB110 | £ 250 | LB315 | LB630 | LB800 |
|---|---|---|---|---|---|---|
| Diameter pipa | 20-63mm | 20-110mm | 75-250mm | 110-315mm | 315-630mm | 500-800 mm |
| Model ekstruder | SJ65 | SJ75 | SJ90 | SJ90 | SJ120 | SJ120+SJ90 |
| Kekuatan motor | 37kw | 55kw | 90kw | 160kw | 280kw | 280KW + 160KW |
| Kapasitas Ekstrusi | 100 kg/jam | 150kg | 220kg | 400kg | 700kg | 1000kg |

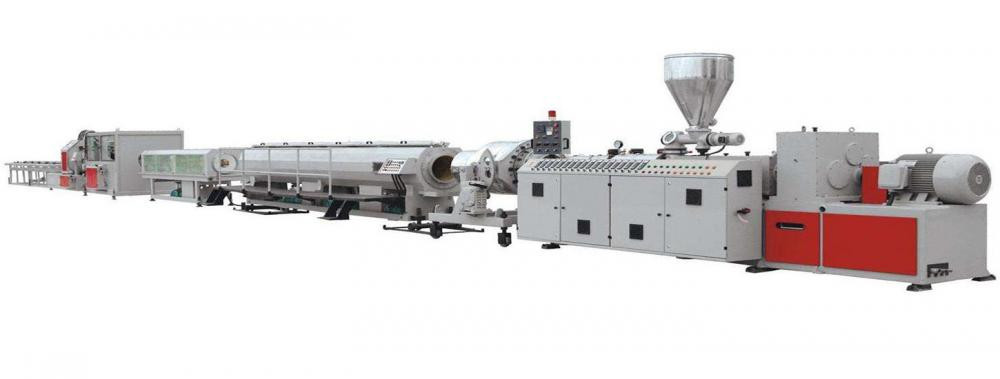

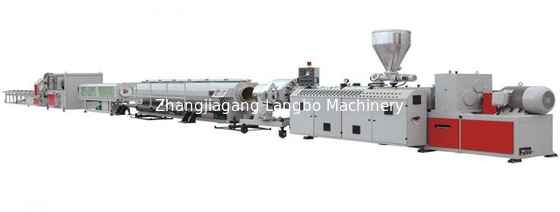

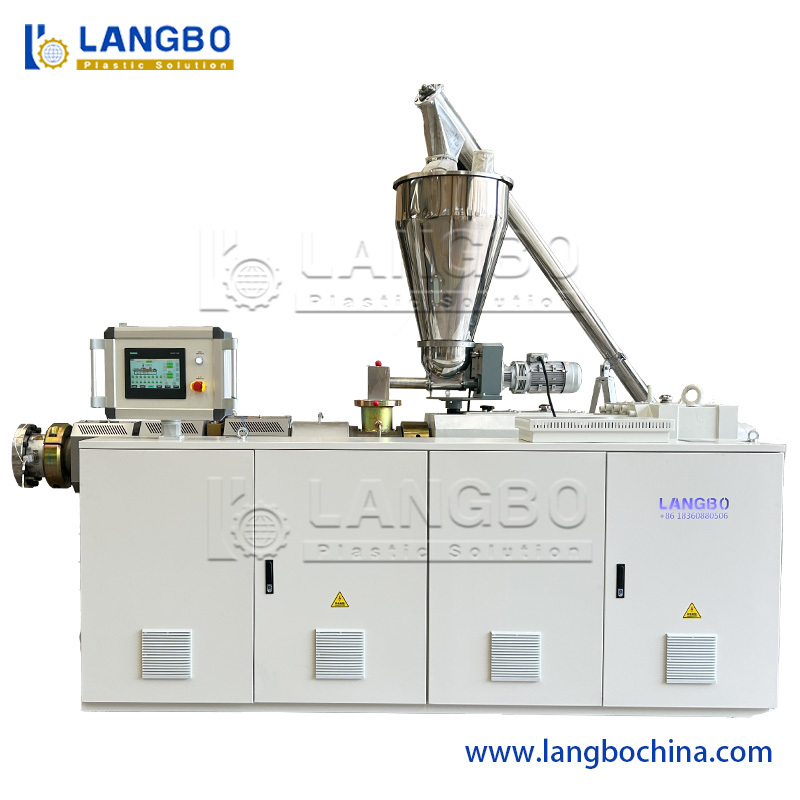

- Bubuk PVC + aditif → Campuran → Bahan pengumpan → Ekstruder sekrup kembar

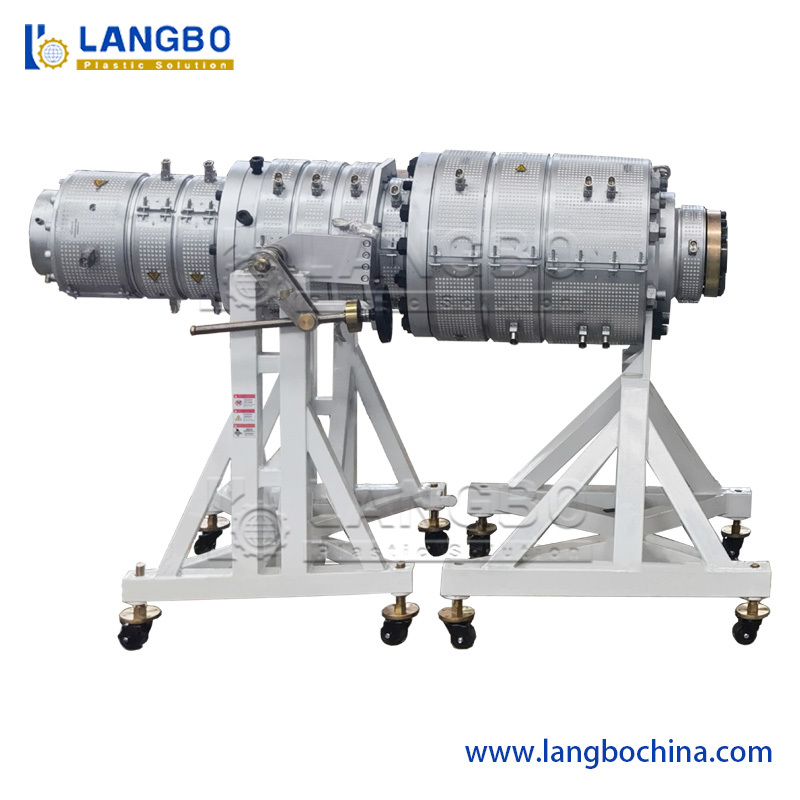

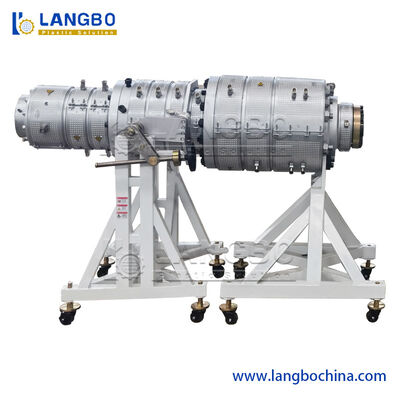

- Cetakan dan kalibrator → Mesin penggambar vakum → Mesin pendingin semprot

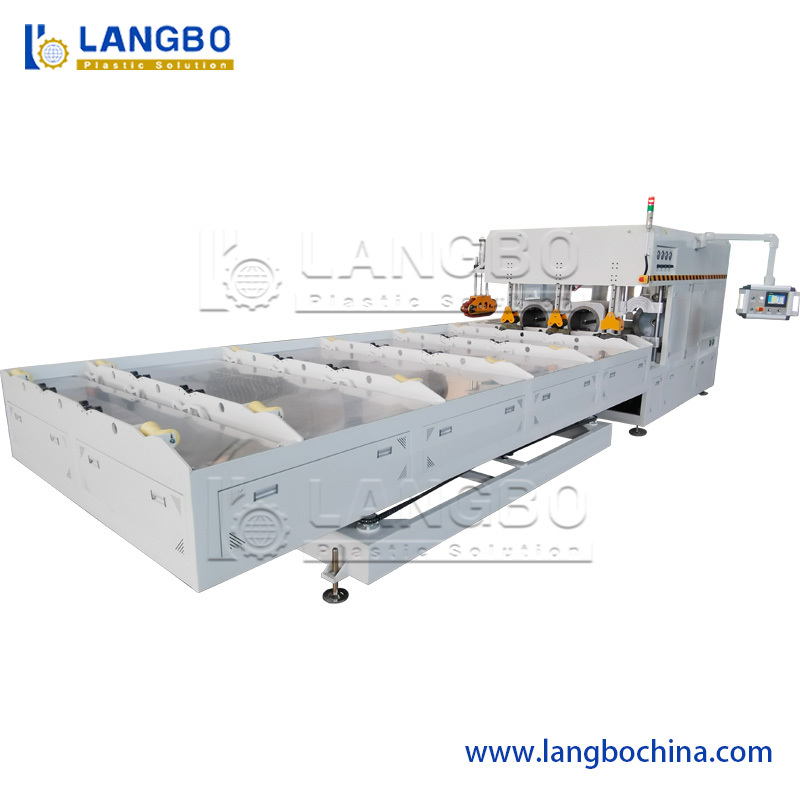

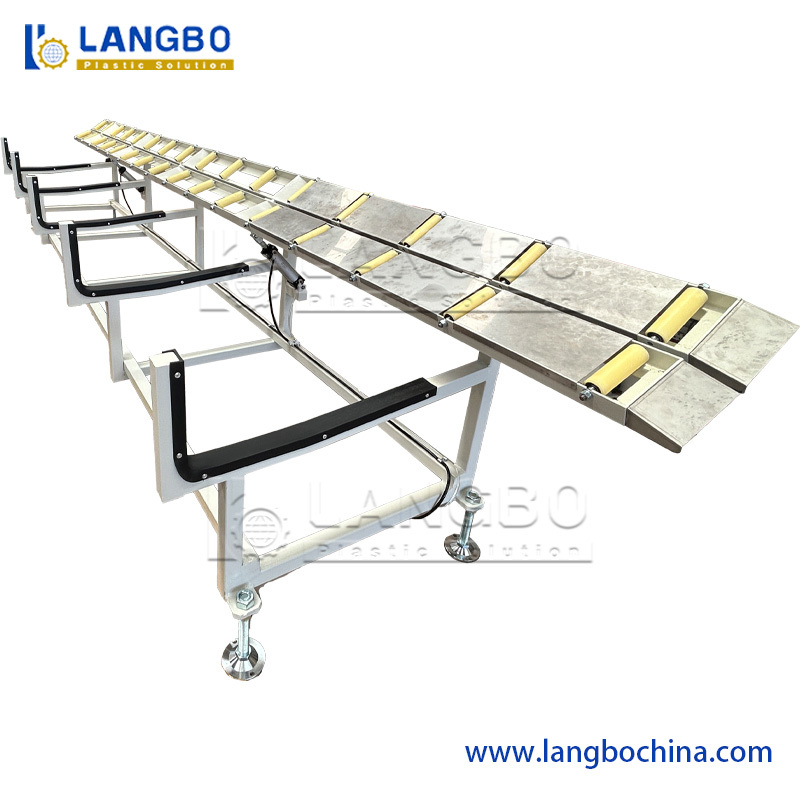

- Mesin pengangkut → Mesin pemotong → rak pembuangan atau mesin penggelembung pipa
- Desain sekrup canggih untuk plasticization PVC optimal
- Sistem kontrol PLC untuk operasi yang nyaman
- Sistem degassing memastikan kualitas pipa yang superior

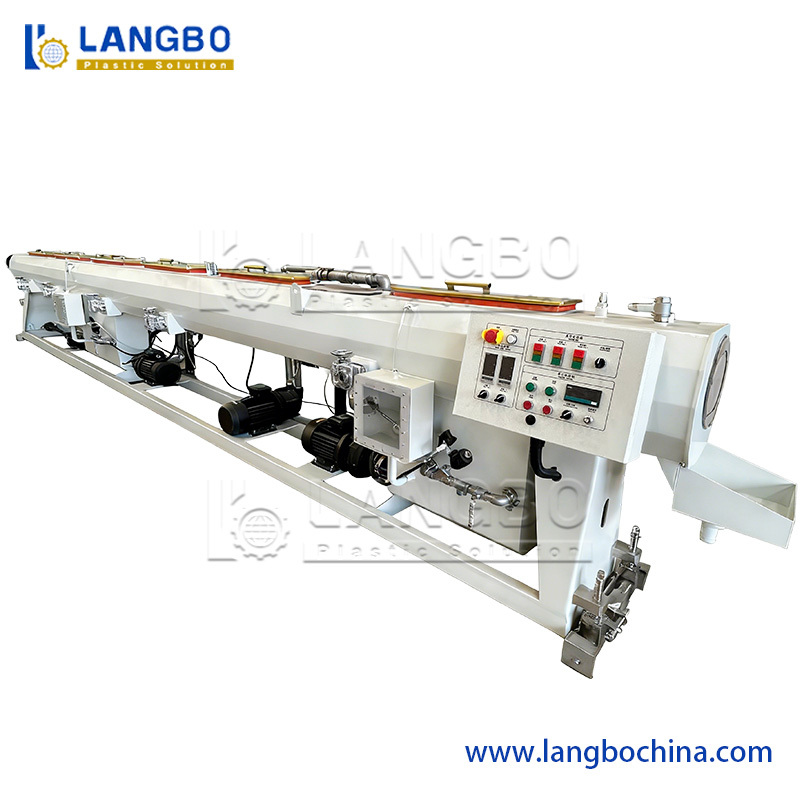

- Unit kalibrasi dan pendinginan vakum 304 stainless steel
- Sistem vakum multi-bagian untuk ukuran dan pendinginan yang stabil
- Sistem pendingin khusus dengan efisiensi yang ditingkatkan
- Kontrol suhu air otomatis untuk operasi cerdas
- Mesin pengangkut yang dapat dikonfigurasi dengan 2-6 jalur merangkak
- Pengepakan batuan besi mekanik dan pneumatik untuk kinerja yang dapat diandalkan

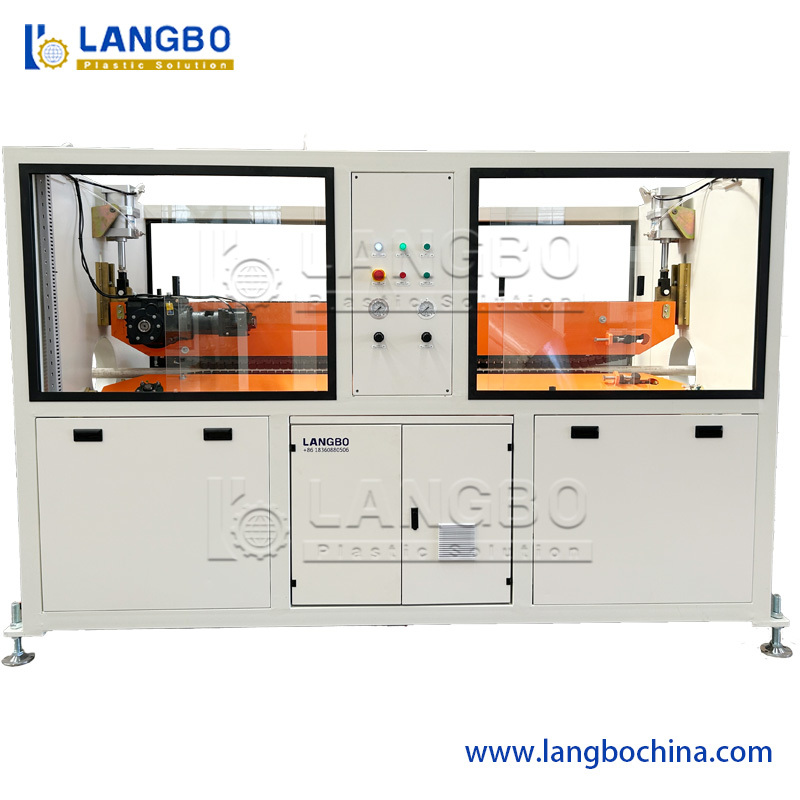

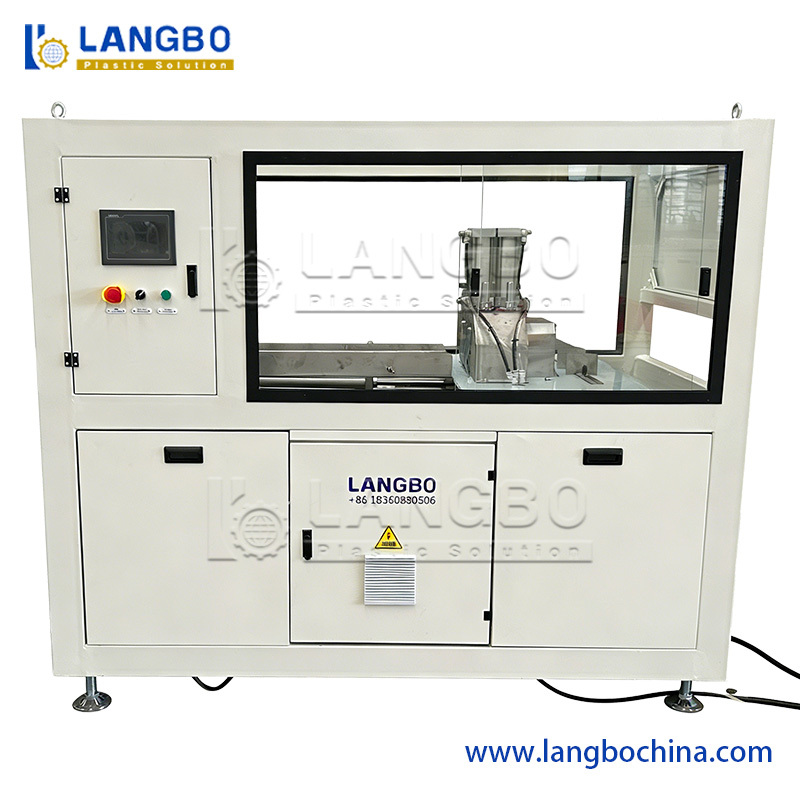

- Pilihan pemotongan bebas debu atau pemotongan planet tersedia
- Sistem pengumpulan debu terintegrasi untuk lingkungan kerja yang bersih
| Model | LB160 | £ 250 | LB315 | LB630 | LB800 |
|---|---|---|---|---|---|
| Ukuran pipa | 50-160mm | 75-250mm | 110-315mm | 315-630mm | 500-800 mm |
| Extruder | SJZ65/132 | SJZ80/156 | SJZ92/188 | SJZ92/188 | SJZ92/188 |
| Kekuatan motor | 37kw | 55kw | 90kw | 110kw | 132kw |
| Output | 250kg | 350 kg | 550kg | 600kg | 700kg |
Sorotan Produk
CPVC PVC Pipe Extruder 75-250mm Plastik Pipe Produksi Line Garis produksi canggih ini dirancang khusus untuk pembuatan pipa CPVC dengan diameter mulai dari 75-250mm dan berbagai ketebalan dinding.Ideal untuk pipa pasokan air dan pipa saluran listrik, sistem ini memenuhi permintaan global dengan ...
