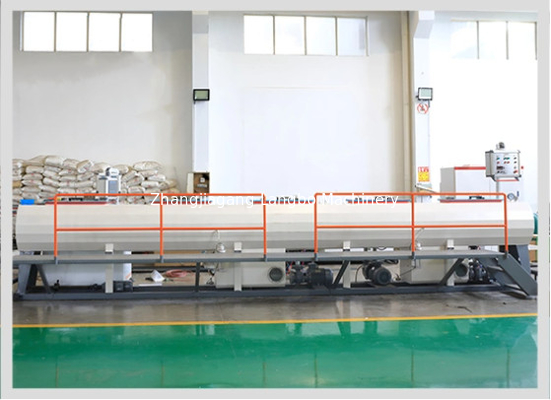

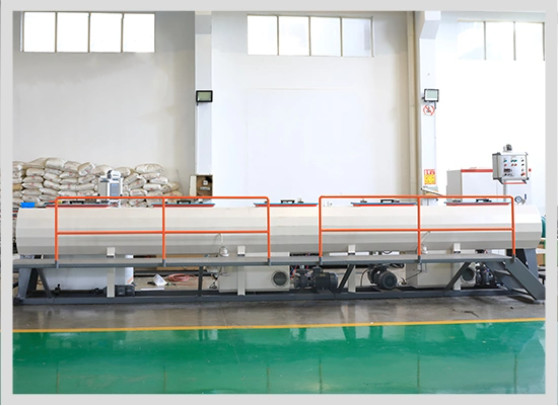

65/132 Pvc Pipe Extrusion Line 45kw ABB Frekuensi Inverter
Detail Produk
| Tipe ekstruder: | Ekstruder sekrup kembar kerucut | Model Extruder: | 65/132 |
|---|---|---|---|
| bahan mentah: | Bubuk PVC dan aditif | Aplikasi Produk Akhir: | Pipa pasokan air dan pipa drainase |
| Motor: | 45kw | kotak roda gigi: | Gearbox "Jiangyin". |
| Sistem kendali: | PLC | Pembalik: | frekuensi ABB |
| Sensor Suhu: | OMRON | Tarik: | Dua ulat mengangkut mesin |
| Pemotong: | Pemotong Gergaji | ||
| Menyoroti |
65/132 pipa pvc garis ekstrusi,Jalur ekstrusi pipa pvc 45kw,mesin ekstruder pipa pvc |
||
Deskripsi Produk
| Model | LB63 | LB110 | £ 250 | LB315 | LB630 | LB800 |
|---|---|---|---|---|---|---|
| Diameter pipa | 20-63mm | 20-110mm | 75-250mm | 110-315mm | 315-630mm | 500-800 mm |
| Model ekstruder | SJ65 | SJ75 | SJ90 | SJ90 | SJ120 | SJ120+SJ90 |
| Kekuatan motor | 37kw | 55kw | 90kw | 160kw | 280kw | 280KW + 160KW |
| Kapasitas Ekstrusi | 100 kg/jam | 150kg | 220kg | 400kg | 700kg | 1000kg |
- Bubuk PVC + pencampuran aditif
- Sistem pakan bahan
- Pengolahan ekstruder sekrup kembar

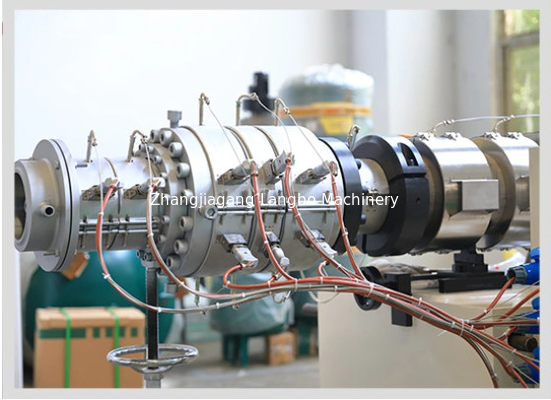

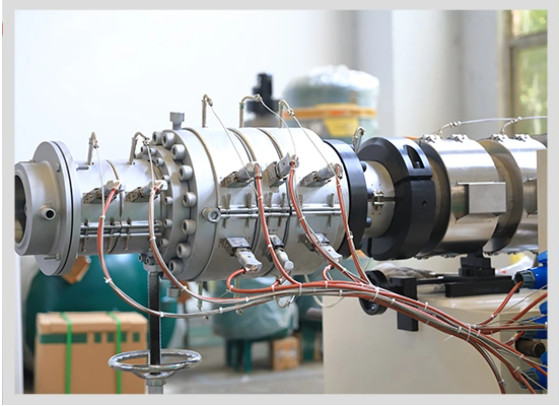

- Pembentukan cetakan dan kalibrator
- Mesin pengolah vakum
- Sistem pendingin semprot

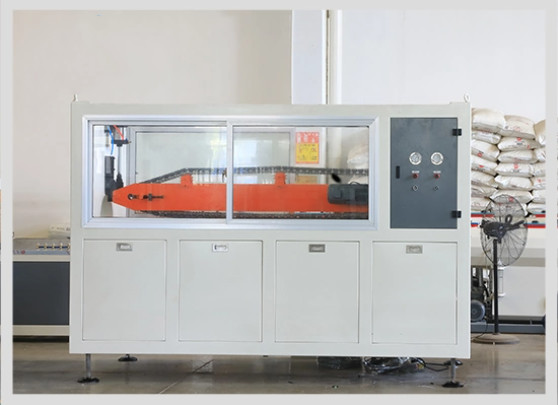

- Mesin penarik

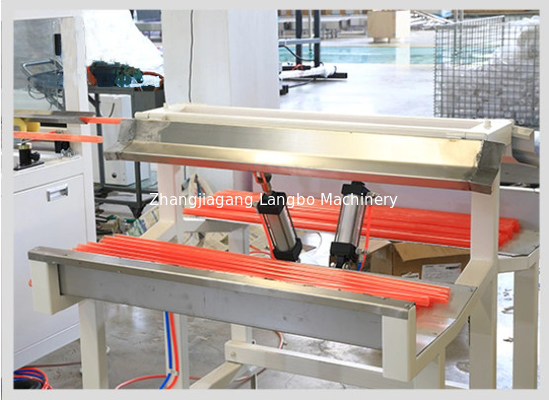

- Mesin pemotong
- Mesin penggelembung pipa atau rak pembuangan
| Model | LB160 | £ 250 | LB315 | LB630 | LB800 |
|---|---|---|---|---|---|
| Ukuran pipa | 50 ~ 160mm | 75 ~ 250mm | 110 ~ 315mm | 315 ~ 630mm | 500~800mm |
| Extruder | SJZ65/132 | SJZ80/156 | SJZ92/188 | SJZ92/188 | SJZ92/188 |
| Kekuatan motor | 37kw | 55kw | 90kw | 110kw | 132kw |
| Output | 250kg | 350 kg | 550kg | 600kg | 700kg |
Sorotan Produk
