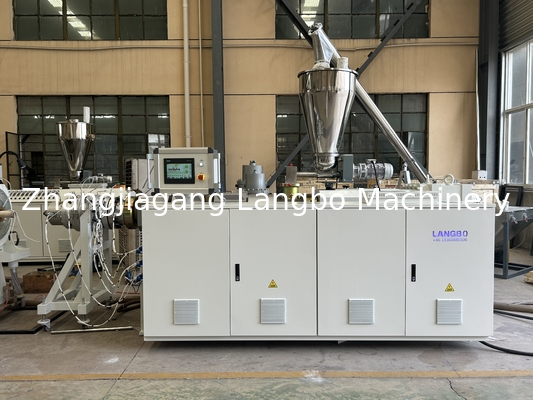

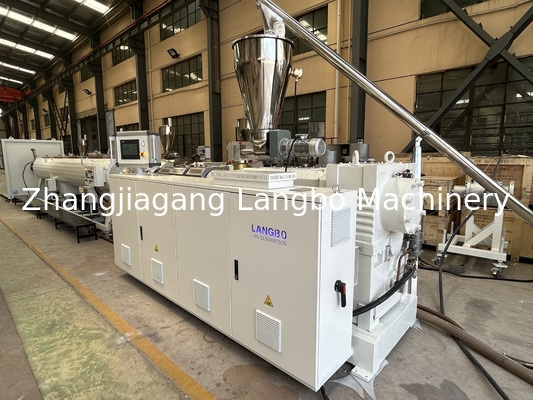

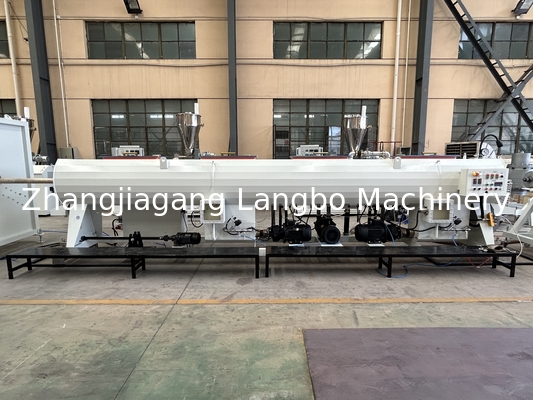

Smart Control 32-160mm Pvc Pipe Line Produksi Output Tinggi Dan Kecepatan Ekstrusi
Detail Produk
| Diameter pipa: | 32-160 mm | ekstruder: | 65/132 |
|---|---|---|---|
| Pengangkutan: | DUA MESIN PENGANGKUT | Aplikasi: | Pipa Pasokan Air |
| Metode Pengepakan: | Paket Kotak Kayu dan Film | Bahan koneksi: | SUS304 |
| Motor: | 37kw | Kapasitas keluaran: | 250kg/jam |
| Pemotong: | Pemotong Gergaji | Tangki vakum: | Panjang 6 meter |
| Motor Ekstruder: | -beide | Penumpuk: | Panjang 6 meter |
| Menyoroti |
Smart Control jalur produksi pipa PVC,32mm pipa produksi pvc,ekstruder pipa pvc berisik rendah |
||
Deskripsi Produk
- Efisiensi produksi tinggi dengan konsumsi daya rendah
- Pengurangan gesekan dan tingkat pemotongan yang lebih rendah untuk kualitas pipa yang lebih baik
- Unit kontrol suhu dan desgasing yang dapat diprogram
- Regulasi kecepatan arus searah untuk pemrosesan yang tepat
- Sekrup dan tong merek premium HUAYE dengan desain khusus
- permukaan bagian dalam yang halus menghasilkan pipa berkilau berkualitas tinggi
- Kotak gear terintegrasi untuk kekuatan struktural yang ditingkatkan dan stabilitas operasional
- Jalur merangkak ganda dan pemotong gergaji cerdas yang dikendalikan layar
- Inverter ABB dan motor INOVICE dalam mesin penarik
| Model | Jarak pipa (mm) | Model sekrup | Kekuatan motor | Kapasitas output |
|---|---|---|---|---|
| LB160 | 50-160mm | SJ65/132 | 37KW | 250kg |
| £ 250 | 75-250mm | SJ80/156 | 55KW | 350 kg |
| LB315 | 110-315mm | SJ92/188 | 90KW | 550kg |
| LB630 | 315-630mm | SJ92/188 | 110KW | 600kg |
| LB800 | 500-800 mm | SJ92/188 | 132KW | 700kg |
- 65/132 ekstruder sekrup ganda
- Materai ekstrusi presisi
- Tangki kalibrasi vakum baja tahan karat
- Mesin cetak otomatis menyemprotkan rangka bergerak
- Mesin penarik dan pemotong
- Pemasang otomatis
Sorotan Produk
Smart Control 32-160mm PVC Pipe Produksi Line Sistem ekstrusi output tinggi dengan otomatisasi canggih untuk manufaktur pipa PVC yang efisien Tinjauan garis produksi Jalur ekstrusi canggih ini dirancang untuk memproduksi pipa PVC 32-160mm dengan kapasitas output hingga 250kg/jam.Sistem ini ...
