Integrated Gearbox 50-200mm PVC Pipe Extrusion Line dengan Struktur Kuat dan Stabilitas
Detail Produk
| Diameter pipa: | 50-200mm | ekstruder: | 80/156 |
|---|---|---|---|
| Pengangkutan: | TIGA MESIN PENGANGKUT | Aplikasi: | Pipa Pasokan Air |
| Metode Pengepakan: | Paket Kotak Kayu dan Film | Bahan koneksi: | SUS304 |
| Motor: | 55KW | Kapasitas keluaran: | 400kg/jam |
| Pemotong: | PEMOTONG PLANET | Tangki vakum: | Panjang 6 meter |
| Motor Ekstruder: | -beide | kotak roda gigi: | GEARBOX TERINTEGRASI |
| Jaminan: | 1 Tahun | Layanan purna jual: | LAYANAN SEUMUR HIDUP |
| Menyoroti |
jalur ekstrusi pipa pvc dengan gearbox terintegrasi,garis ekstrusi pipa pvc struktur kuat,jalur produksi pipa pvc berisik rendah |
||
Deskripsi Produk
- Desain gearbox terintegrasi untuk meningkatkan kekuatan struktural dan stabilitas operasional
- Sekrup dan tong merek HUAYE dengan desain khusus untuk permukaan dalam yang halus
- 38CrMnAlA bahan sekrup dan 40Cr menempa/memutus cetakan untuk daya tahan

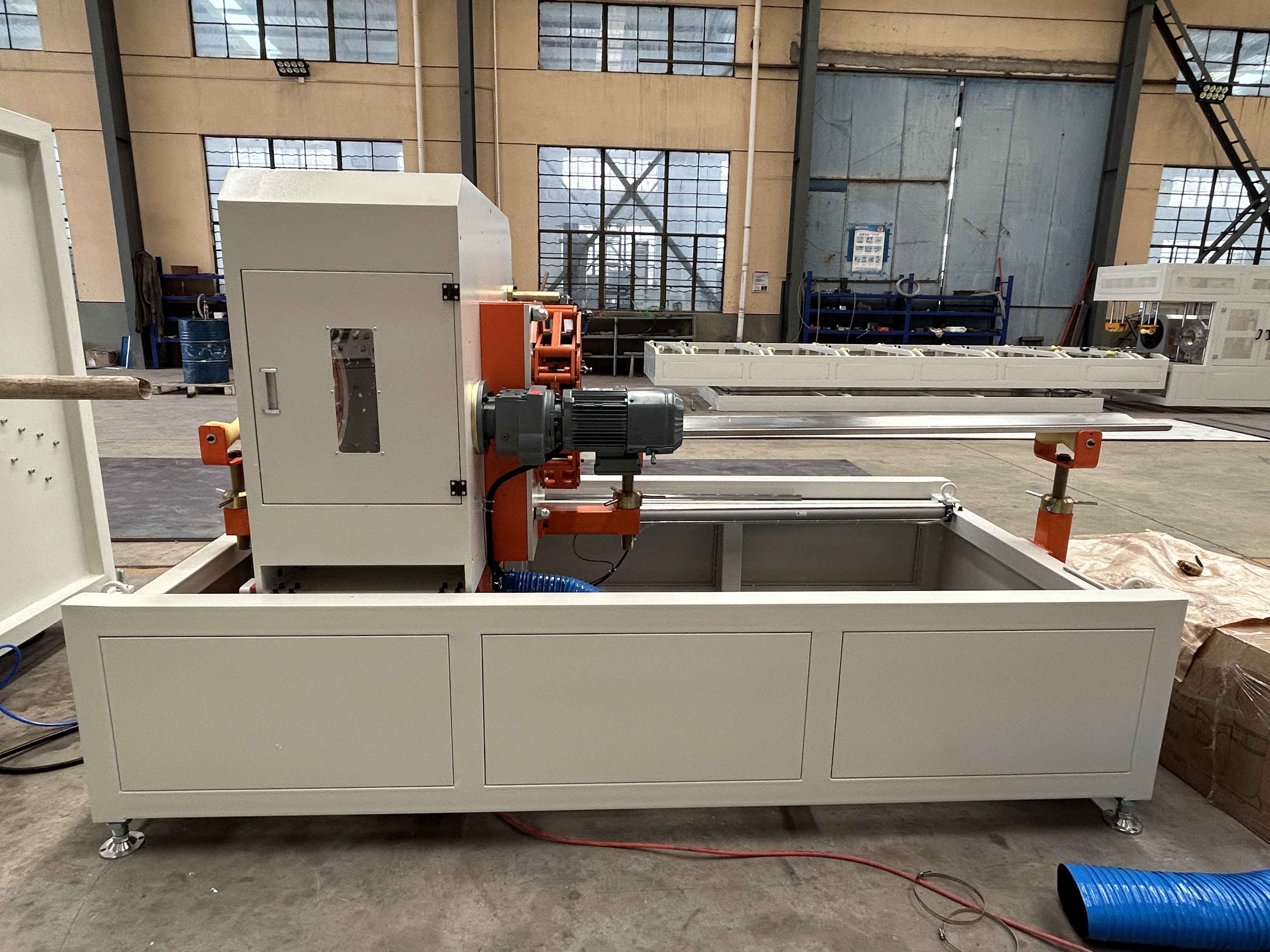

- Sistem trek tiga crawler dengan pemotong planet untuk pemotongan presisi
- Pemotong cerdas yang dikendalikan layar dengan inverter ABB dan motor INOVICE
- Kapasitas operasi 24 jam berturut-turut untuk produktivitas maksimum
- Membuat pipa halus, berkilau dengan daya tarik pasar yang sangat baik
| Model | LB160 | £ 250 | LB315 | LB630 | LB800 |
|---|---|---|---|---|---|
| Jarak pipa (mm) | 50 sampai 160 | 75-250 | 110-315 | 315-630 | 500-800 |
| Model sekrup | SJ65/132 | SJ80/156 | SJ92/188 | SJ92/188 | SJ92/188 |
| Kekuatan motor | 37KW | 55KW | 90KW | 110KW | 132KW |
| Kapasitas output | 250kg | 350 kg | 550kg | 600kg | 700kg |
- 65/132 ekstruder sekrup ganda
- Pembuatan mati ekstrusi
- Tangki kalibrasi vakum baja tahan karat
- Mesin cetak otomatis menyemprotkan rangka bergerak
- Mesin penarik dan pemotong
- Stacker
Sorotan Produk
Mesin penggerak terintegrasi 50-200mm PVC Pipe Extrusion Line Garis ekstrusi canggih ini dirancang untuk memproduksi pipa PVC 50-200mm dengan kapasitas output luar biasa hingga 400kg/jam. Dengan kekuatan motor -BEIDE dan ekstruder 80/156 dengan motor 55kW,sistem ini memastikan efisiensi produksi ...
