125HP Mesin pendingin udara R4047C / R22 pendingin
Detail Produk
| Tegangan: | Disesuaikan | Merek kompresor: | American Copeland |
|---|---|---|---|
| Penguap: | evaporator shell dan tabung | Model: | 125 HP |
| Saluran aliran air: | Pipa tembaga | pendingin: | R4047C/R22 |
| Menyoroti |
125HP pendingin udara pendingin,R4047C pendingin udara,Mesin pendingin udara 125HP |
||
Deskripsi Produk

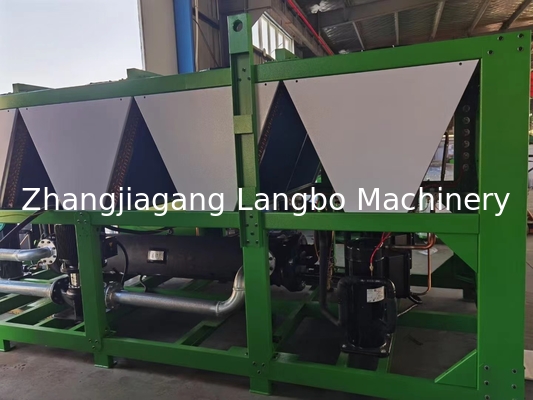

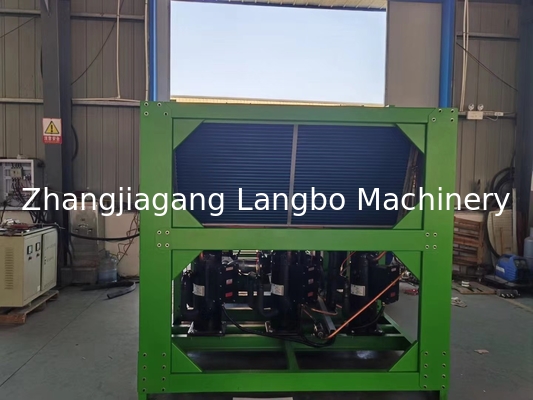

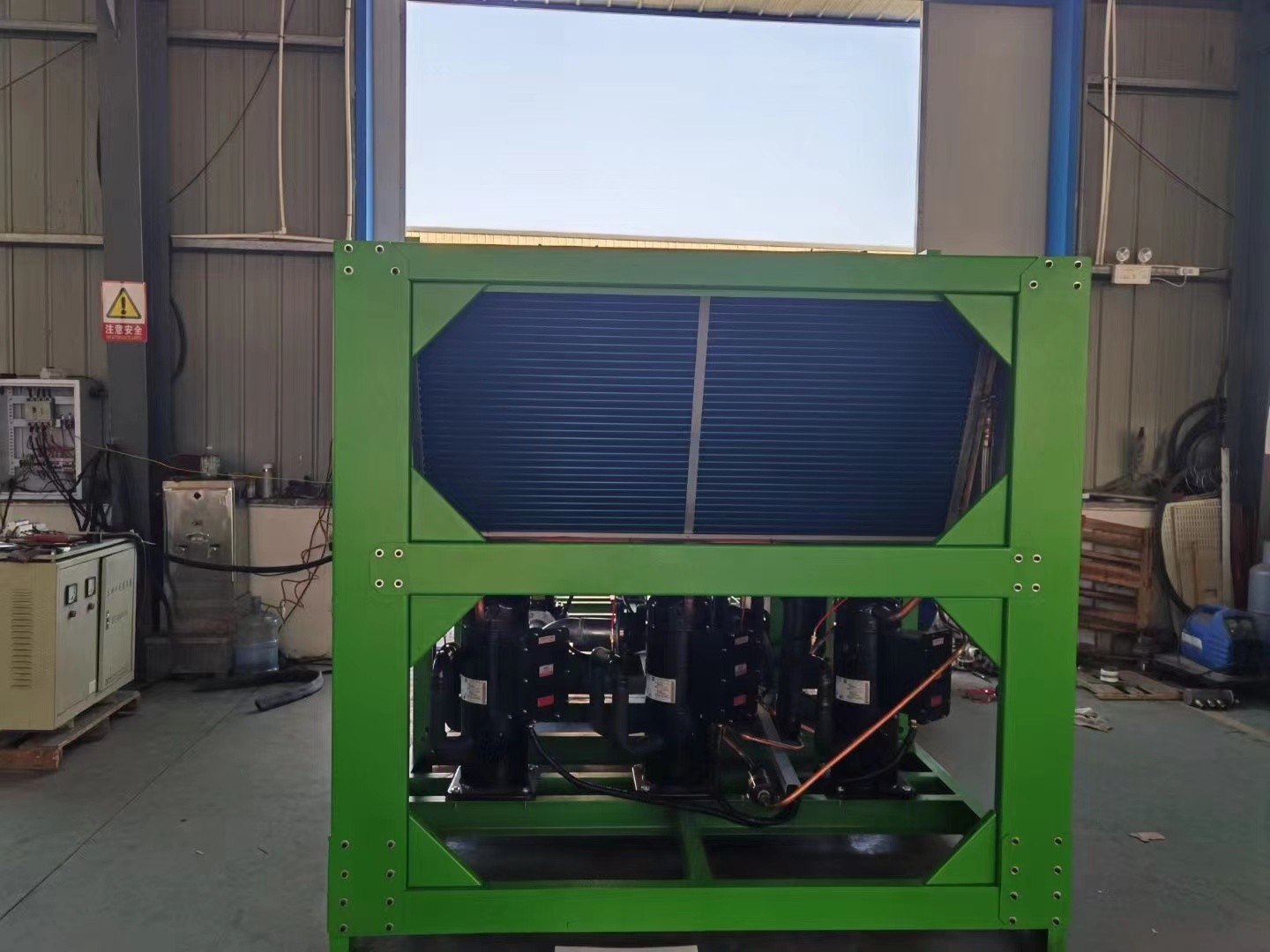

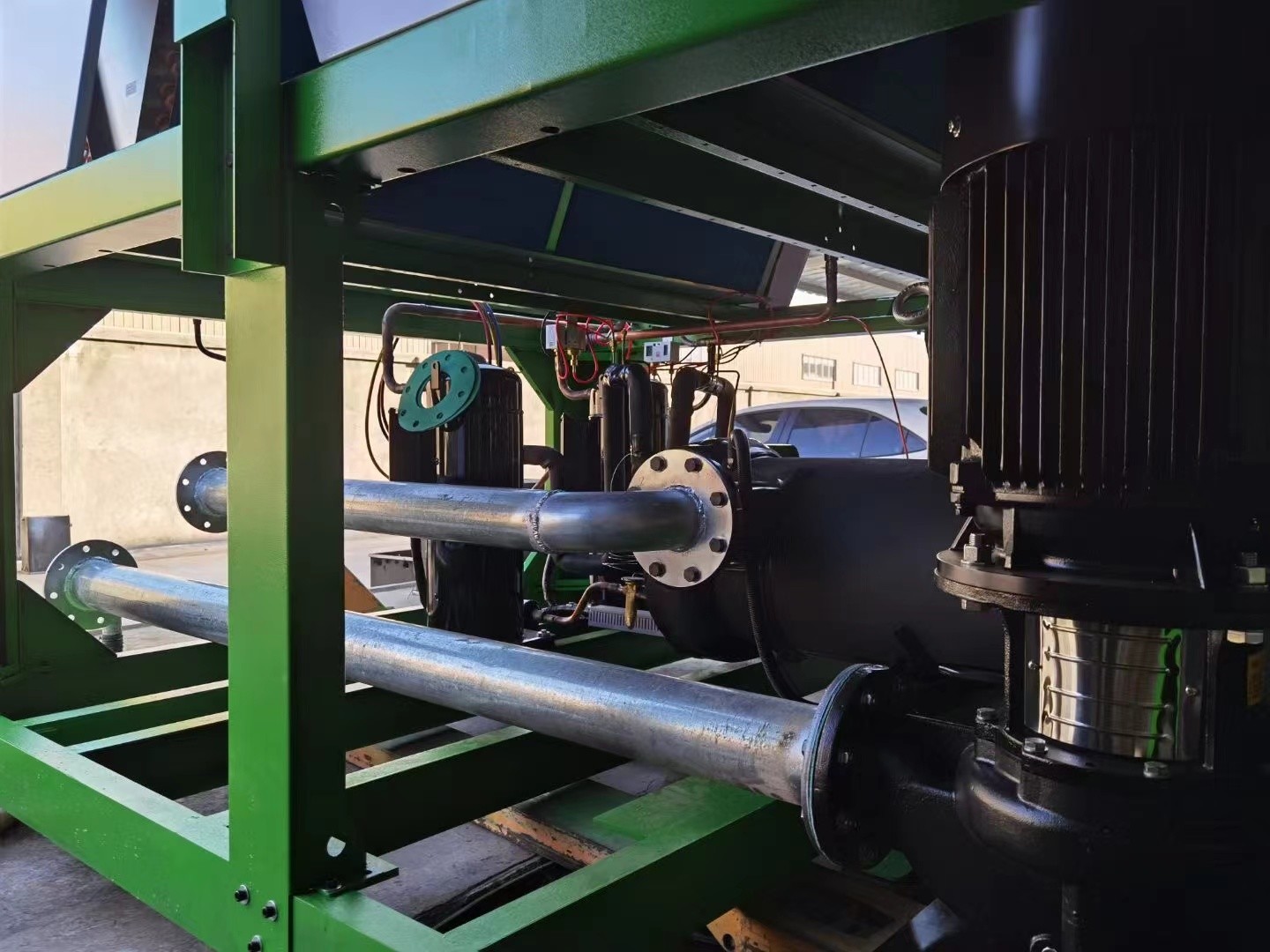

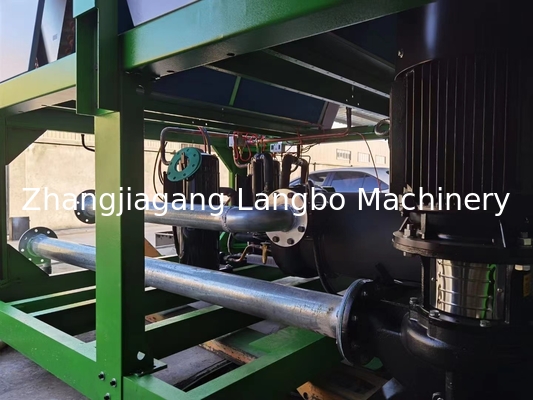

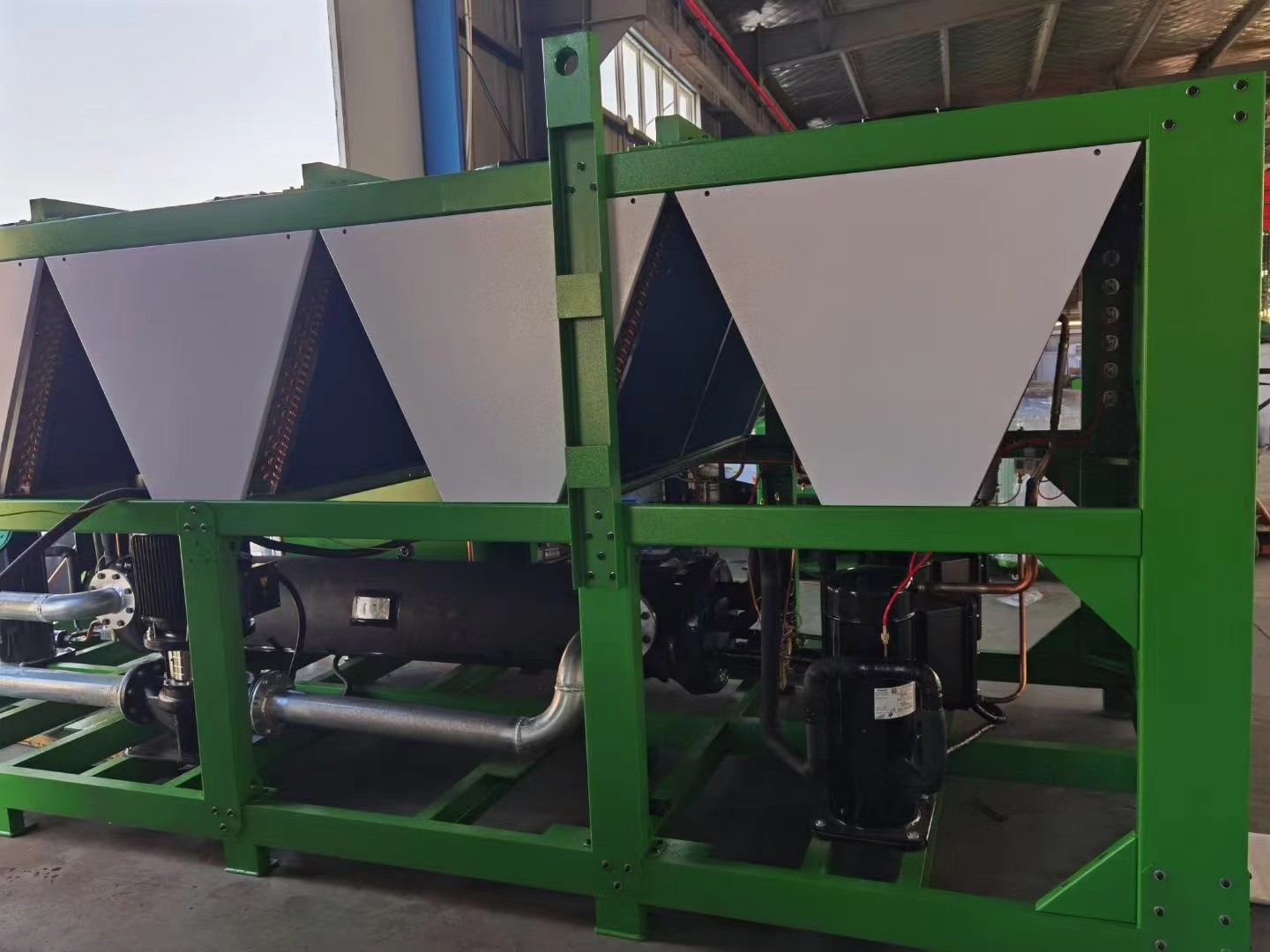

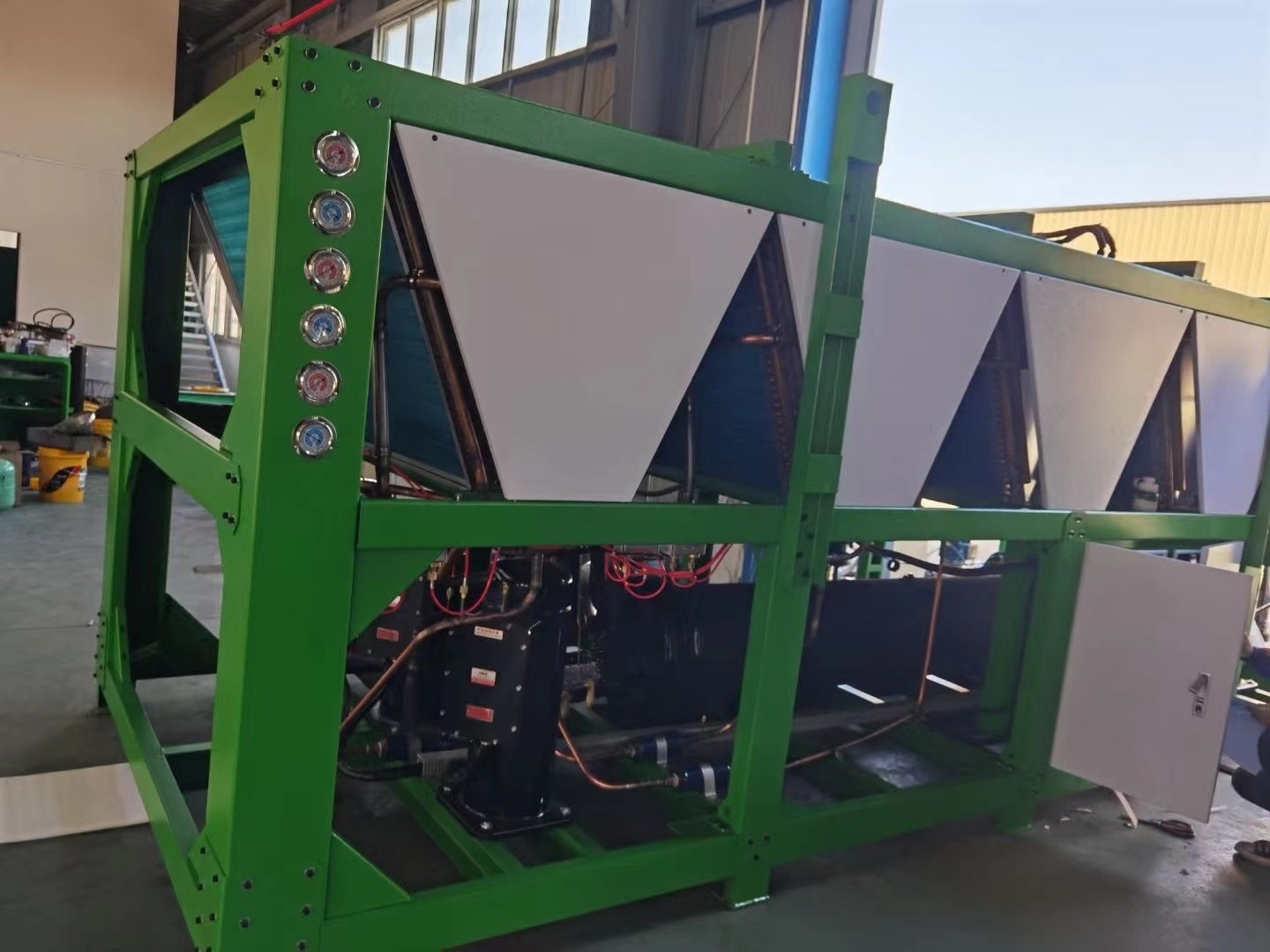

Mesin pendingin udara 125HP
Deskripsi singkat:
Untuk jalur ekstrusi, pipa atau profil yang diekstrusi perlu didinginkan dengan air dingin.Pendinginan air menggunakan metode angin kipas untuk menyediakan air dingin untuk tangki vakum dan meningkatkan kecepatan ekstrusiUntuk mesin output besar, 125HP akan dibutuhkan.
Parameter:
| Model | 125 HP | |
| Tegangan | 380V / 50Hz / 3Phase / Disesuaikan | |
| Bagian listrik | ||
| Kisaran suhu | 3°C - 50°C | |
| Pendinginan kapasitas |
KW | 55 |
| Kcal/jam | 47300 | |
| Kompresor | Jenis | Jenis gulungan hermetik |
| Kekuatan ((HP) | 10*2 | |
| Merek | American Copeland | |
| Nomor | 2 | |
| Kondensator | Jenis | Tabung tembaga yang efisien dengan sirip aluminium + kipas rotor luar berisik |
| Volume udara ((m3/H) | 25000 | |
| Evaporator | Jenis | Pengembung kerang dan tabung |
| Air pendingin ((m3/H) | 9.52 | |
| Diameter pipa masuk dan keluar | 2 " | |
| Bahan pendingin | Jenis | R407C |
| Modus kontrol | Di luar katup ekspansi seimbang | |
| Pompa air | Kekuatan | 3KW |
| L/menit | 315 | |
| Angkat | 20m | |
| Ukuran | L | 2240mm |
| W | 1110mm | |
| H | 1700 mm | |
| Berat badan | KG | 880 |
Sorotan Produk
Mesin pendingin udara 125HP Deskripsi singkat: Untuk jalur ekstrusi, pipa atau profil yang diekstrusi perlu didinginkan dengan air dingin.Pendinginan air menggunakan metode angin kipas untuk menyediakan air dingin untuk tangki vakum dan meningkatkan kecepatan ekstrusiUntuk mesin output besar, 125HP ...
