16-1000MM HDPE Air Drainage Irrigasi Selang Pipa Ekstrusi Produksi Line Untuk Saluran Gas
Detail Produk
| Extruder power (kw): | 160KW | PIPE DIAMETER: | 16-1000MM |
|---|---|---|---|
| COLOUR: | BLACK, ORANGE | APPLICATION: | GAS CONDUIT |
| MARK LINE: | YES | Diameter sekrup: | 150mm |
| Screw design: | Single-screw | Sertifikasi: | CE,ISO |
| Tegangan: | 380V 50HZ 3Phase (Disesuaikan) | Automatic grade: | Full-automatic |
| Layanan Pasca Penjualan: | Insinyur tersedia untuk melayani mesin di luar negeri, Dukungan online, Dukungan teknis video, Insta | Warranty: | 1 Year |
| Color: | Customised | Control: | PLC+Touch Screen |
| Menyoroti |
Mesin Ekstrusi Pipa HDPE 16mm,Mesin ekstrusi pipa hdpe 1000MM,Mesin ekstrusi pipa hdpe saluran gas |
||
Deskripsi Produk
PE HDPE Extruder Air drainase Irigasi Selang Pipa Ekstrusi Produksi Mesin Membuat
Aplikasi:
Pasokan air dan gas, sistem irigasi mikro & sprinkler, pompa limbah dan sistem pembuangan limbah.
Sifat & Keuntungan:
Pipa yang diproduksi oleh jalur ini memiliki kekerasan dan fleksibilitas yang sangat baik. diameter mereka bervariasi dari 16mm hingga 1200mm.sistem pengangkut dan pemotong planet dan stacker.

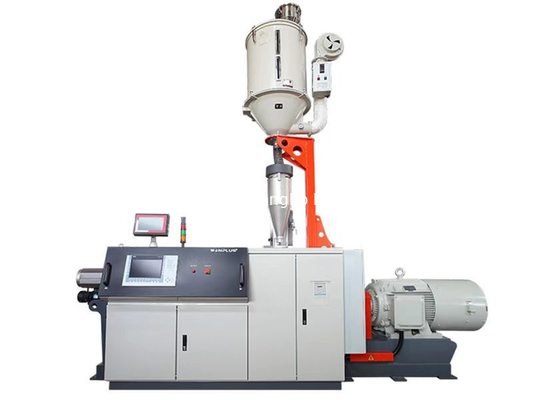

Dua ekstruder digunakan dalam jalur ini. ekstruder utama digunakan untuk ekstrudasi pipa diameter besar dan yang lain yang kecil digunakan untuk ekstrudasi garis tanda.
Sistem kontrol PLC dan layar kristal cair kromatik besar membuat operasi sangat nyaman.
Aliran proses:
Raw material+master batches--mixing--vacuum feeding--material dryness--single screw extruder--mark line extruder---mould--calibrator---vacuum spray calibration tank---spray cooling water tank---color-ribbon printer--pedrail haul-off--planetary cutter--stacker---finished product inspecting&packing
Spesifikasi:
| Model | Diameter pipa (mm) | MODEL EXTRUDER | Kekuatan motor |
| LB-63 | 20-63 | SJ65/33 | 55AC |
| LB-110 | 20-110 | SJ65/33 | 55AC |
| LB-160 | 75-160 | SJ75/33 | 90AC |
| LB 250 | 90-250 | SJ75/33 | 110DC |
| LB-315 | 110-315 | SJ90/33 | 160DC |
| LB-450 | 160-450 | SJ90/33 | 160DC |
| LB-630 | 315-630 | SJ120/33 | 280DC |
| LB-800 | 500-800 | SJ150/33 | 315DC |
| LB-1200 | 710-1200 | SJ150/34 | 400DC |
Semua saluran pipa ekstrusi dapat dilengkapi dengan berbagaiPeralatan bantuuntuk memenuhi permintaan pelanggan kami dan memberikan solusi dari satu sumber.
| Unit dosis volumetrik dan gravimetrik |
| Unit pengisian bahan baku |
| Mesin menggelegar |
| Mesin penggiling |
| Unit penandaan jet tinta |
| Unit penggulung |
| Meja miring |
