Mudah Operasi Plastik HDPE PE Pipe Extrusion Membuat Mesin Produksi Line
Detail Produk
| Extruder power (kw): | 160KW | PIPE DIAMETER: | 16-1000MM |
|---|---|---|---|
| Warna: | Hitam, Oranye | APPLICATION: | GAS CONDUIT |
| TANDAKAN GARIS: | Ya. | SCREW DIAMETER: | 150MM |
| Desain Sekrup: | Sekrup tunggal | Sertifikasi: | CE,ISO |
| Voltage: | 380V 50HZ 3Phase(Customized) | Automatic grade: | Full-automatic |
| Layanan Pasca Penjualan: | Insinyur tersedia untuk melayani mesin di luar negeri, Dukungan online, Dukungan teknis video, Insta | Jaminan: | 1 tahun |
| Color: | Customised | Control: | PLC+Touch Screen |
| Menyoroti |
Mesin pembuatan pipa PE ekstrusi,Mudah Mengoperasikan garis ekstrusi,Mudah Operasi pipa pipa garis ekstrusi |
||
Deskripsi Produk
Mudah Operasi Plastik HDPE PE Pipe Extrusion Membuat Mesin Produksi Line

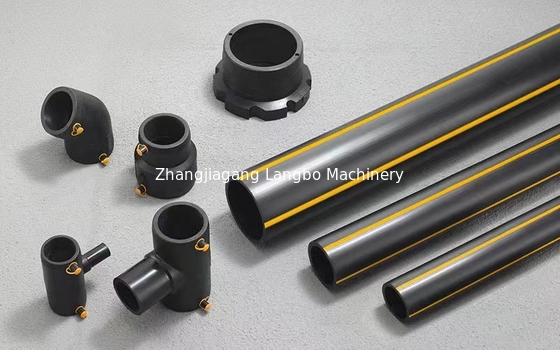

Aplikasi:

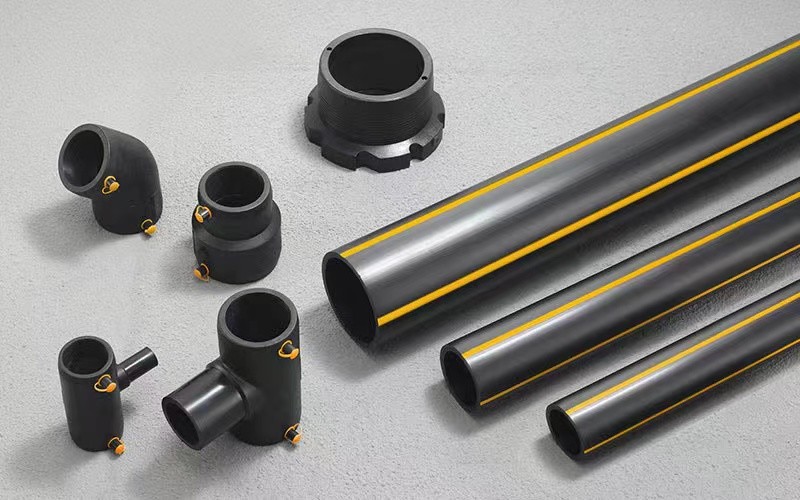

Pasokan air dan gas, sistem irigasi mikro & sprinkler, pompa limbah dan sistem pembuangan limbah.
Sifat & Keuntungan:
Pipa yang diproduksi oleh jalur ini memiliki kekerasan dan fleksibilitas yang sangat baik. diameter mereka bervariasi dari 16mm hingga 1200mm.sistem pengangkut dan pemotong planet dan stacker.

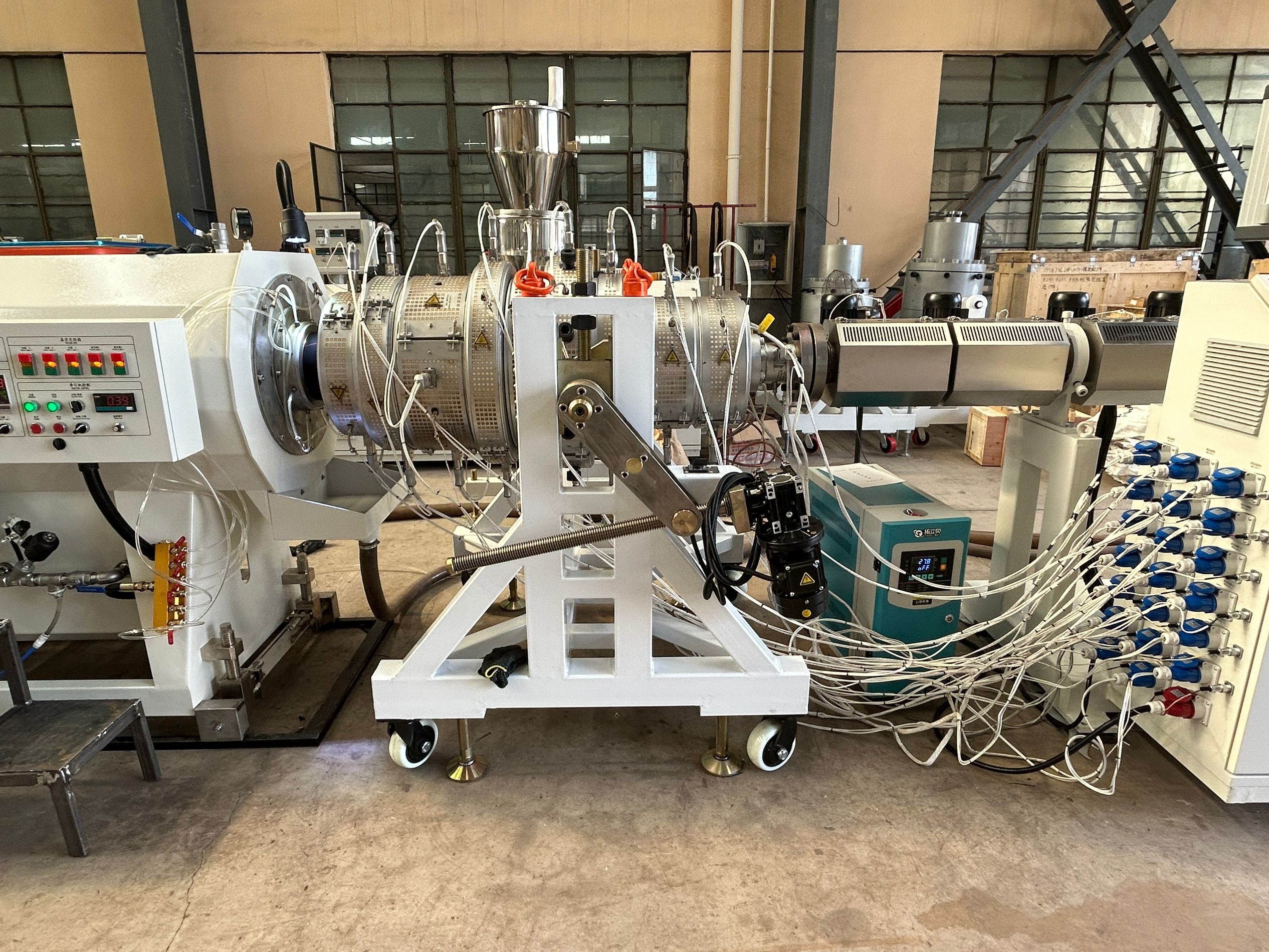

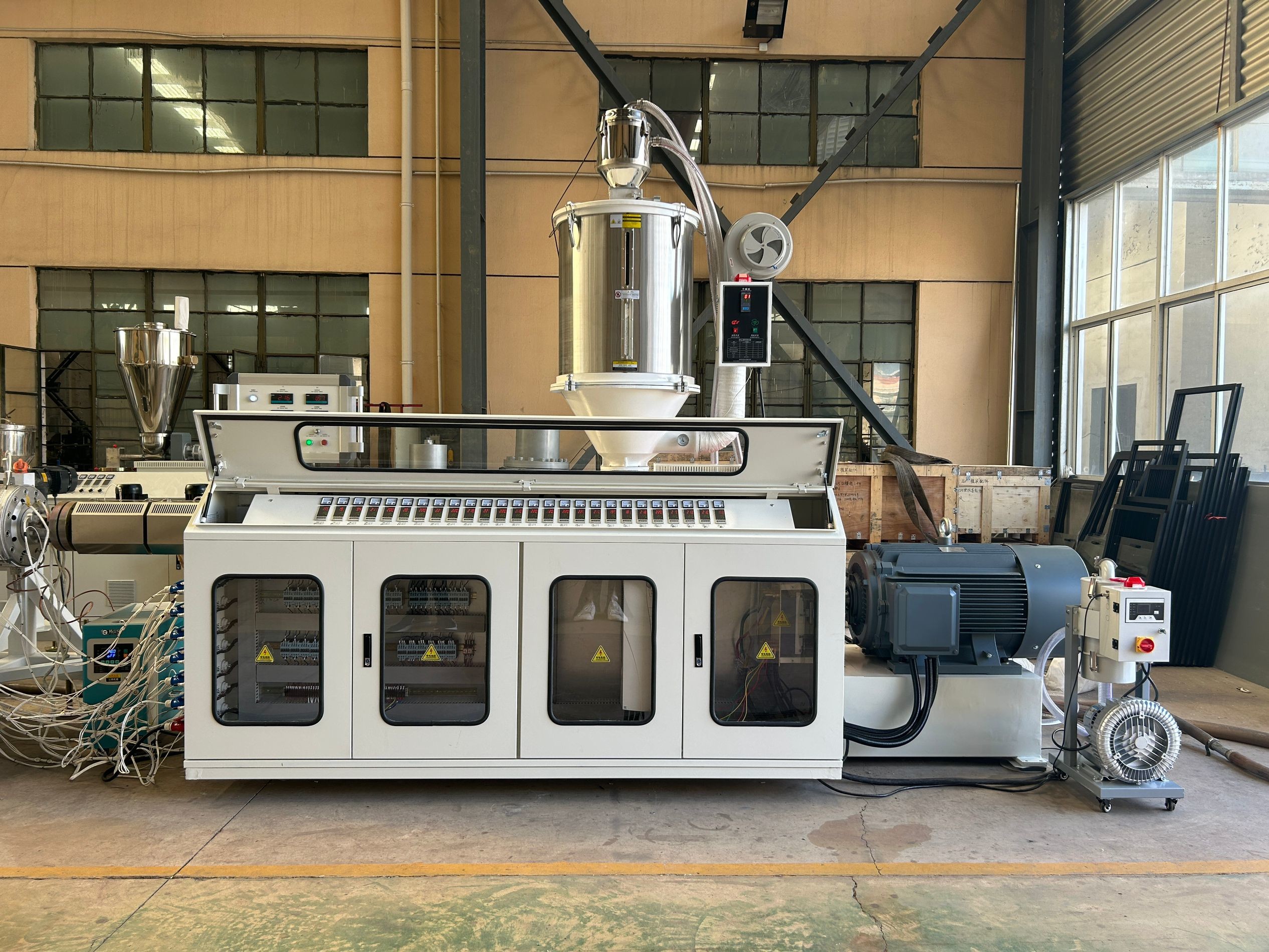

Dua ekstruder digunakan dalam jalur ini. ekstruder utama digunakan untuk ekstrudasi pipa diameter besar dan yang lain yang kecil digunakan untuk ekstrudasi garis tanda.
Sistem kontrol PLC dan layar kristal cair kromatik besar membuat operasi sangat nyaman.
Aliran proses:

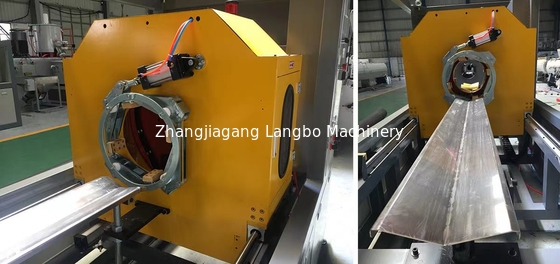

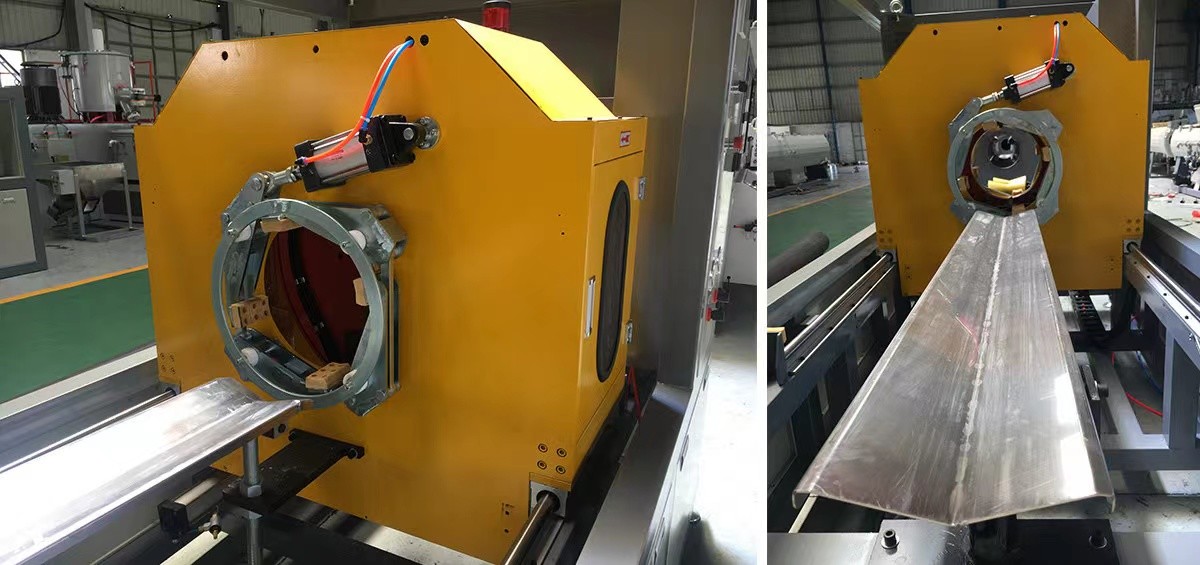

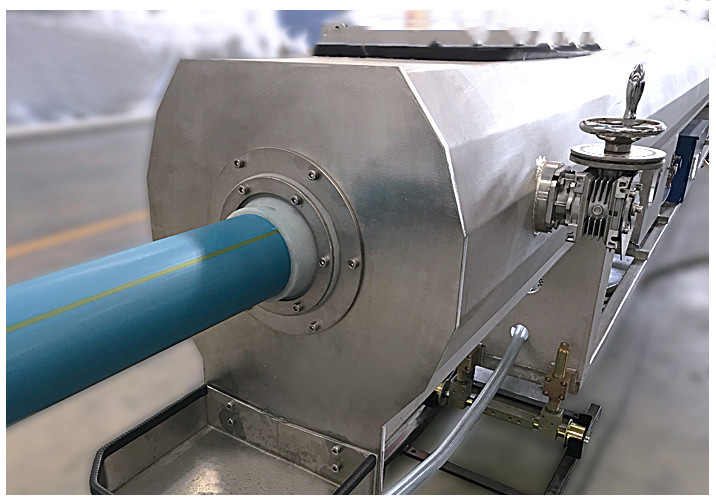

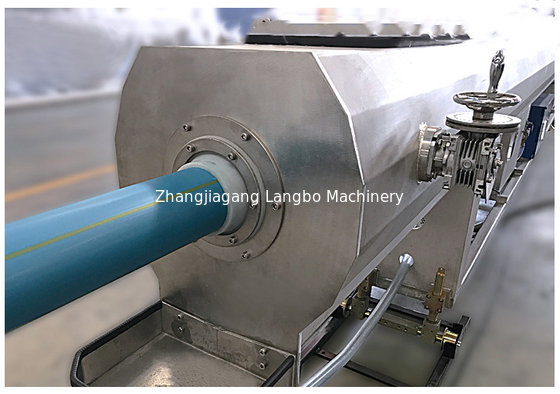

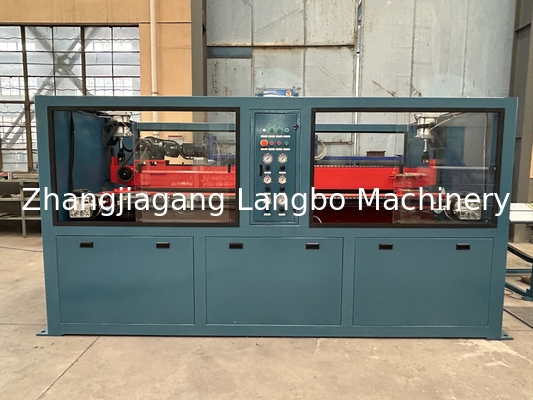

Raw material+master batches--mixing--vacuum feeding--material dryness--single screw extruder--mark line extruder---mould--calibrator---vacuum spray calibration tank---spray cooling water tank---color-ribbon printer--pedrail haul-off--planetary cutter--stacker---finished product inspecting&packing
Spesifikasi:
| Model | Diameter pipa (mm) | MODEL EXTRUDER | Kekuatan motor |
| LB-63 | 20-63 | SJ65/33 | 55AC |
| LB-110 | 20-110 | SJ65/33 | 55AC |
| LB-160 | 75-160 | SJ75/33 | 90AC |
| LB 250 | 90-250 | SJ75/33 | 110DC |
| LB-315 | 110-315 | SJ90/33 | 160DC |
| LB-450 | 160-450 | SJ90/33 | 160DC |
| LB-630 | 315-630 | SJ120/33 | 280DC |
| LB-800 | 500-800 | SJ150/33 | 315DC |
| LB-1200 | 710-1200 | SJ150/34 | 400DC |
Semua saluran pipa ekstrusi dapat dilengkapi dengan berbagaiPeralatan bantuuntuk memenuhi permintaan pelanggan kami dan memberikan solusi dari satu sumber.
| Unit dosis volumetrik dan gravimetrik |
| Unit pengisian bahan baku |
| Mesin menggelegar |
| Mesin penggiling |
| Unit penandaan jet tinta |
| Unit penggulung |
| Meja miring |
