Plastik PE/PP/HDPE/LDPE/LLDPE/BOPP Film/Bag/Woven Bag/Non Woven/Fiber/Granulating Line/Granulation Plant/Agglomeration Recycling/Compact Pelletizing Machine
Detail Produk
| Kondisi: | BARU | Nilai otomatis: | Otomatis |
|---|---|---|---|
| Kapasitas: | 400kg/jam | Diproses plastik: | TPU, EVA, TPEE, PP, PE, PVC, ABS |
| Desain sekrup: | Sekrup ganda | Nomor model: | Lb |
| inverter: | Abb | Jaminan: | 2 tahun |
| Komponen Listrik: | atau Schnider | Metode Pengepakan: | Paket kayu dan film |
| Waktu Pengiriman: | 45 hari | ||
| Menyoroti |
Mesin peletisan plastik untuk daur ulang,Pabrik granulasi film HDPE,mesin pelleting kantong PP kompak |
||
Deskripsi Produk
Plastik PE/PP/HDPE/LDPE/LLDPE/BOPP Film/Bag/Woven Bag/Non Woven/Fiber/Granulating Line/Granulation Plant/Agglomeration Recycling/Compact Pelletizing Machine
1. Aplikasi
Dengan desain sekrup yang berbeda, mesin ini dapat digunakan untuk menggranulasi bahan daur ulang PVC kaku, PVC lunak dan limbah PVC.
Ini menggunakan konversi pneumatik dan angin kencang bertiup.
Kontainer penyimpanan dan dapat berjalan pada kecepatan tinggi untuk waktu yang lama sementara ekstrusi stabil.
2.Fitur
1, peralatan canggih, peletisasi yang tepat dan kapasitas produksi yang tinggi.
2, Conical double-screw extruder, sangat cocok untuk mengolah bubuk PVC dengan kapasitas tinggi

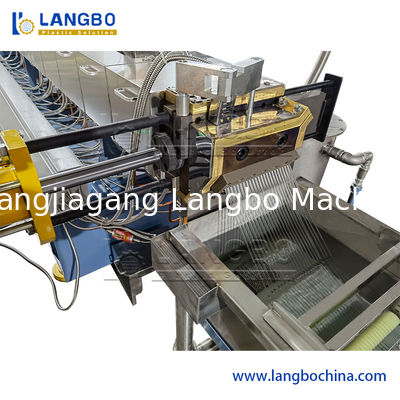

3, Pelletizing gaya: Hot-cutting pada wajah cetakan, bahkan memotong memastikan bentuk yang baik.
4Mesin Bantuan: Pellets pendinginan & klasifikasi
Aliran proses:
Raw material+ additive → Mixing → Conveying feeding → hopper feeding → Conical twin screw extruder → Hot face cutting → Cyclone separator → Vibration sieve → Blowing system → Storage hopper → Finished product packing
Parameter teknik
| Nomor model | Diameter sekrup (mm) | Kecepatan rotasi sekrup (rpm) | Ukuran pelet ((mm) | Daya mesin utama (kw) | Kekuatan pemanasan dalam Barel (kw) | Kapasitas produksi (kg/jam) | Ketinggian pusat mesin (mm) | Berat bersih | Ukuran keseluruhan (mm) |
| SJSZ45 | 45/90 | 1-45 | 3-4mm | 15 | 9.6 | 70-80 | 1000 | 2800 | 3300*1200*2000 |
| SJSZ51 | 51/105 | 1-45.5 | 3-4mm | 22 | 11.5 | 80-120 | 1000 | 3000 | 3360*1290*2100 |
| SJSZ55 | 55/110 | 1 sampai 40 | 3-4mm | 22 | 18 | 150-180 | 1000 | 3500 | 3620*1350*2200 |
| SJSZ65 | 65/132 | 1-38 | 3-4mm | 37 | 24 | 250 sampai 300 | 1000 | 4000 | 4235*1520*2450 |
| SJSZ80 | 80/156 | 1-36.9 | 3-4mm | 55 | 36 | 320-450 | 1000 | 5000 | 4750*1550*2460 |
| SJSZ92 | 92/188 | 1-34.7 | 3-4mm | 110 | 88 | 650-800 | 1000 | 5500 | 6000*1600*2500 |
