WPC/UPVC/PVC/PE/PP Wall Panel/Window/Door/Decking/Fence/Windowsill Wood Plastic Flooring Profile Extrusion Production Line

1
MOQ
USD
harga
WPC/UPVC/PVC/PE/PP Wall Panel/Window/Door/Decking/Fence/Windowsill Wood Plastic Flooring Profile Extrusion Production Line
fitur Galeri Deskripsi Produk Peringkat & Ulasan Quote request suatu
fitur
Spesifikasi
Model Extruder: Ekstrudet sekrup tunggal
Ukuran profil: Max. 2140mm
Extruder sekrup tunggal: SJ 120/35
Bahan mentah: Pelet pp
Pemotong: MELIHAT CUTTER
Voltase: 380V 50HZ 3Phase (Disesuaikan)
inverter: ABB
Aplikasi: Konstruksi
Jaminan: 12 bulan setelah pemasangan di tempat lokal
Warna: Depan atas permintaan pelanggan
Metode pengepakan: Film atau kotak kayu
Menyoroti:

WPC wall panel extrusion line

,

UPVC window profile production line

,

PVC decking extrusion machine
Informasi dasar
Tempat asal: Jiangsu Zhangjiagang
Nama merek: LB
Sertifikasi: CE,ISO
Nomor model: LB-95/33
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Film atau kotak kayu
Waktu pengiriman: 45 hari
Menyediakan kemampuan: 15 set per bulan
Deskripsi Produk
Processing Workflow
The complete production process follows this sequence: PVC powder + additives → mixing material feeder → twin screw extruder → mould and calibrator → vacuum forming table → haul-off machine → cutting machine → discharge rack.
Key Features
  • Conical twin screw extruder compatible with both PVC powder and granules
  • Integrated degassing system for superior material plasticization
  • High-speed mould technology for enhanced productivity

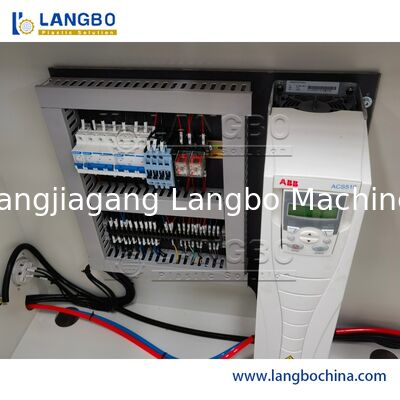

  • Advanced PLC control system for centralized production management
Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Production Components

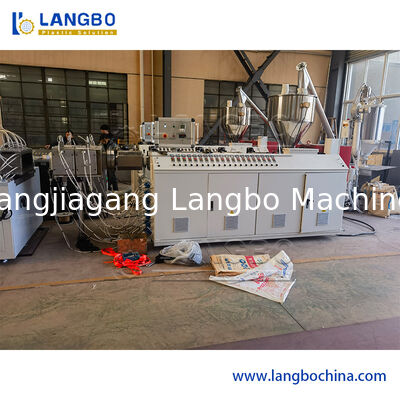

Single Screw Extruder
Features specially designed screws optimized for processing dry PVC powder blends. The conical twin screw extruder ensures homogeneous mixture, superior plastification, and efficient material conveying. Powered by permanent magnet synchronous motors for high energy efficiency.
WPC/UPVC/PVC/PE/PP Wall Panel/Window/Door/Decking/Fence/Windowsill Wood Plastic Flooring Profile Extrusion Production Line 0

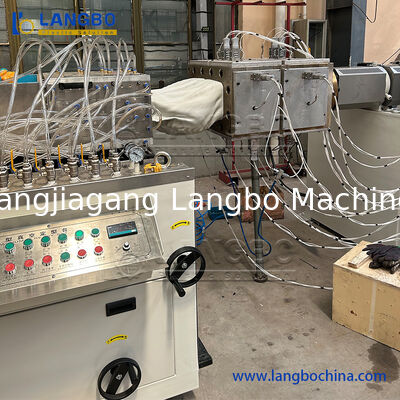

Plate Mould
Double strand mould configuration for PVC trunking production significantly increases output. Advanced channel design provides exceptional flow performance and produces profiles with high dimensional precision.
WPC/UPVC/PVC/PE/PP Wall Panel/Window/Door/Decking/Fence/Windowsill Wood Plastic Flooring Profile Extrusion Production Line 1

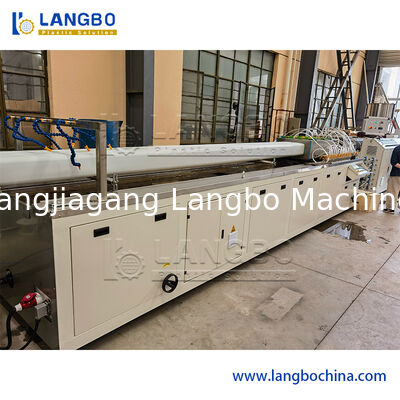

Calibration Table
Constructed with stable steel frame and SUS 304 stainless steel body. Features multi-dimension position adjustment system with precisely arranged water pumps and vacuum calibrators for rapid shaping and cooling of PVC profiles.
WPC/UPVC/PVC/PE/PP Wall Panel/Window/Door/Decking/Fence/Windowsill Wood Plastic Flooring Profile Extrusion Production Line 2
Haul-off System
Provides uniform force distribution across all caterpillars with sufficient hauling capacity. High-quality rubber components and pneumatic pressure system enable easy adjustment and product protection.
WPC/UPVC/PVC/PE/PP Wall Panel/Window/Door/Decking/Fence/Windowsill Wood Plastic Flooring Profile Extrusion Production Line 3

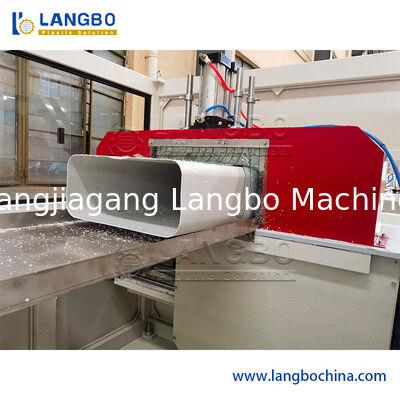

Cutting Unit
Ensures perfect finishing with clean, precise cuts on the final product.
WPC/UPVC/PVC/PE/PP Wall Panel/Window/Door/Decking/Fence/Windowsill Wood Plastic Flooring Profile Extrusion Production Line 4 WPC/UPVC/PVC/PE/PP Wall Panel/Window/Door/Decking/Fence/Windowsill Wood Plastic Flooring Profile Extrusion Production Line 5
