Automatic PPR Pipe Extrusion Line | 20–110mm Stable Production

1 Set
MOQ
Negotiable（USD EUR）
harga
Automatic PPR Pipe Extrusion Line | 20–110mm Stable Production
fitur Galeri Deskripsi Produk Peringkat & Ulasan Quote request suatu
fitur
Spesifikasi
Metode Pengepakan: Paket kayu dan film
Kisaran kapasitas: 500KG/JAM
Motor: Merek Siemens
voltase: 380V atau Disesuaikan
Desain Sekrup: Sekrup tunggal
Zona pemanasan: 4 - 6 zona
Panjang Mesin: 10m - 15m
Kisaran diameter pipa: 16mm - 110mm
Merek Motor: Siemens Asli
Tangki vakum: panjang 8 meter
Informasi dasar
Tempat asal: Zhangjiagang
Nama merek: LB
Sertifikasi: CE/ISO
Nomor model: LB-110
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Paket Biasa
Waktu pengiriman: 45 hari -hari Woking
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 15 set per bulan
Deskripsi Produk

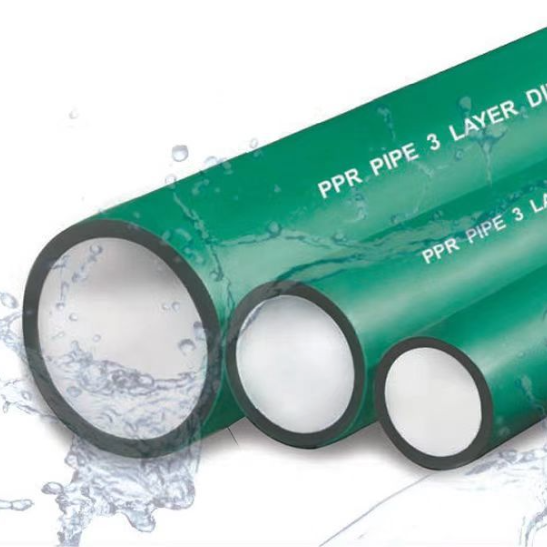

                                                           Automatic PPR Pipe Extrusion Line | 20–110mm Stable Production

Co-Extrusion Process

Co-extrusion involves sending two or more molten raw materials through a single die to produce multi-layer pipes with various colors or wall thicknesses. This process combines multiple plastics to create materials with distinct properties, opening new frontiers in material engineering and addressing complex manufacturing needs. Co-extrusion also reduces costs by incorporating recycled and reground scrap within virgin material for applications like handrails, fences, tubing, structural components, and air-blown food containers.

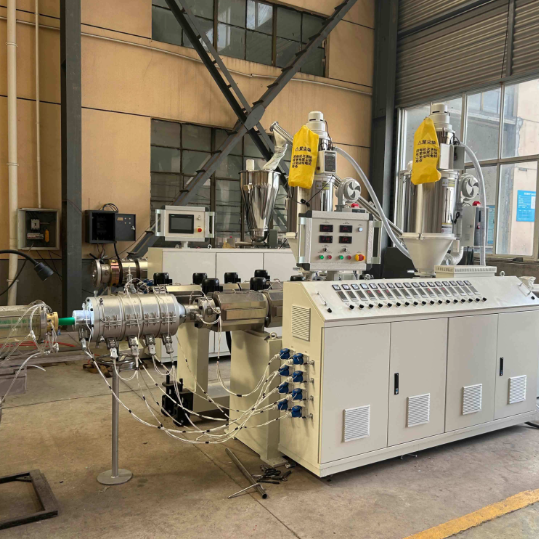

Complete Extrusion Line Components
  • Single screw extruder
  • Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes

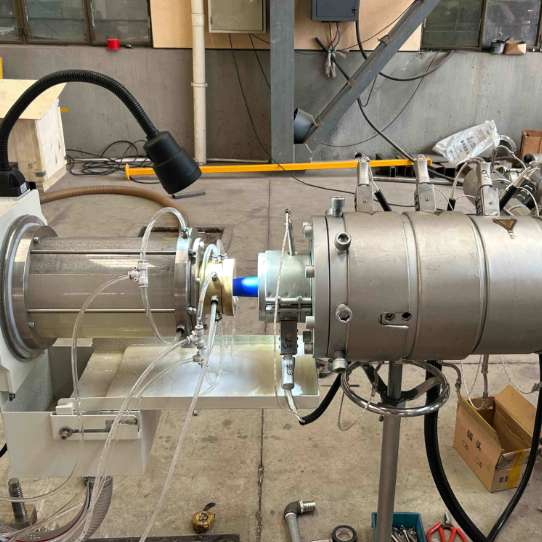

  • Die head
  • Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
  • Cooling tank: Configured with one, two, or three tanks depending on diameter
  • Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter
  • Cutter: Options include no-scraps cutter or planetary cutter designs
  • Coiler/Tipping chute

SPECIFICATIONS

                Model         Pipe diameter(mm)                   Extruder         Extruder power(kw)           Capacity(kg/hr)
                LB-63                 16-63                   SJ65/33                    55AC                150
                LB-110                 20-110                   SJ75/33                    75AC                180




Automatic PPR Pipe Extrusion Line | 20–110mm Stable Production 0Automatic PPR Pipe Extrusion Line | 20–110mm Stable Production 1Automatic PPR Pipe Extrusion Line | 20–110mm Stable Production 2Automatic PPR Pipe Extrusion Line | 20–110mm Stable Production 3
