PPR Pipe Making Machine Solving Deformation And Fitting Issues In Hot Water Systems

1 Set
MOQ
Negotiable（USD EUR）
harga
PPR Pipe Making Machine Solving Deformation And Fitting Issues In Hot Water Systems
fitur Galeri Deskripsi Produk Peringkat & Ulasan Quote request suatu
fitur
Spesifikasi
tipe ekstruder: Extruder sekrup tunggal
Otomatis: Otomatis penuh
metode pendinginan: Tangki pendingin air
Kisaran kapasitas: 500KG/JAM
Aplikasi: Produksi pipa PPR untuk sistem perpipaan dan pemanas
Catu daya: 380V, 50Hz, 3 fase
Kekuatan: 30KW
Dimensi mesin: Panjang 10m x Lebar 1,5mx Tinggi 2m
Menyoroti:

PPR pipe making machine for hot water

,

PPR pipe extrusion line with deformation solution

,

PPR pipe fitting machine for high temperature
Informasi dasar
Tempat asal: Zhangjiagang
Nama merek: LB
Sertifikasi: CE/ISO
Nomor model: LB-63
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Paket Biasa
Waktu pengiriman: 45 hari -hari Woking
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 15 set per bulan
Deskripsi Produk
PPR Pipe Making Machine Solving Deformation And Fitting Issues In Hot Water Systems
Extrusion Process

Multi-Layer pipes are produced by co-extrusion pipe line. The production line is a kind of special craft processes which can save the cost of raw material and make a series of pipes with functional features.

For Example, in order to save the cost of raw material, we can use the recycled material which is to be the middle layer to produce the PE thick wall pipes. For hot water supply pipes, the production line could not only have the PP-R Layer but also increase some other structure Layer including glass fiber, which attach the pipe to some excellent application features.

Complete Extrusion Line Components

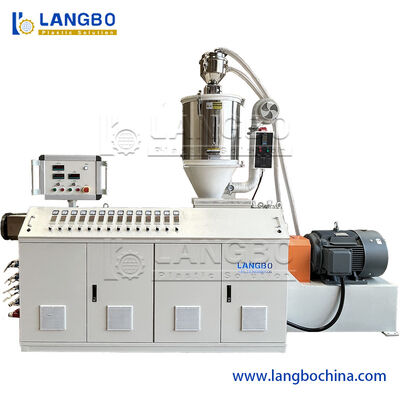

  • Single screw extruder
  • Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes
  • Die head

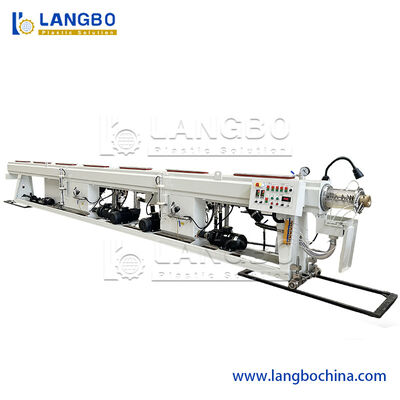

  • Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
  • Cooling tank: Configured with one, two, or three tanks depending on diameter
  • Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter

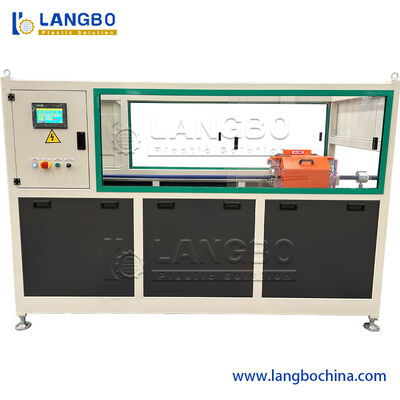

  • Cutter: Options include no-scraps cutter or planetary cutter designs
  • Coiler/Tipping chute
Specifications
Model Pipe Diameter (mm) Extruder Extruder Power (kw) Capacity (kg/hr)
LB-63 16-63 SJ65/33 55AC 150
LB-110 20-110 SJ75/33 75AC 180
PPR Pipe Making Machine Solving Deformation And Fitting Issues In Hot Water Systems 0

PPR Pipe Making Machine Solving Deformation And Fitting Issues In Hot Water Systems 1

PPR Pipe Making Machine Solving Deformation And Fitting Issues In Hot Water Systems 2

PPR Pipe Making Machine Solving Deformation And Fitting Issues In Hot Water Systems 3
