PVC Profile Making Machine With Co-extrusion Layer Improving Surface Gloss And Rough Finish

1 Set
MOQ
Negotiable(USD,EUR)
harga
PVC Profile Making Machine With Co-extrusion Layer Improving Surface Gloss And Rough Finish
fitur Galeri Deskripsi Produk Peringkat & Ulasan Quote request suatu
fitur
Spesifikasi
Produk: mesin ekstrusi pemegang tanda banner
Sistem kendali: Sistem kontrol PLC dengan antarmuka layar sentuh
Cetakan: Ukuran berbeda dengan cetakan berbeda
Bagian listrik utama: Merek terkenal internasional
Ukuran profil: Menurut gambar pelanggan
Lebar: 200-600mm
Orang bodoh: Profil die head yang dapat disesuaikan
Bahan tangki vakum: SUS304 KETEBALAN 3MM
voltase: 380V 50HZ 3Phase (Disesuaikan)
Pembayaran: T/T, L/C, Western Union
Menyoroti:

PVC profile co-extrusion machine

,

PVC extrusion line with gloss finish

,

PVC profile machine rough surface
Informasi dasar
Tempat asal: Zhangjiagang
Nama merek: LB
Sertifikasi: CE,ISO9001
Nomor model: LB-51/105
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: PAKET STANDAR
Waktu pengiriman: 45 HARI KERJA
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 15 set per bulan
Deskripsi Produk
PVC Profile Making Machine With Co-extrusion Layer
This specialized PVC profile production line is engineered to manufacture diverse PVC profiles with precision. Custom solutions and molds are developed based on specific drawing sections of PVC profiles, improving surface gloss and rough finish through co-extrusion technology.
Production Capabilities

The extrusion line incorporates a conical twin screw extruder compatible with both PVC powder and granules. Features include degassing system for superior material plasticization and high-speed mold technology for enhanced productivity.

Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Component Details
Conical Twin Screw Extruder
  • Specially engineered screws designed for processing dry PVC powder blends
  • Features permanent magnet synchronous motor for high energy efficiency
  • PLC control system for centralized production line management
Plate Mould System
  • Double strand mold configuration for PVC trunking production
  • Optimized channel design ensuring high flow performance
  • Precision profile manufacturing capabilities
Haul-off & Cutting Combination
  • Even force distribution across surfaces with high-quality rubber components
  • Pneumatic pressure system for easy adjustment and product protection
  • Customizable cutting options including swarfless and saw cutting methods

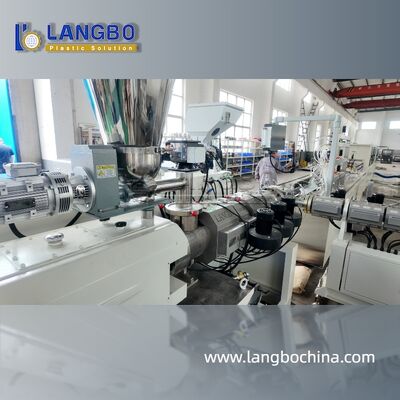

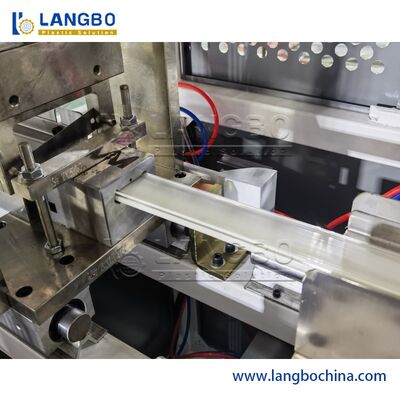

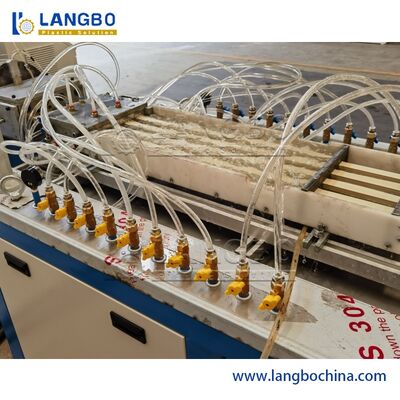

Production Line Images
PVC Profile Making Machine With Co-extrusion Layer Improving Surface Gloss And Rough Finish 0 PVC Profile Making Machine With Co-extrusion Layer Improving Surface Gloss And Rough Finish 1 PVC Profile Making Machine With Co-extrusion Layer Improving Surface Gloss And Rough Finish 2 PVC Profile Making Machine With Co-extrusion Layer Improving Surface Gloss And Rough Finish 3 PVC Profile Making Machine With Co-extrusion Layer Improving Surface Gloss And Rough Finish 4
