PVC Pipe Slotting Machine With High-speed Rotary Structure Reducing Rough Slot Edges

1 Set
MOQ
Negotiable (USD EUR)
harga
PVC Pipe Slotting Machine With High-speed Rotary Structure Reducing Rough Slot Edges
fitur Galeri Deskripsi Produk Peringkat & Ulasan Quote request suatu
fitur
Spesifikasi
Aplikasi: Memotong celah pada pipa PVC
Tipe mesin: Mesin slot
Diameter Sekrup: 80/156
Pisau Meninju: SKDII
Ukuran Pipa yang Sesuai: 3-20 inci
Ukuran slotting: Disesuaikan
kedalaman slot: 0-10 mm
Nilai Otomatis: Penuh secara otomat
Desain Sekrup: Sekrup kembar dan laras
voltase: 220V/380V
Menyoroti:

PVC pipe slotting machine high-speed rotary

,

PVC pipe slotter reduced rough edges

,

industrial PVC pipe slotting machine
Informasi dasar
Tempat asal: ZHANGJIAGANG, JIANGSU
Nama merek: LB
Sertifikasi: CE ISO9001
Nomor model: LB-315
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Paket Biasa
Waktu pengiriman: 30 hari kerja
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 15 set per bulan
Deskripsi Produk
        PVC Pipe Slotting Machine With High-speed Rotary Structure Reducing Rough Slot Edges
Product Overview

This automatic slotting machine is specifically designed for PVC and PE pipe slotting operations, widely utilized in playgrounds, parks, and lawn drainage or sewage systems.

Key Advantages
  • Dual Configuration Options: Available in both in-line and out-of-line models to suit various production setups
  • Integrated Dust Removal: Built-in dust removal equipment maintains clean workshop environment
  • High-Speed Operation: Completes pipe grooving process in just 3-5 minutes
  • Advanced Control System: PLC-controlled for fully automatic operation and easy user interface
  • Flexible Blade Configuration: Multiple knife shaft designs (1/2/3/4 groups) accommodate different slotting requirements
Technical Specifications
Model Diameter Center Height Pipe Length Air Pressure Total Power
LB160 110-160mm 700-900mm 3-6m 0.6MPa 11KW
Main Motor Servo Motor Overall Size Blade Material
3KW 0.75KW 6000×1250×1800mm W18Cr4V
Performance Features

High-Accuracy and High-Speed Performance: Engineered for precision and efficiency, making it ideal for hotels, garment shops, and construction applications.

Customizable Configuration: Can be tailored to meet specific voltage requirements for seamless integration into existing production lines.

Product Images

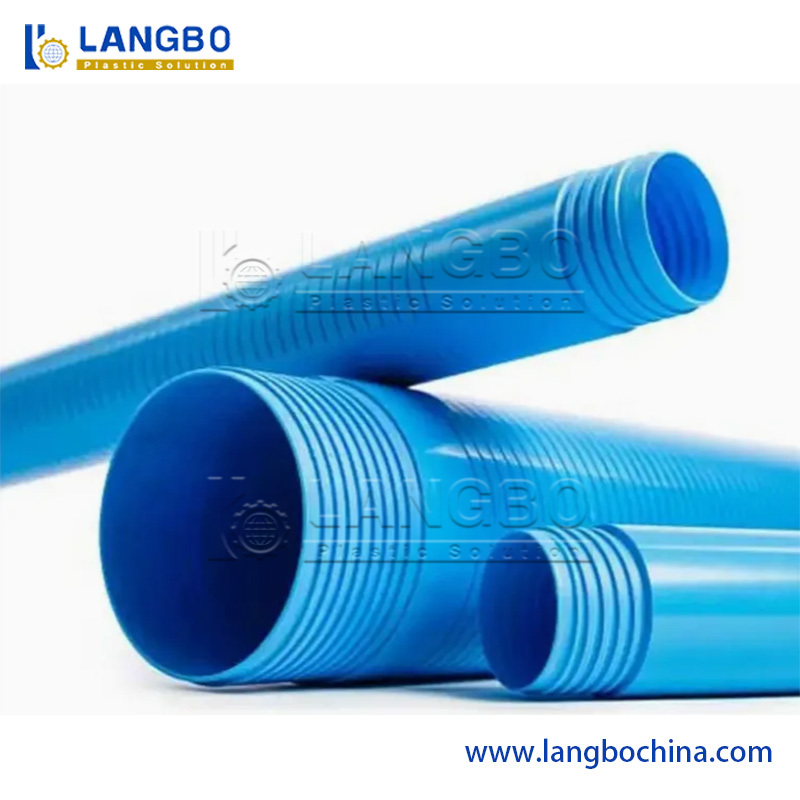

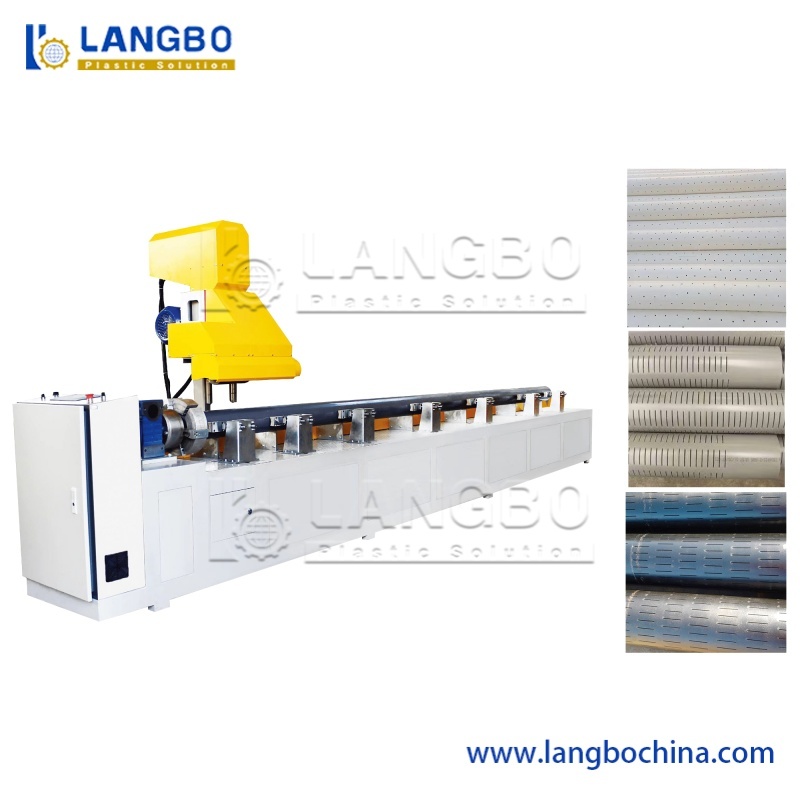

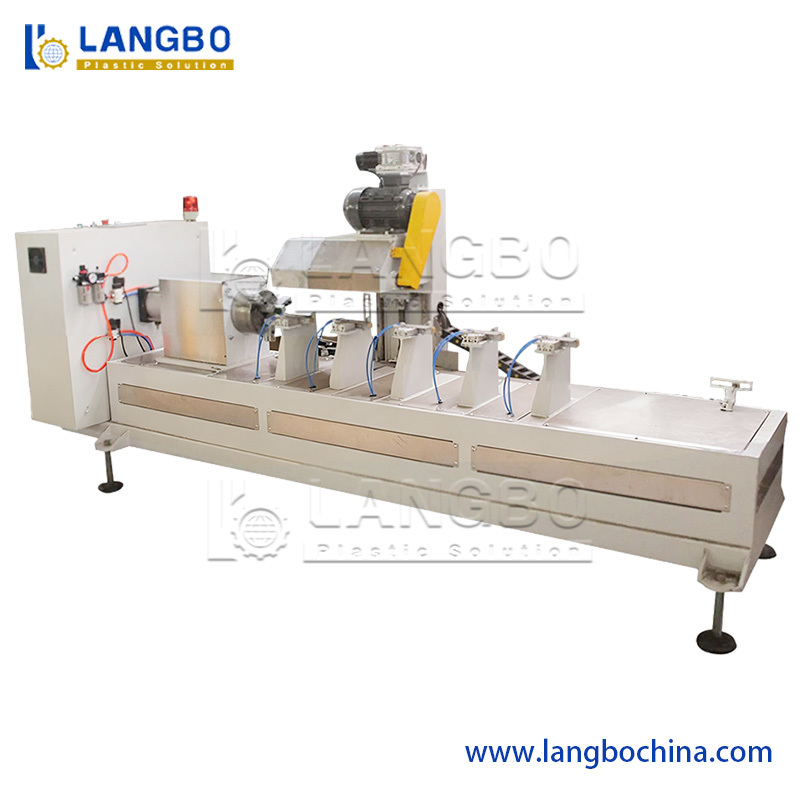

PVC Pipe Slotting Machine With High-speed Rotary Structure Reducing Rough Slot Edges 0

PVC Pipe Slotting Machine With High-speed Rotary Structure Reducing Rough Slot Edges 1

PVC Pipe Slotting Machine With High-speed Rotary Structure Reducing Rough Slot Edges 2

PVC Pipe Slotting Machine With High-speed Rotary Structure Reducing Rough Slot Edges 3
