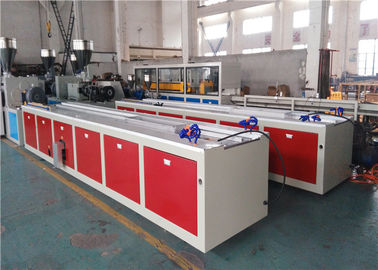

Garis Ekstrusi Panel Dinding PVC Efisiensi Tinggi Kontrol Otomatis Ukuran Profil 300MM
Detail Produk
| Model Extruder: | Ekstruder sekrup kembar kerucut | Ukuran profil: | MAKS. 300 MM |
|---|---|---|---|
| Tenaga motorik: | 37kw | bahan mentah: | PVC & TAMBAH |
| Pemotong: | Pemotong Gergaji | Kapasitas: | 200-250kg/jam |
| Voltase: | 380V 50HZ 3Phase (Disesuaikan) | Aplikasi: | Profil, Lembar |
| Layanan Purna Jual Disediakan: | Insinyur tersedia untuk melayani mesin di luar negeri, Instalasi lapangan, komisioning dan pelatihan | Jaminan: | 1 Tahun |
| Menyoroti |
pvc lini produksi lembaran marmer,pvc lembar membuat mesin |
||
Deskripsi Produk
| komponen | Jumlah |
|---|---|
| SJSZ-XX Twin Screw Extruder dengan Sistem Pemanfaatan Otomatis | Satu set |
| Die Mold & Stok Mold | Satu set |
| Tabel Kalibrasi Vakum | Satu set |
| Unit Pengangkut dan Pemotong | Satu set |
| Stacker | Satu set |
| Sistem Kontrol Listrik | Satu set |
- Conical Twin Screw Extruder:Desain sekrup dan tong khusus untuk pencampuran yang sempurna dan pengolahan material yang homogen.Sistem otomatisasi PLC dan panel sentuh opsional tersedia.
- Cetakan:Dirancang untuk kontrol viskositas yang ideal dan pembentukan profil yang tepat.
- Tabel Kalibrasi:Dirancang khusus untuk karakteristik profil tertentu. Fitur stainless steel area kontak air untuk mencegah korosi dan memastikan daya tahan jangka panjang.

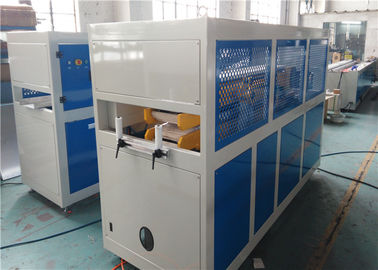

- Crawler Track Haul-off:Desain variabel berdasarkan pengukuran profil. Kontrol inverter standar memungkinkan penyesuaian kecepatan yang tepat relatif terhadap kecepatan output material.
- Saw Cutter:Pemotongan efisiensi tinggi dengan gerakan meja gergaji dan penjepit yang disinkronkan. Sistem pengumpulan debu terintegrasi secara efektif menghilangkan serangga dan debu dari area produksi.
- Unit informasi:Operasi silinder pneumatik untuk kinerja yang andal.
| Model | Ukuran profil (mm) | Model ekstruder | Kekuatan motor (kw) |
|---|---|---|---|
| LB-108 | 108 | SJZ51/105 | 18.5 AC |
| LB-180 | 180 | SJZ55/110 | 22 AC |
| LB-300 | 300 | SJZ65/132 | 37 AC |
| LB-600 | 600 | SJZ80/156 | 55 AC |
| LB-800 | 800 | SJZ80/156 | 55 AC |
| LB-1240 | 1240 | SJZ92/188 | 110 D |
Sorotan Produk

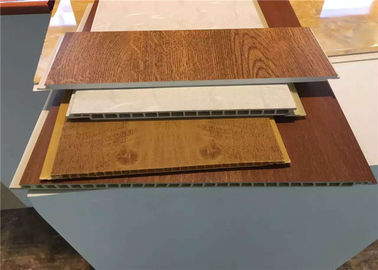

Lini Ekstrusi Panel Dinding PVC Efisiensi Tinggi dengan Kontrol Otomatis Jalur ekstrusi panel dinding dan panel langit-langit PVC lengkap dengan sistem kontrol otomatis dan mampu menangani profil hingga 300mm. Konfigurasi Garis Lengkap komponen Jumlah SJSZ-XX Twin Screw Extruder dengan Sistem ...
