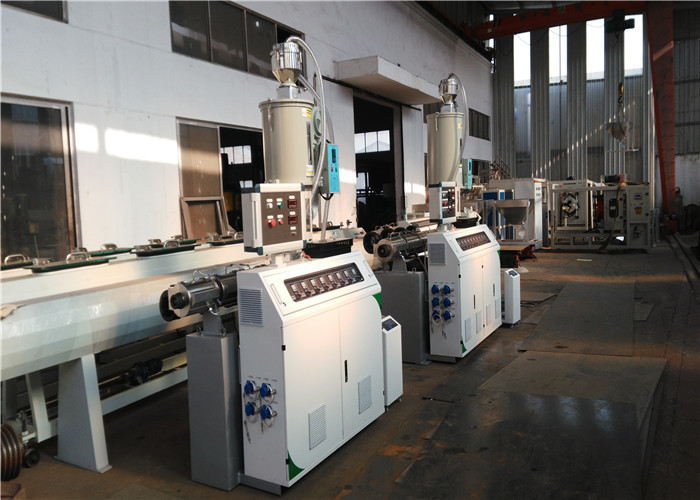

ISO Single Screw PE Pipe Extrusion Line Dengan PLC Kontroler Otomatis
Detail Produk
| Warna: | Hitam atau putih | Diameter pipa: | 16-630MM |
|---|---|---|---|
| Kecepatan Produksi: | 1-8m/menit | Kapasitas Produksi: | 120-800kg/jam |
| Kondisi: | Baru | Outlet: | Outlet tunggal |
| Desain Sekrup: | Sekrup tunggal | Sertifikasi: | CE,ISO |
| Voltase: | 380V 50HZ 3Phase (Disesuaikan) | Nilai Otomatis: | Penuh-Otomatis |
| Layanan Purna Jual Disediakan: | Insinyur tersedia untuk mesin layanan di luar negeri, dukungan online, dukungan teknis video, instal | Jaminan: | 1 Tahun |

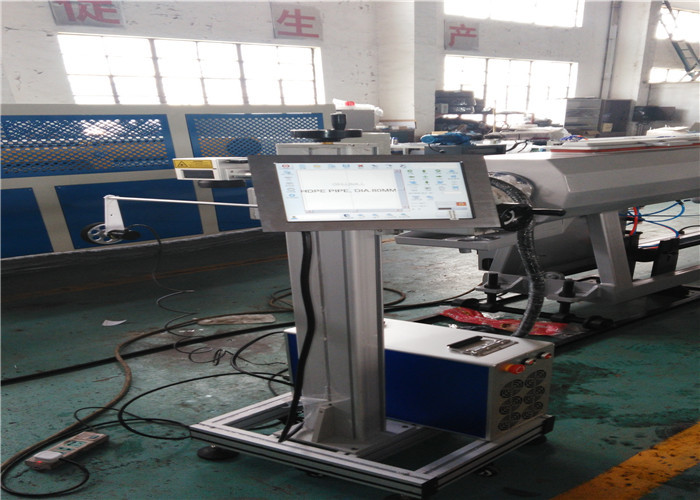

| Kontrol: | PLC+Layar Sentuh | ||
| Menyoroti |
pipa pe lini produksi,mesin ekstrusi pipa plastik |
||
Deskripsi Produk
- Sekrup PE efisiensi tinggi dengan tabung pakan berceruk dan pendingin jaket air untuk kapasitas ekstrusi maksimum
- Kepala mesin komposit keranjang memastikan stabilitas ekstrusi pada kecepatan tinggi dengan tegangan minimal
- Teknologi ukuran vakum rongga ganda dan tangki pendingin semprot untuk tingkat produk jadi yang lebih tinggi
- Traktor multi-pedrail dengan penggerak motor pusat untuk sinkronisasi sempurna dan bulat pipa
- Mesin pemotong berkecepatan tinggi, berisik rendah dengan sistem pengelolaan sampah yang efisien
| Jangkauan pipa | 16-63mm | 20-110mm | 75-160 mm | 90-250mm | 110-315mm | 160-450mm | 315-630mm | 500-800 mm |
|---|---|---|---|---|---|---|---|---|
| Extruder | ¢ 45mm | ¢ 65mm | ¢ 75mm | ¢ 75mm | ¢ 90mm | ¢ 90mm | ¢ 120mm | ¢ 150mm |
| Kekuatan ekstruder | AC30KW | DC75KW | DC110KW | DC110KW | DC160KW | DC160KW | DC280KW | DC335KW |
| Kapasitas Ekstrusi | 60-100kg | 100-150 kg | 250-300kg | 250-300kg | 350-400kg | 350-400kg | 650-700kg | 850-900kg |
| Kecepatan maksimum. | 10m/menit | 6m/menit | 6m/menit | 6m/menit | 3m/menit | 1.2m/menit | 00,9m/menit | 0.7m/menit |
Saw Cutter:Untuk pipa 16-63mm dengan kecepatan pemotongan yang disesuaikan
Pemotong Guillotine:Sistem pemotongan bebas debu untuk aplikasi pipa khusus
Sorotan Produk
Jalur ekstrusi pipa PE sekrup canggih ini dilengkapi pengontrol otomatis PLC untuk pembuatan pipa polietilen kepadatan tinggi yang presisi tinggi.Sistem memberikan kinerja yang luar biasa dengan diameter pipa mulai dari 16-630mm, kecepatan produksi 1-8m/menit, dan kapasitas 120-800kg/jam. Disertifik...
