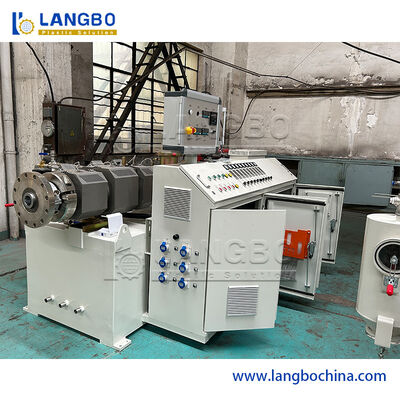

300mm PVC Profil Ekstrusi Line Dengan Conical Double Screw Extruder
Detail Produk
| Keluaran: | 120Kg/jam | Kecepatan Produksi: | MAKS. 6m/menit |
|---|---|---|---|
| bahan mentah: | PVC & TAMBAH | Pemotong: | Pemotong Gergaji |
| Desain Sekrup: | sekrup kembar kerucut | Voltase: | 380V 50HZ 3Phase (Disesuaikan) |
| Layanan Purna Jual Disediakan: | Insinyur tersedia untuk melayani mesin di luar negeri, Instalasi lapangan, komisioning dan pelatihan | Nilai Otomatis: | Otomatis |
| Jaminan: | 12 bulan setelah pemasangan di tempat lokal | Warna: | Depan atas permintaan pelanggan |
| Menyoroti |
pvc lini produksi lembaran marmer,pvc lembar membuat mesin |
||
Deskripsi Produk
- Perlindungan partisi babi
- Kompatibilitas kotak bersalin
- tahan api dan tahan api
- Intensitas tinggi dengan ketahanan erosi dan sifat anti-penuaan
- Instalasi yang nyaman
- Isolasi panas, tahan kelembaban, tahan suara, dan tahan air
- Mudah diatur dan dibersihkan
- Isolasi listrik yang sangat baik dan stabilitas termal
- Kekuatan mekanik yang superior untuk memotong, menggergaji, dan menancap
- Fleksibilitas yang baik untuk mudah dibentuk tanpa rapuh
- Desain ringan mengurangi biaya tenaga kerja dan beban kerja instalasi
| Model | LB-200 | LB-300 | LB-600 |
|---|---|---|---|
| Max. Lebar | 220 mm | 350 mm | 600 mm |
| Model ekstruder | SJSZ-51/105 | SJSZ-55/110 | SJSZ-65/132 |
| Kekuatan motor | 18.5kw | 22KW | 37KW |
| Maks. output | 120kg/jam | 150kg/jam | 250 kg/jam |
| Udara yang Dikompres | 0.2m3/jam | 0.3m3/jam | 0.5m3/jam |
| Kekuatan instalasi | 45KW | 55KW | 67KW |
| Model ekstruder | SJZ55/110 | SJZ65/132 | SJZ80/156 | SJZ92/188 |
|---|---|---|---|---|
| Daya mesin utama | 22kw | 37kw | 55kw | 110kw |
| Mesin Bantuan | YF200 | YF240 | YF300 | YF600/YF900/YF1200 |
| Lebar Produksi | 200 | 240 | 300 | 600/900/1200 |
| Kekuatan vakum | 4kw × 1 | 5.5kw × 1 | 5.5kw × 1 | 5.5kw × 2 / 5.5kw × 1 7.5kw × 1 |
| Pompa air | 2.2kw | 2.2kw | 4kw | 5.5kw / 7.5kw |
| Kecepatan Tarikan | 0-5m/menit | 0-5m/menit | 0-5m/menit | 0-3m/menit / 0-2,5m/menit |
| Kapasitas | 150kg/jam | 250 kg/jam | 250 kg/jam | 350 kg/jam / 600 kg/jam |
