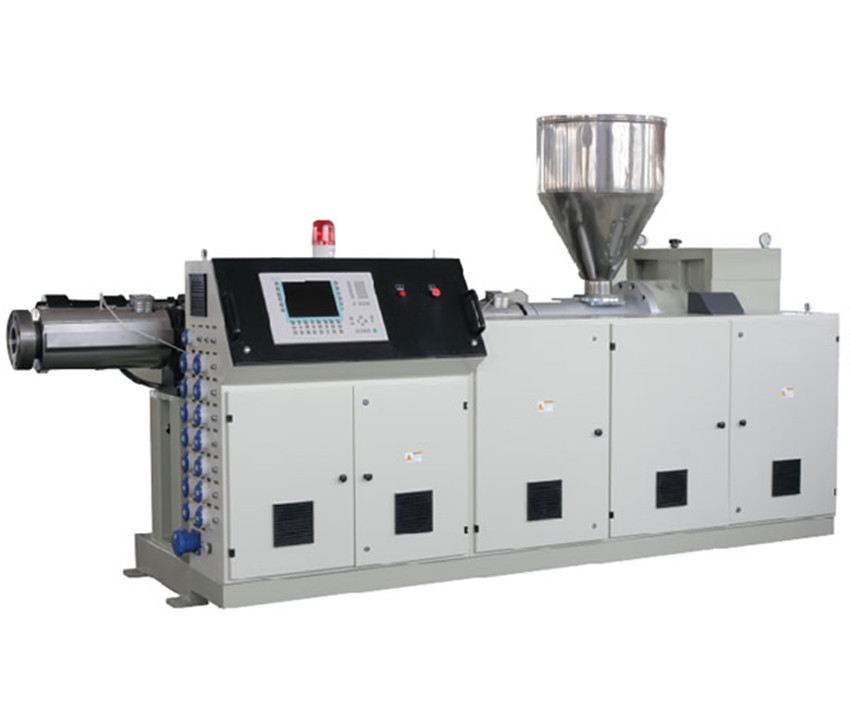

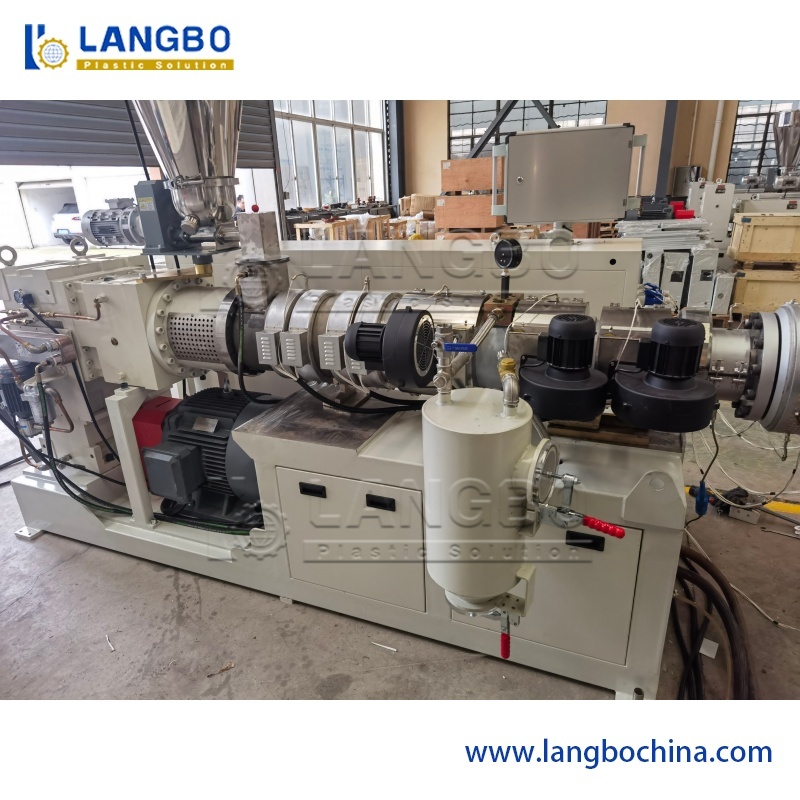

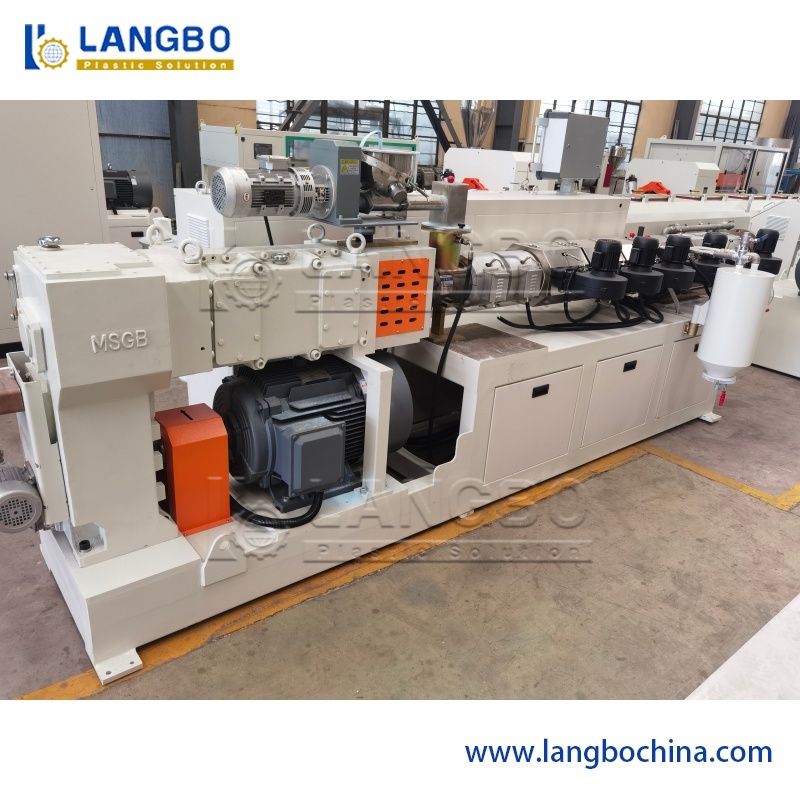

New Single Screw Extruder Kapasitas Produk Energi Tinggi - Efisien
Detail Produk
| Voltase: | 318V,415V | Motor: | SIMENS |
|---|---|---|---|
| Nama: | Extruder sekrup tunggal | Berat: | Model |
| Desain Sekrup: | Sekrup tunggal | Nilai Otomatis: | Otomatis |
| Menyoroti |
mesin extruder plastik,mesin extruder daur ulang plastik |
||
Deskripsi Produk
Daftar produk perusahaan:
1. Single-cast, extruder twin-putar
2. Plastik (PVC, PC, PS, PET, PE, PP) lembar,
papan, lini produksi profil
3. Profil jalur produksi plastik kayu
4. Plastik (PVC, PC, PS, PET, PE, PP, dll.) Pipa produksi
5. Proyek turn-key untuk lembaran plastik, profil, proyek produksi pipa
6. Mixer, crusher, grinder, mold, chiller, dll., Mesin bantu
PVC, PE, PP, PS, ABS, PA, PMMA, PET ETC ekstruder sekrup tunggal
Rincian ekstruder sekrup tunggal:
- terutama untuk mengekstrusi PE, PP, PS dan ABS plastik termoplastik.
- Dikombinasikan dengan mesin pembantu yang sesuai (termasuk kepala cetakan), ia dapat memproses banyak produk plastik: film, pipa, batangan, pelat, kawat, dan isolasi dengan kabel.
- dapat digunakan untuk granulasi.
- Ekstruder sekrup tunggal mengadopsi penggerak roda gigi involute, itu terutama fitur desain canggih, kualitas tinggi, plasticization sangat baik, konsumsi energi rendah, kebisingan rendah, operasi yang stabil, kapasitas pemuatan besar, umur panjang, dll.
- , Pengontrol suhu adalah Japanese RKC.Contactor . Sistem kontrol kecepatan DC (Eurothrm) .Semua konverter DC digital.
- Peredam kecepatan: Gigi dan komponen kelas sumbu telah menggunakan kualitas material baja paduan kekuatan tinggi.
- dirancang khusus untuk kebutuhan pelanggan. Kedalaman nitridasi 0,5—0.6mm, kekerasan HV740—940.
- Barrel mengadopsi feed dan struktur perangkat pendingin air untuk all-in-one, dengan paksa makan Groove.
Model SJW45 / 33 SJW60 / 33 SJW75 / 33 SJW90 / 33 SJW120 / 33 SJW150 / 33 Diameter sekrup (mm) 45 60 75 90 120 150 L / D 33: 1 33: 1 33: 1 33: 1 33: 1 33: 1 Daya Transmisi (KW) 37 75 110 160 280 400 Tinggi Pusat 1000 1000 1100 1100 1100/1300 1300 Output (kg / jam) 50 80 150 200 300 400
OEM disambut
