Twin Screw WPC Pelletizing Extrusion Line Decking Board 350KG / H
Detail Produk
| MODEL EKSTRUDER: | Conical Twin Screw Extruder | UKURAN PROFIL: | 1240mm |
|---|---|---|---|
| Tenaga motor: | 55KW | bahan baku: | WPC & TAMBAH |
| Pemotong: | MELIHAT CUTTER | Kapasitas: | 300-350KG/JAM |
| Menyoroti |
Garis Ekstrusi Pelet WPC,Garis Ekstrusi WPC 350KG / H,Garis Ekstrusi Decking WPC Sekrup Kembar |
||
Deskripsi Produk
Twin Screw WPC Pelletizing Extrusion Line Decking Board 350KG/ H

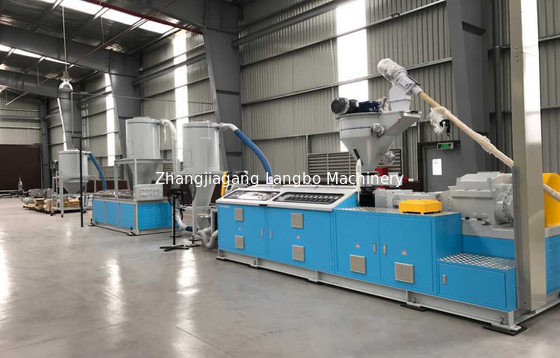

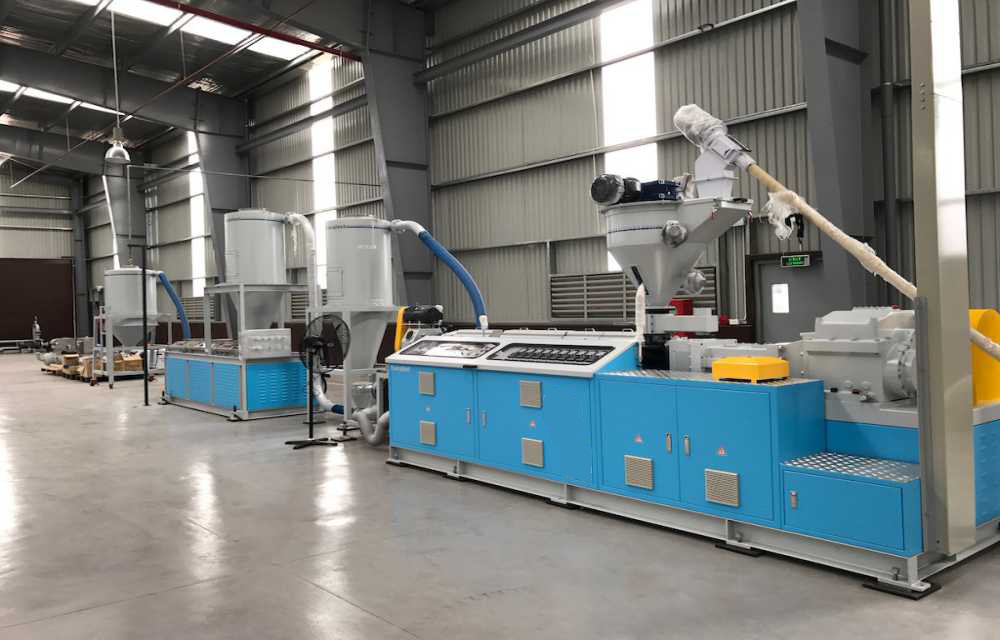

LINE MESIN EKSTRUSI PROFIL
LANGBO MACHINERY Profile Extrusion Line dapat menghasilkan produk plastik yang dapat diaplikasikan di berbagai industri, termasuk bahan bangunan, alat tulis, furnitur, peralatan medis, dan peralatan rumah tangga, dll.
LANGBO MACHINERY menawarkan jajaran lengkap sistem peracikan & pembuatan pelet sekrup tunggal dan kembar yang menampilkan ekstruder yang dirancang untuk aplikasi spesifik.
FITUR UTAMA AKTIFGARIS EKSTRASI WPC
1) Struktur sederhana dalam tipe linier, mudah dalam pemasangan dan pemeliharaan.
2) Mengadopsi komponen merek terkenal dunia maju di bagian pneumatik, bagian listrik dan bagian operasi.

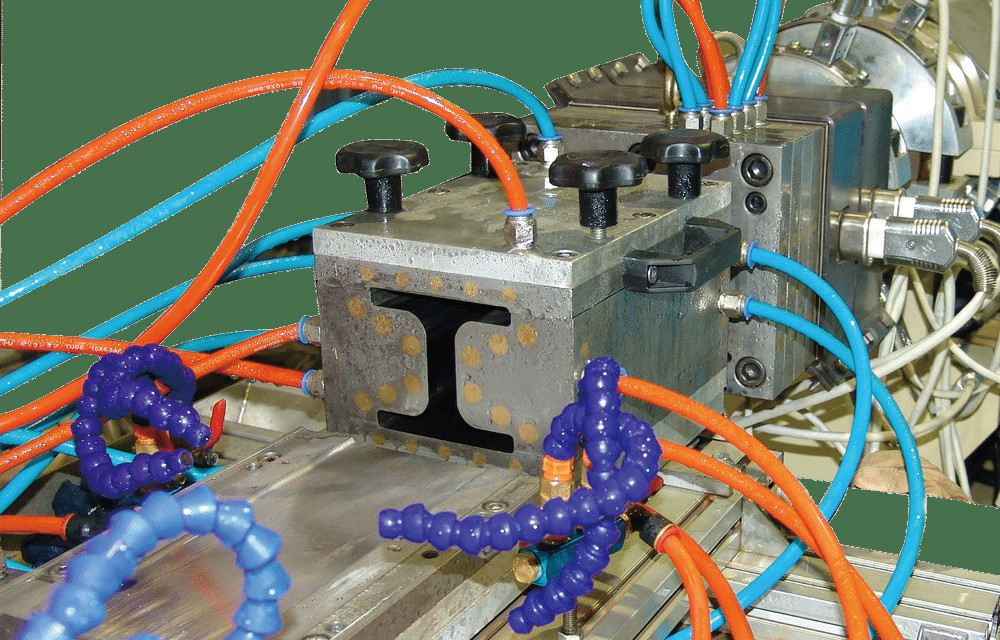

3) Suhu minyak tekanan tinggi mengontrol ekstrusi mati.
4) Berjalan dalam otomatisasi dan intelektualisme yang tinggi, tidak ada polusi.
5) Terapkan tautan untuk terhubung dengan konveyor udara, yang dapat langsung sejajar dengan mesin pengisi
SPESIFIKASI:
Tabel tersebut memberikan informasi umum untuk Produk standar.
Untuk penugasan teknis lebih lanjut yang disesuaikan, silakan hubungi kami.
| Model | SJZ45 | SJZ51 | SJZ65 | SJZ80 | SJZ92 |
| Diameter sekrup (mm) | 45/100 | 51/105 | 65/132 | 80/156 | 92/188 |
| Kecepatan putaran sekrup (r/min) | 4-45.5 | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 |
| Panjang efektif sekrup (mm) | 1000 | 1050 | 1430 | 1800 | 2520 |
| Daya motor utama (kW) | 15 | 22 | 37 | 55 | 90 |
| Daya pemanas barel (kW) | 12 | 18 | 24 | 36 | 48 |
| Kapasitas (kg/jam) | 95 | 110 | 250 | 380 | 520 |
| Tinggi tengah (mm) | 1000 | ||||
| Berat Bersih (kg) | 3000 | 3200 | 5000 | 6500 | 7500 |
Sorotan Produk
Twin Screw WPC Pelletizing Extrusion Line Decking Board 350KG/ H LINE MESIN EKSTRUSI PROFIL LANGBO MACHINERY Profile Extrusion Line dapat menghasilkan produk plastik yang dapat diaplikasikan di berbagai industri, termasuk bahan bangunan, alat tulis, furnitur, peralatan medis, dan peralatan rumah ...
