Garis Ekstrusi Profil WPC Profesional High Performance Low Noise
Detail Produk
| Kondisi: | Baru | Nomor model: | SJSZ-65/132 |
|---|---|---|---|
| Dimensi (L * W * H): | 20*2.5*2.5m | Bahan baku: | WPC |
| Desain sekrup: | Sekrup ganda | Lebar: | 200.240.300.400mm |
| Menyoroti |
lini produksi papan wpc,mesin profil wpc |
||
Deskripsi Produk

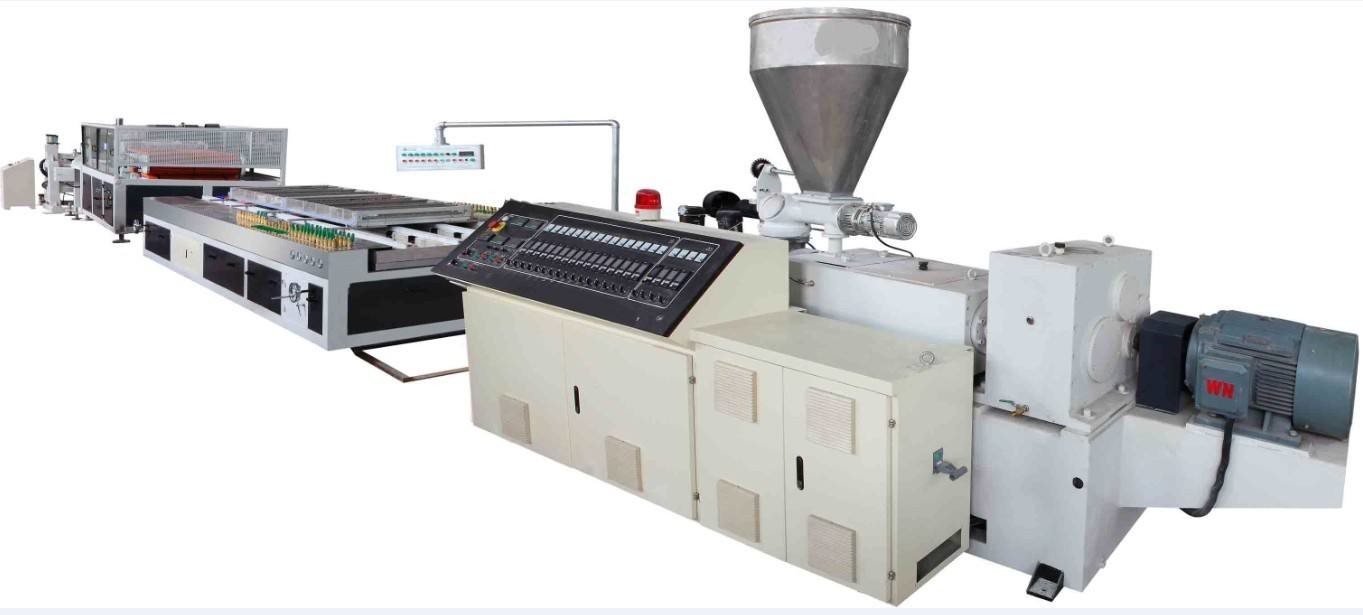

Lini produksi profil WPC plastik kayu PP / PE / PVC / mesin ekstrusi PVC
Pengantar:
Unit ini adalah lini profesional untuk memproduksi produk profil WPC (PP/PE), termasuk produk profil seri kursi, lantai dan tempat sampah, profil busa PVC dan pelat dekoratif untuk membuat pintu.
Garis menggabungkan teknologi domestik dan luar negeri, memiliki karakter tingkat otomatis tinggi, kinerja stabil, output besar, dan efisiensi tinggi.
Flow chart :
Bahan baku + tenaga kayu + aditif → pencampuran → granulasi → ekstruder sekrup kembar berbentuk kerucut → cetakan ekstrusi profil → cetakan dingin mati → dukungan kalibrasi vakum → pengangkutan → pemotong → rak → produk jadi
Daftar Lini Mesin:
1> Pengekstrusi sekrup ganda kerucut: SJSZ-65/132
2> Jendela WPC PP / PE / PVC, pintu, pagar, penghiasan, penyisipan, cetakan profil lantai
3> Sistem kalibrasi vakum
4> Mengangkat mesin
5> Mesin pemotong
6> Braket pelepasan
7> Pengaduk
8> Garis ekstrusi pelet / butiran WPC (Untuk bahan PP / PE)
9> Sander
10> Mesin emboss
11> Mesin penyikatan
12> Perangkat pelapis
Parameter teknis utama:
| Model Pengekstrusi | SJZ55/110 | SJZ65/132 | SJZ80/156 | SJZ92/188 | ||
| Tenaga motor mian | 22kw | 37kw | 55kw | 110kw | ||
| Lebar produk |
200
|
240 | 300 | 600 | 900 | 1200 |
| kekuatan vakum | 4kwX1 | 5.5kwX1 | 5.5kwX1 | 5.5kwX2 | 5.5kwX1 7.5kwX1 | 5.5kwX1 7.5kwX1 |
| pompa air | 2.2kw | 2.2kw | 4kw | 5.5kw | 7.5kw | 7.5kw |
| kecepatan pengangkutan | 0-5m/mnt | 0-5m/mnt | 0-5m/mnt | 0-3m/mnt | 0-2.5m/mnt | 0-2.5m/mnt |
| kapasitas | 70kg/jam | 110kg/jam | 110kg/jam | 170kg/jam | 300kg/jam | 300kg/jam |
| model | YF200 | YF240 | YF300 | YF400 |
| lebar profil (mm) | 200 | 240 | 300 | 400 |
| tinggi pengangkutan (mm) | 150 | 150 | 150 | 150 |
| total daya bantu (kw) | 18 | 27 | 33 | 30 |
| kompresi udara (Mpa) | 0.6 | 0.6 | 0.6 |
0.6 |
Jika bahan bakunya adalah PE atau PP, Anda perlu mencampur bubuk kayu + partikel PP / PE bersama-sama, dan kemudian memasukkannya ke dalam garis pelet, akhirnya mendapatkan pelet plastik kayu akhir.
