Populer Mudah Dioperasikan WPC Profil Ekstrusi Line Konsumsi Energi Rendah
Detail Produk
| Kondisi: | Baru | Nomor model: | SJZ-80A |
|---|---|---|---|
| Dimensi (l*w*h): | 5800mm*1200mm*2100mm | bahan mentah: | WPC |
| Desain Sekrup: | Sekrup ganda | Kapasitas Maks: | 300kg/jam-900kg/jam opsional |
| Menyoroti |
lini produksi papan wpc,mesin profil wpc |
||
Deskripsi Produk
- Mesin pencampuran
- Pengumpan Matahari
- Pengekstrusi Sekrup Kembar

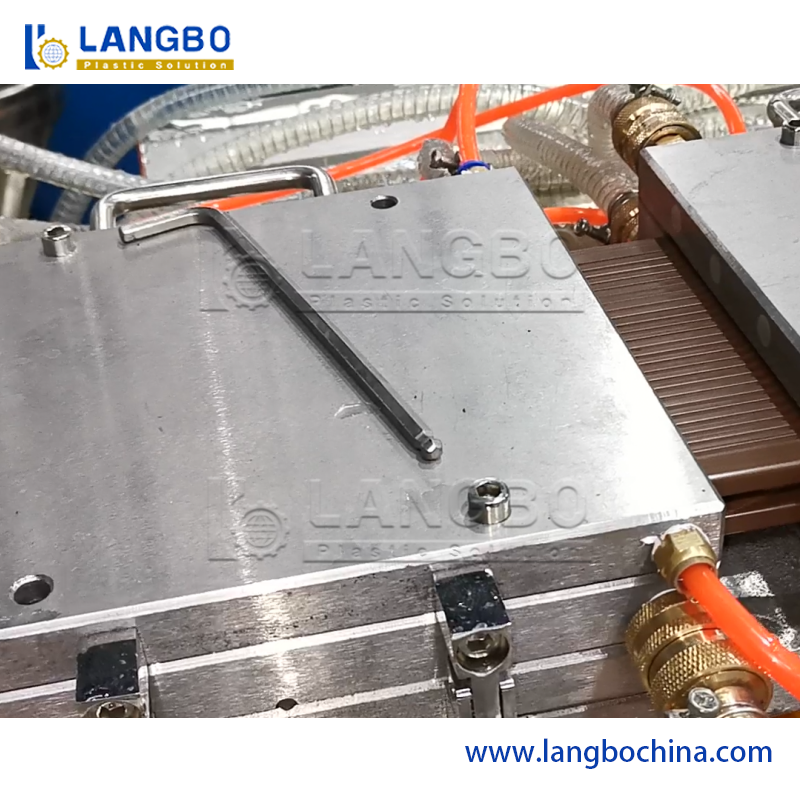

- Cetakan profil khusus

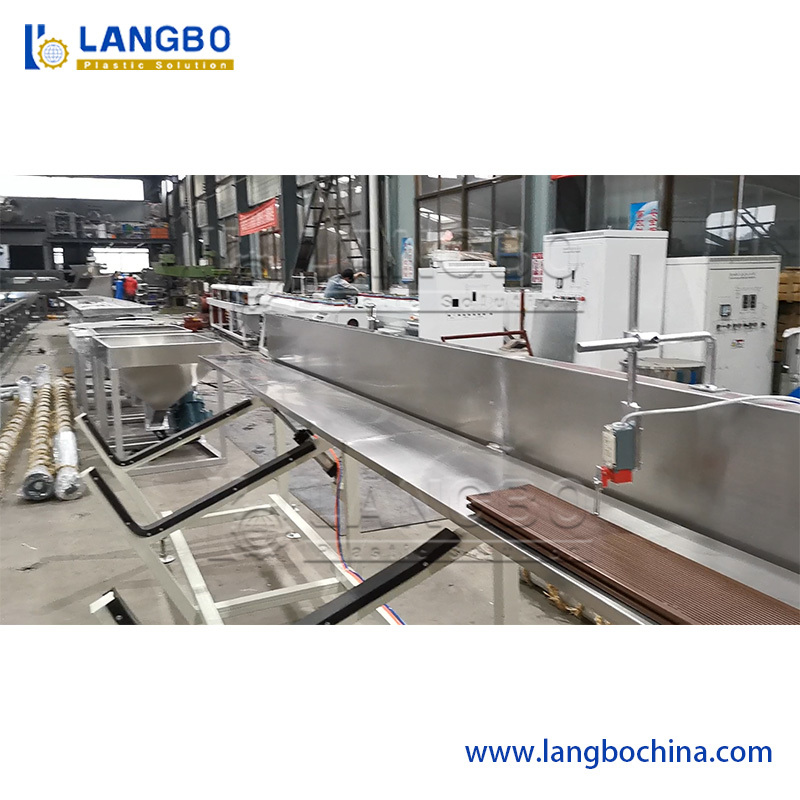

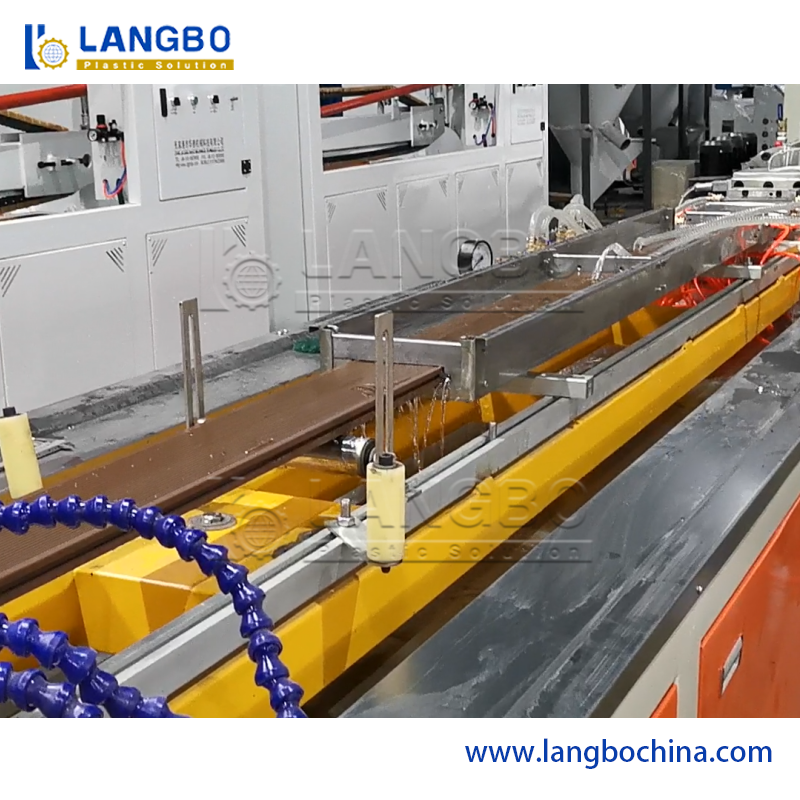

- Tabel Kalibrasi Vakum
- Mengangkat Mesin

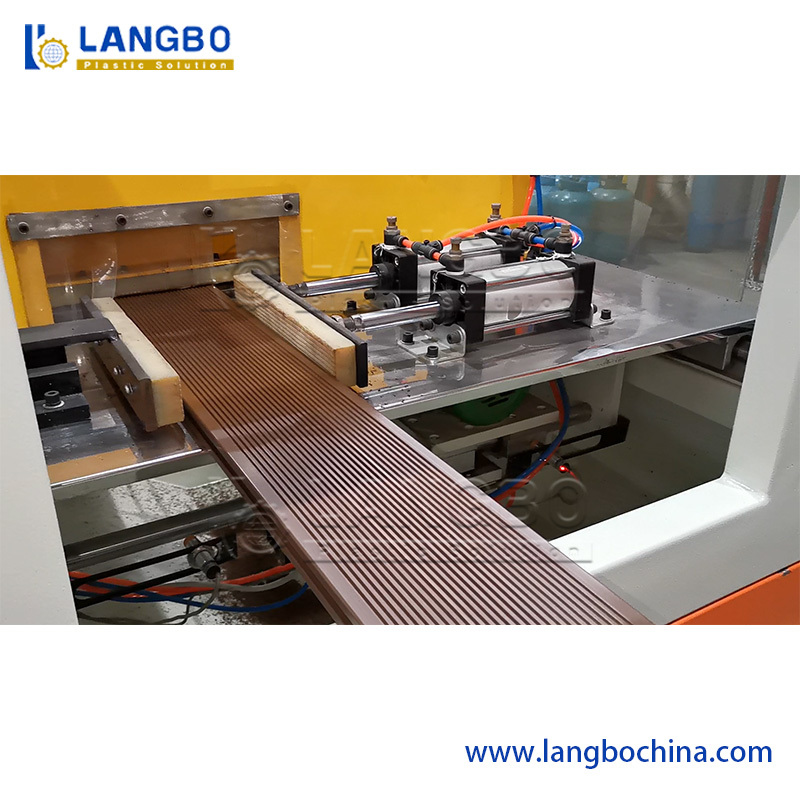

- Mesin pemotong
- Stacker

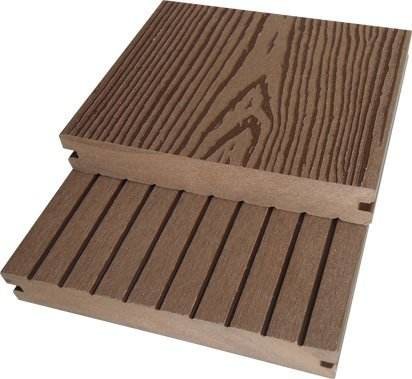

- Menghasilkan produk WPC bernilai tinggi menggunakan 90% limbah plastik dan bahan serat alam
- Produksi yang fleksibel dari berbagai spesifikasi dengan mengubah cetakan
- Spesialisasi HGMS kerucut kembar sekrup ekstruder untuk pencampuran bahan yang optimal
- Konverter frekuensi kecepatan ABB dan
- Pengontrol suhu RKC dan Omron
- Teknologi ekstrusi satu langkah yang hemat energi

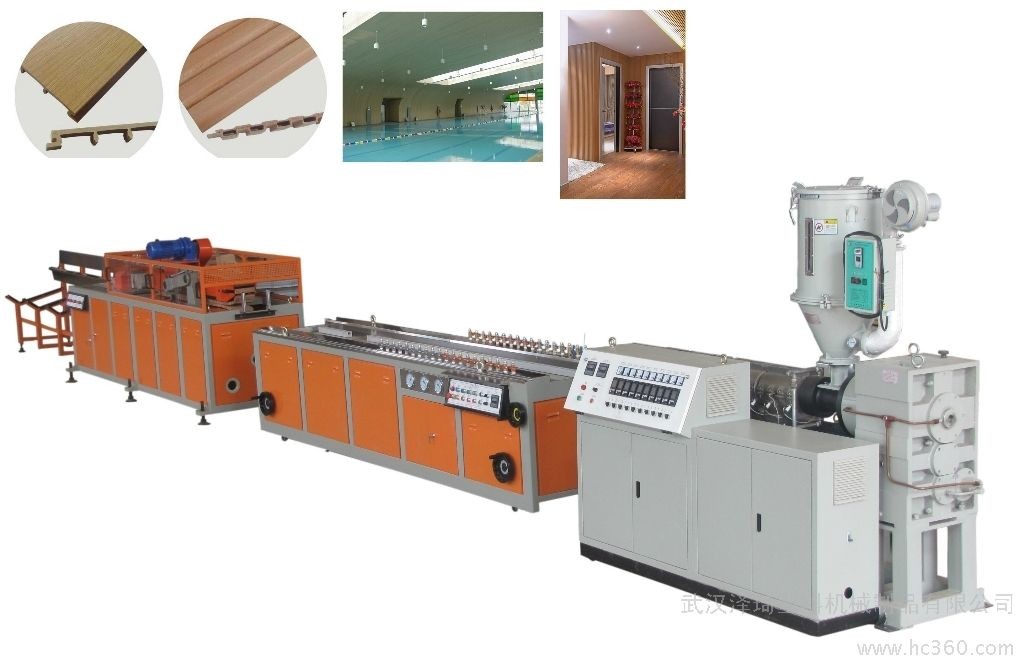

- Sistem produksi terintegrasi lengkap
| Peralatan | Spesifikasi | YF210 | YF240 | YF500 | YF800 |
|---|---|---|---|---|---|
| Extruder | Model ekstruder | SJSZ51/105 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
| Dimensi (m) | 3.3x1.45x2.1 | 3.45x1.45x2.25 | 5 x 1,54 x 2.28 | 6.2x1.55x2.7 | |
| Kapasitas (kg/jam) | 50 sampai 150 | 80-250 | 100 sampai 350 | 200-600 | |
| Kekuatan terpasang (KW) | 25 | 64 | 115 | 168 | |
| Tabel Ukuran | Dimensi (m) | 4.2 x 1 x 1.1 | 5.8 x 1 x 1.1 | 6.5x1.5x1.1 | 6.5x1.5x1.1 |
| Kekuatan terpasang (KW) | 18 | 24 | 30 | 43 | |
| Mesin Pengangkut & Pemotong | Dimensi (m) | 5.8x1.1x1.7 | 5.8x1.1x1.7 | 3.1x1.3x1.7 2.2x1.45x1.8 |
3.55 x 1.85 x 1.6 2.5x1.8x1.6 |
| Kecepatan tarik (m/menit) | 0-4 | 0-4 | 0-3 | 0-2 | |
| Kekuatan tarik (N) | 30000 | 30000 | 35000 | 50000 | |
| Area pemotongan maksimum/lebar (mm) | 240×65 | 240×65 | 500×80 | 800×80 | |
| Stacker | Panjang tumpukan (m) | 6 | 6 | 6 | 6 |
Sorotan Produk
Jalur mesin profil WPC satu langkah kami memiliki teknologi canggih dan pengoperasian mudah dengan sertifikasi CE.dan pintu menggunakan PE/PP/PVC dikombinasikan dengan bubuk kayu dan aditif. Komponen Jalur Produksi Lengkap Mesin pencampuran Pengumpan Matahari Pengekstrusi Sekrup Kembar Cetakan ...
