Name: 16mm~630mm PVC Pipe Making Machine China Factory Price
Brand: Zhangjiagang Langbo Machinery Co. Ltd.
SKU: LB-32
Price: 25,000.00 USD
Availability: InStock

fitur Galeri Deskripsi Produk Peringkat & Ulasan Quote request suatu

fitur

Spesifikasi

Diameter pipa: 75-250

Kekuatan Extruder: 55kw

Warna: Disesuaikan

UMBER PIPA: Pipa ganda

Bahan mentah: Bubuk & aditif PVC

Aplikasi: Pipa Pasokan Air

Voltase: 380V 50Hz atau disesuaikan

Nilai otomatis: Penuh secara otomat

Desain sekrup: Sekrup kembar dan laras

Layanan purna jual disediakan: Insinyur tersedia untuk mesin layanan di luar negeri, instalasi lapangan, commissioning dan pelatiha

Jaminan: 18 bulan

inverter: Abb

Warna: Dapat disesuaikan

Bahan mentah: Bubuk PVC

Motor: Merek Siemens

Kontaktor: Siemens atau Schnider

Sekrup dan laras: Ekstruder sekrup kembar kerucut

Diameter sekrup: 65/132

Aplikasi Pipa: Persediaan air

Paket: Film dan kotak

Pembayaran: T/T, L/C, Western Union

Waktu Pengiriman: 60 hari

Menyoroti:

PVC pipe making machine 16mm-630mm

PVC pipe extrusion line factory price

PVC pipe machine China manufacturer

Informasi dasar

Tempat asal: Zhangjiagang, Jiangsu

Nama merek: LB

Sertifikasi: CE ISO9001

Nomor model: LB-32

Syarat-syarat pembayaran & pengiriman

Kemasan rincian: Paket normal

Waktu pengiriman: 30 hari kerja

Syarat-syarat pembayaran: L/C,T/T

Menyediakan kemampuan: 15 set per bulan

Galeri

16mm~630mm PVC Pipe Making Machine China Factory Price

Deskripsi Produk

16mm~630mm PVC Pipe Making Machine China Factory PriceShort desciption

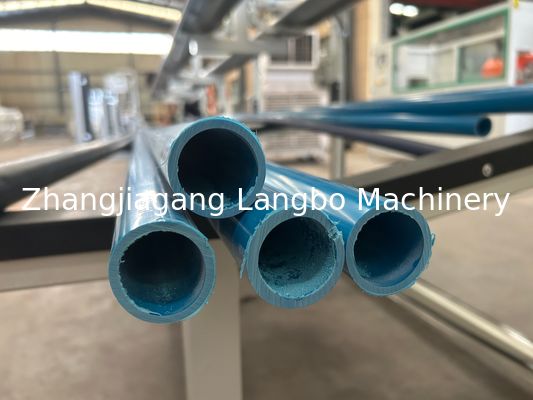

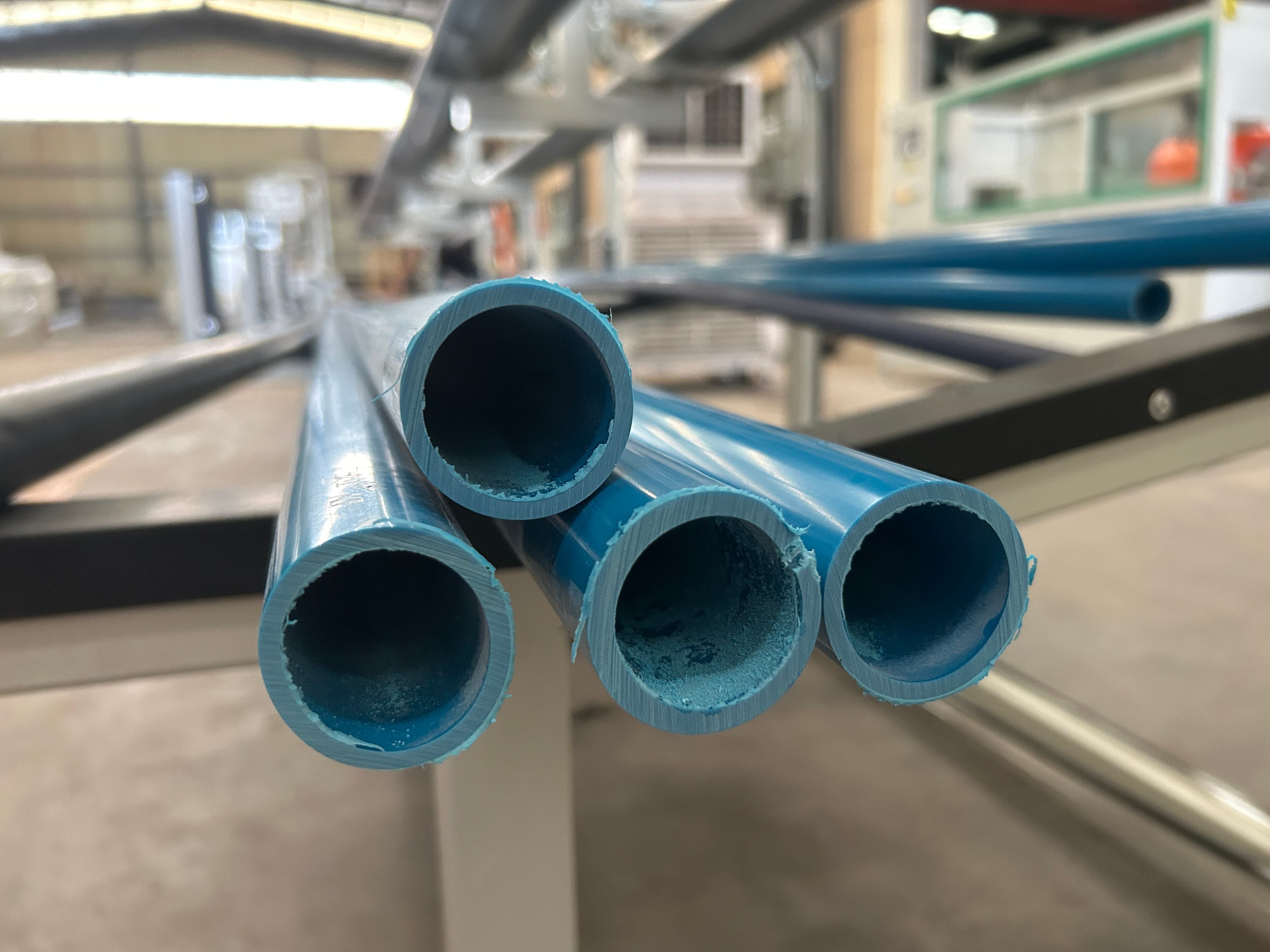

We provide a range of plastic pipe production lines, including 16-630mm PVC/UPVC pipe lines, 16-1200mm HDPE pipe lines, as well as lines for PP/PPR pipes, HDPE/PP/PVC double-wall corrugated pipes, and single-wall corrugated pipes. These lines can produce pipes for various applications such as water supply, drainage, gas supply, and conduit wiring. Specifically, the PVC pipe production line manufactures PVC pipes of different diameters and wall thicknesses, widely used in agricultural water supply, drainage, and electrical conduits.

Application
The UPVC pipes produced find extensive use in both industrial and daily scenarios, including electrical conduits, water supply pipes, sewage pipes, home decoration, chemical transportation, and gas distribution lines. They boast high strength and rigidity, structural integrity, excellent chemical resistance, durability, thermal stability, non-toxic safety, low maintenance needs, and cost-effectiveness.

Producting process
PVC powder + additives → Mixing → Spring feeding → Twin-screw extruder → Mould and calibrator → Vacuum forming machine → Haul-off machine → Cutting machine → Stacker.

Specifications:

MODEL	PIPE DIAMETER (MM)	EXTRUDER MODEL	MOTOR POWER (KW)
LB-32F	16-32 (FOUR PIPE)	SJSZ65/132	37 AC
LB-32E	16-32 (DOUBLE PIPE)	SJSZ51/105	22 AC
LB-32W	16-32 (DOUBLE PIPE)	SJSZ65/132	37 AC
LB-40E	16-40 (DOUBLE PIPE)	SJSZ51/105	22 AC
LB-40W	16-40 (DOUBLE PIPE)	SJSZ65/132	37 AC
LB-50E	16-50 (DOUBLE PIPE)	SJSZ51/105	22 AC
LB-50W	16-50 (DOUBLE PIPE)	SJSZ65/132	37 AC
LB-63W	16-63 (DOUBLE PIPE)	SJSZ65/132	37 AC

Product detail
Mixer
Boasting a specialized design, the mixer reduces raw material self-friction, which enhances energy utilization efficiency. Equipped with a vacuum suction loading system, it operates with low noise and maintains a dust-free working environment.

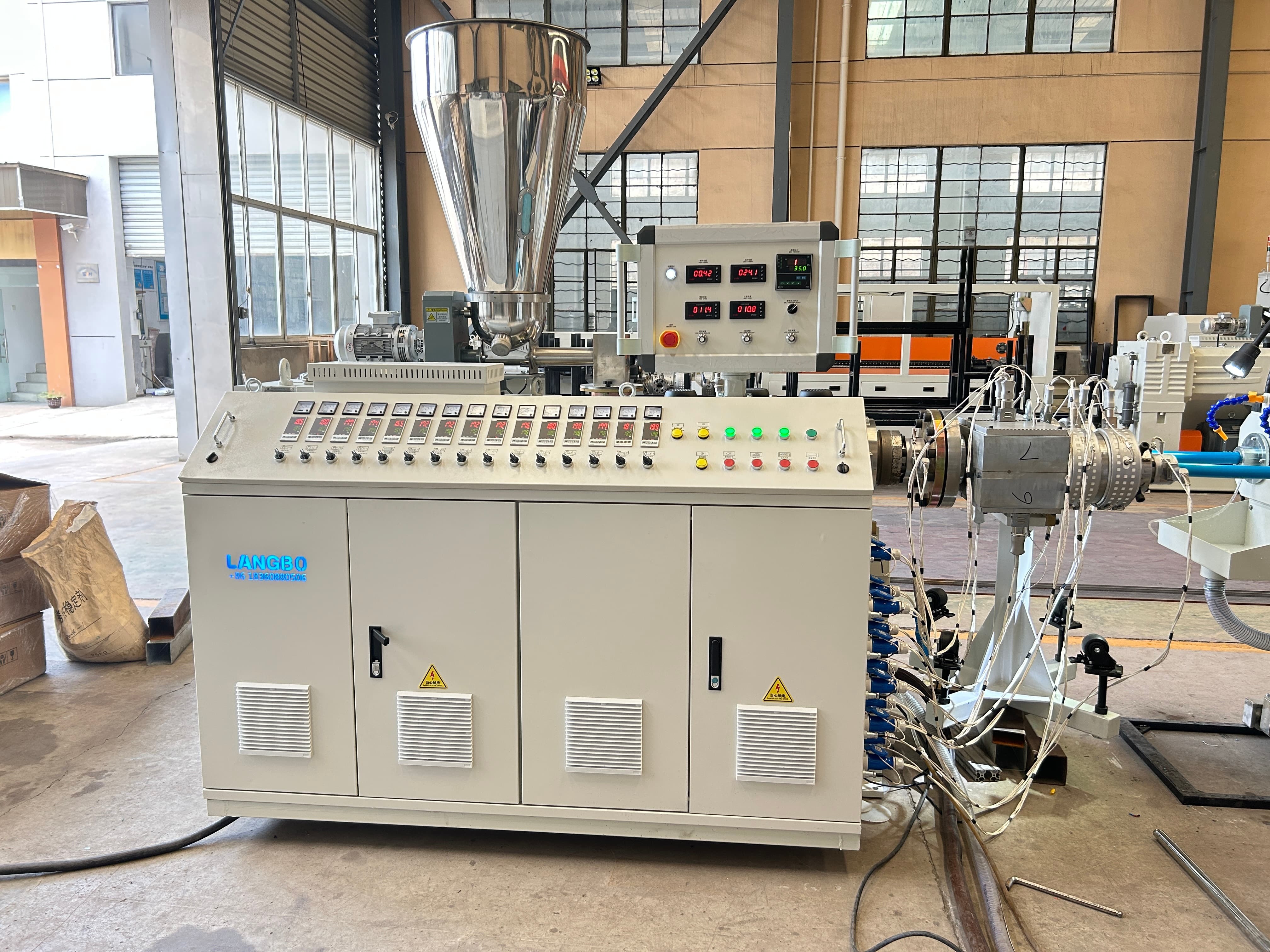

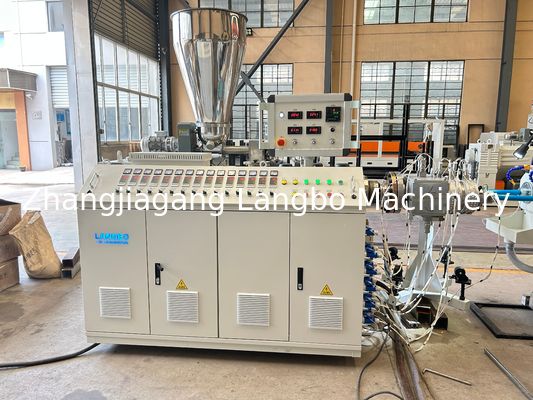

Twin screw extruder machine
Crafted with top-brand components, the extruder ensures stable production, high efficiency, and long-term durability. Its conical twin-screw design is tailored to raw material characteristics, enabling homogeneous mixing, superior plastification, and efficient conveying.

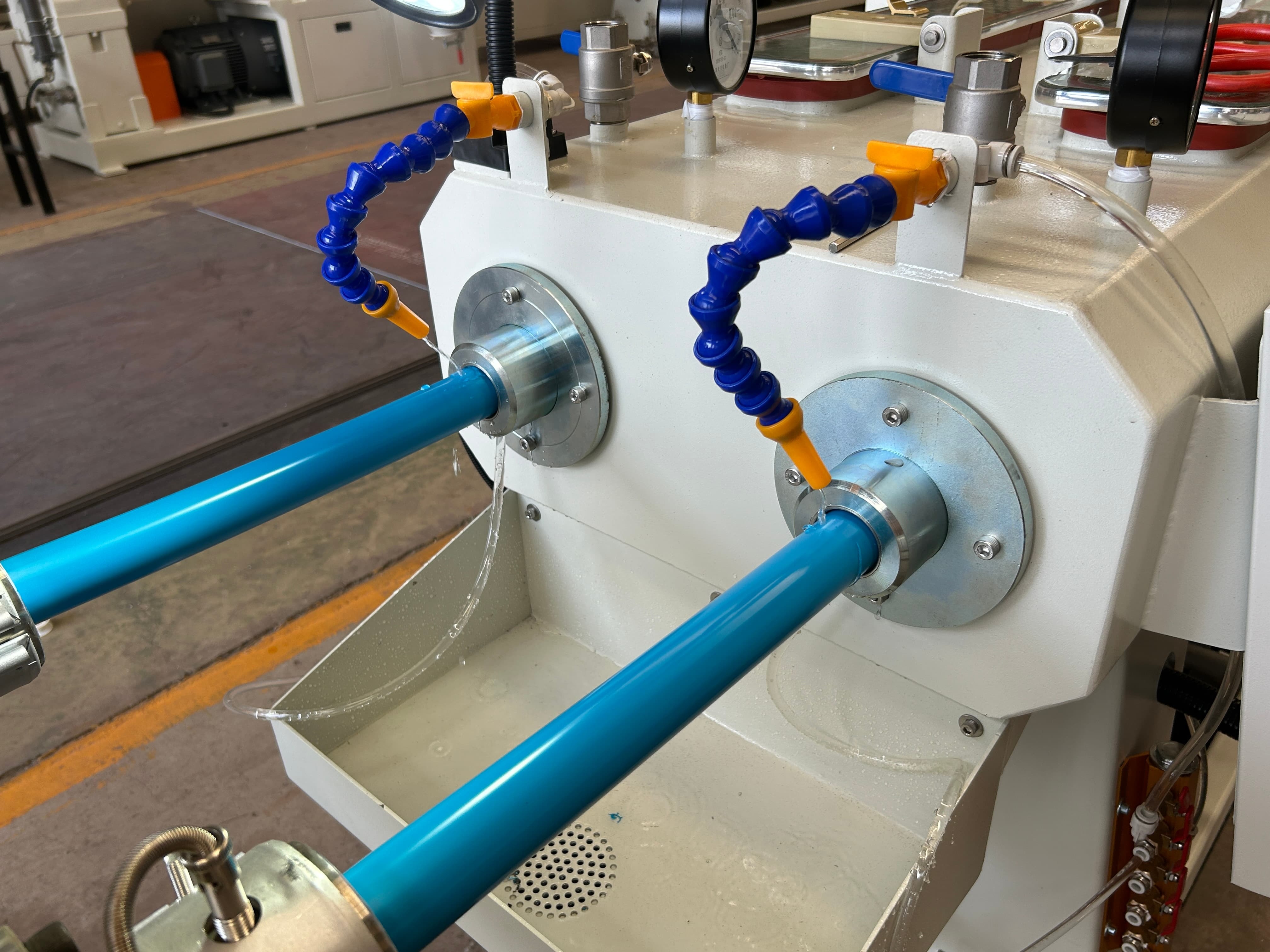

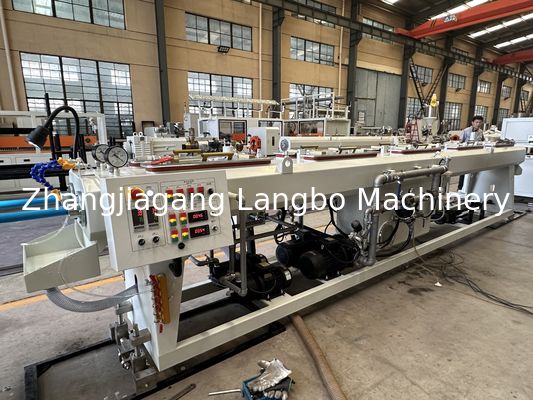

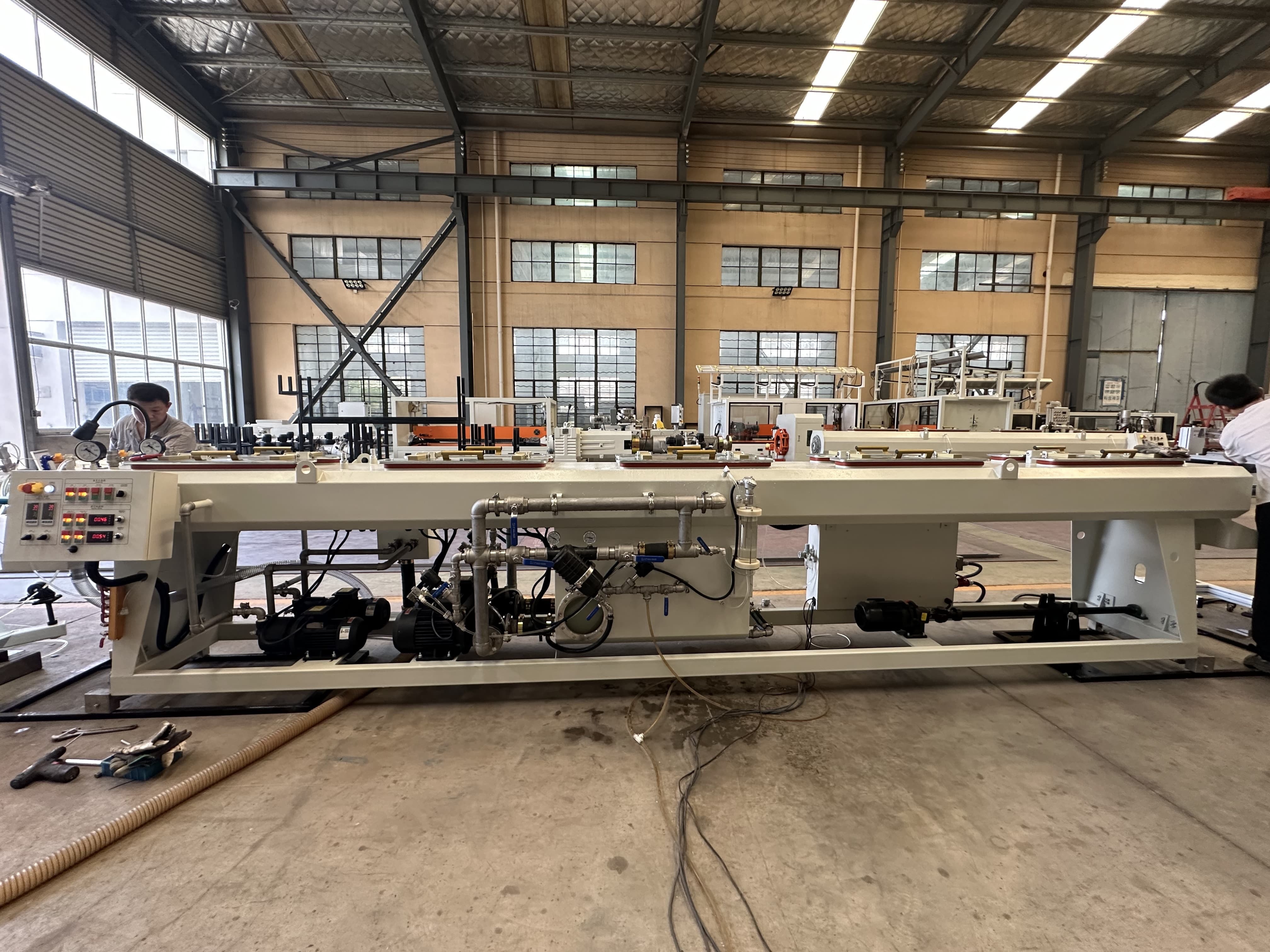

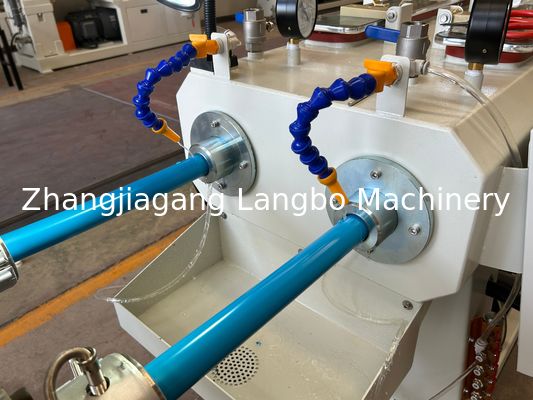

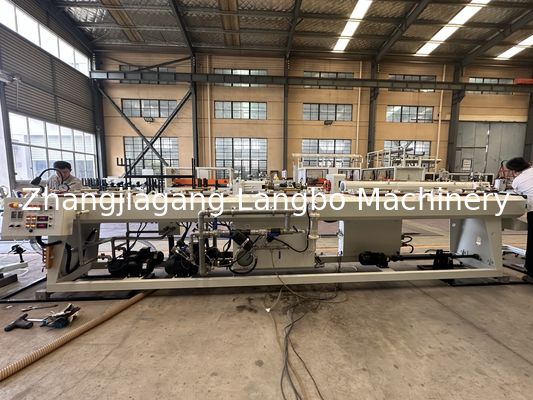

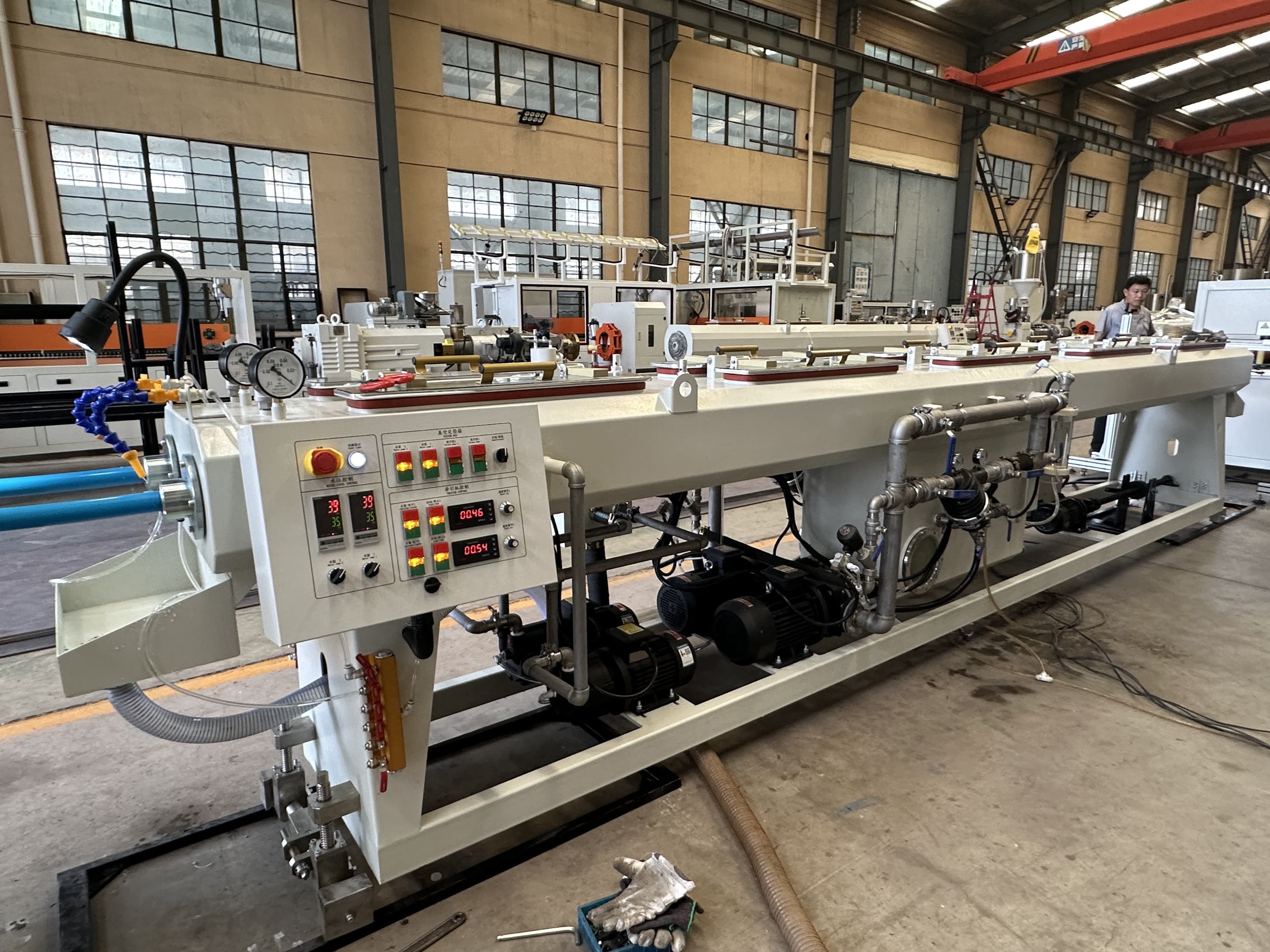

Vacuum Calibration & Cooling
The vacuum calibration tank features a two-chamber structure, integrating vacuum calibration and cooling functions. Both the vacuum tank and spraying cooling tank are made of 304 stainless steel. The high-performance vacuum system guarantees precise pipe sizing.

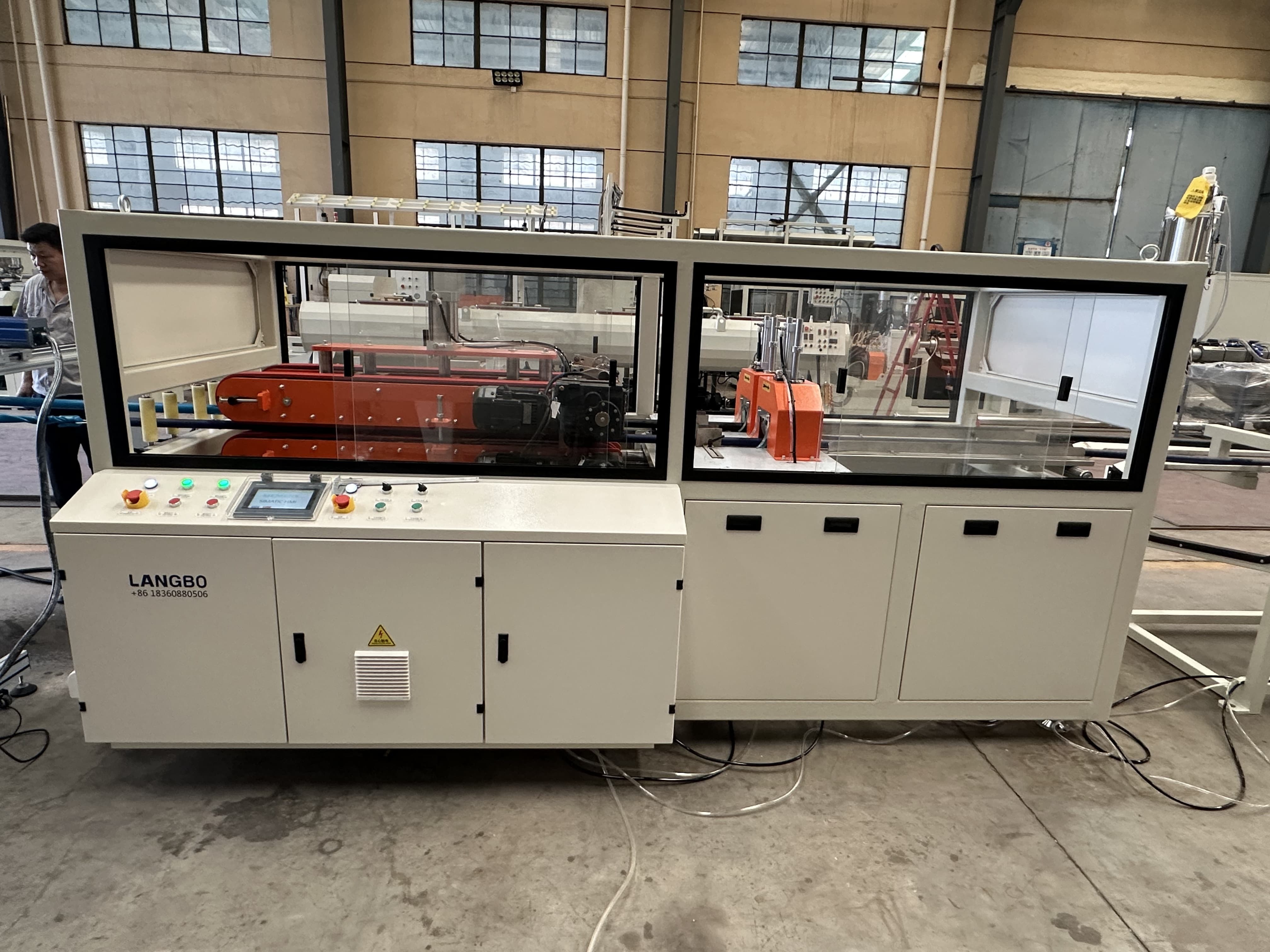

Haul-off Unit
Equipped with three caterpillar belts, the haul-off machine ensures stable movement of produced pipes. By adjusting the general control, it can be customized into tailored hauling modes to meet specific production requirements.

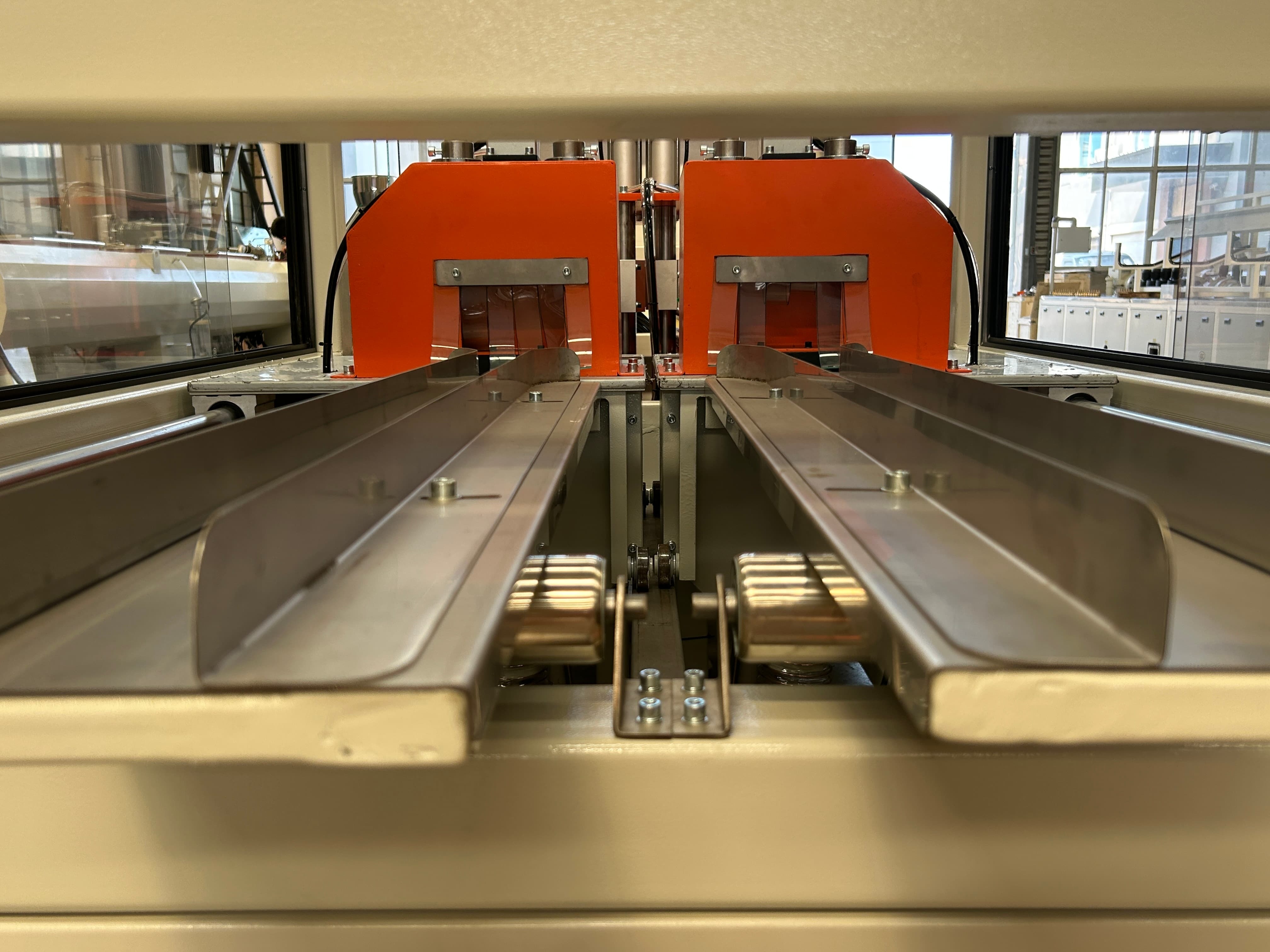

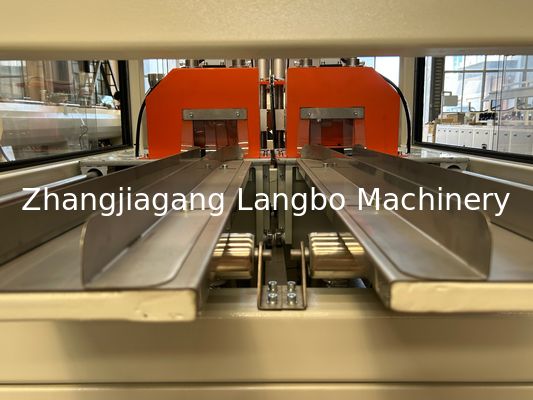

Cutting Unit
A high-precision encoder ensures accurate and stable cutting lengths. Controlled by a PLC system, it supports manual operation for cutting according to specific application needs.

Technical Features:

1- PLC control, high degree of automation

2- Adopting special screw and barrel, good effect

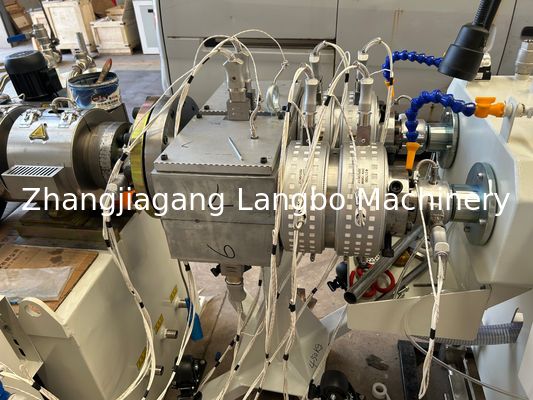

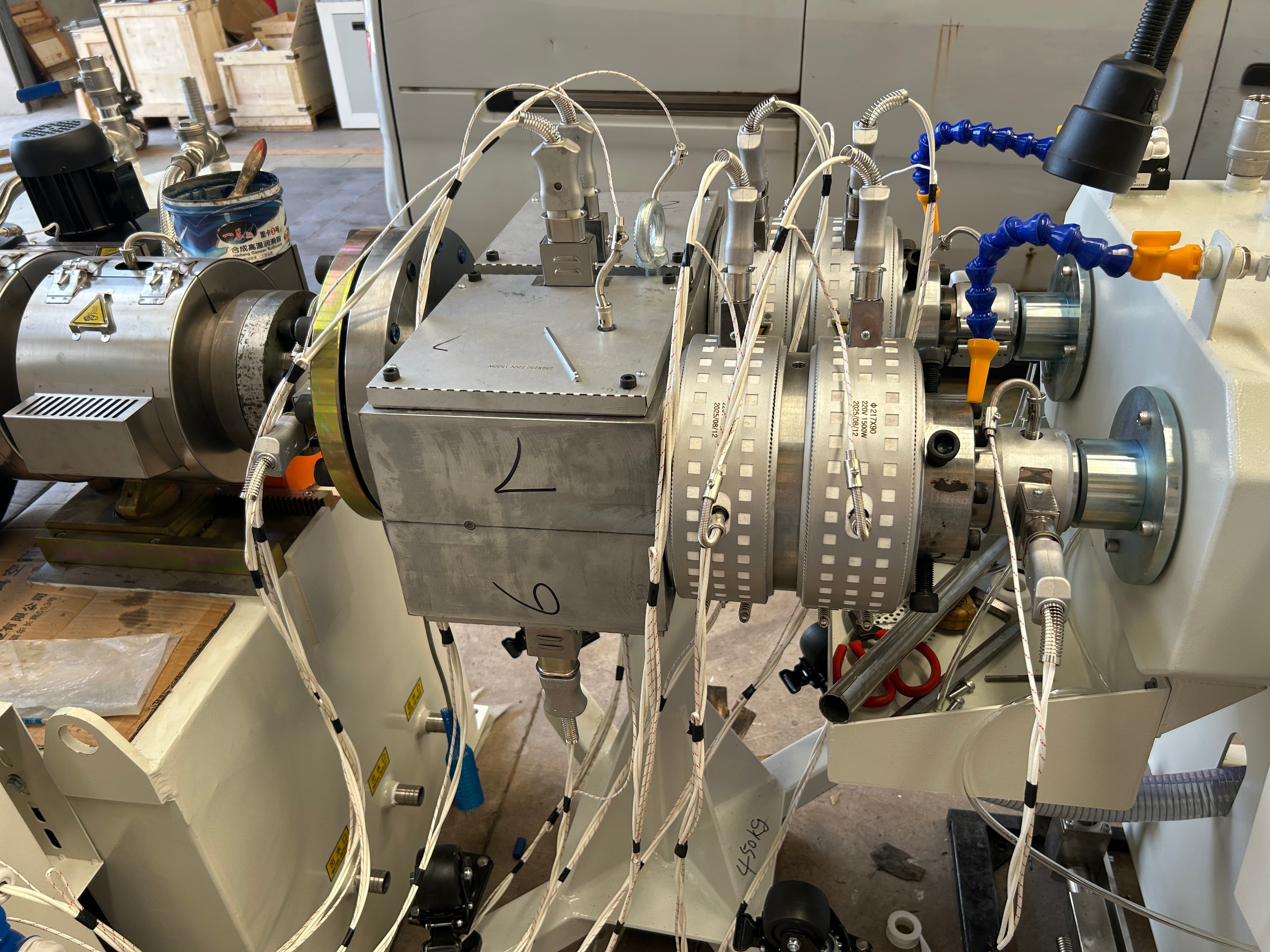

3- Adopting compound spiral engine head, effectively eliminate memory function of the material
4- Easy operate and need less worker
5- Convenient for maintaining

Delivery information:

1. Delivery: 30 days after ur order

2. Warrenty: 12 months

3. Payment: T/T 30% in advance, T/T 70% before delivery.

4. Packing: Standard export wooden case

Our Service

1. One year guarantee for whole machine.

2. 24 hours technical support.

3. Our engineers can provide installation & commission service overseas.

4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.

5. We also can provide training service which help operators handle the machine well.
