Rumah /Produk/PPR pipe ekstrusi baris/PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs

PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs

1 Set
MOQ
Negotiable（USD EUR）
harga
PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs
fitur Galeri Deskripsi Produk Peringkat & Ulasan Quote request suatu
fitur
Spesifikasi
Metode Pengepakan: Paket kayu dan film
voltase: 380V atau Disesuaikan
Panjang Mesin: Kurang lebih 15 meter
Ukuran: 16-300mm
Kapasitas: 250-300kg/jam
Kecepatan Haul-Off: 0-20 m/mnt dapat disesuaikan
TANDAKAN GARIS: Extruder sekrup tunggal
Nama Produk: jalur ekstrusi pipa ppr
Kisaran diameter pipa: 16mm - 110mm
Komponen Listrik: atau Schnider
Informasi dasar
Tempat asal: Zhangjiagang
Nama merek: LB
Sertifikasi: CE/ISO
Nomor model: LB-63
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Paket Biasa
Waktu pengiriman: 45 hari -hari Woking
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 15 set per bulan
Deskripsi Produk
PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs
Co-Extrusion Process

Co-extrusion involves sending two or more molten raw materials through a single die to produce multi-layer pipes with various colors or wall thicknesses. This process combines multiple plastics to create materials with distinct properties, opening new frontiers in material engineering and addressing complex manufacturing needs. Co-extrusion also reduces costs by incorporating recycled and reground scrap within virgin material for applications like handrails, fences, tubing, structural components, and air-blown food containers.

Complete Extrusion Line Components

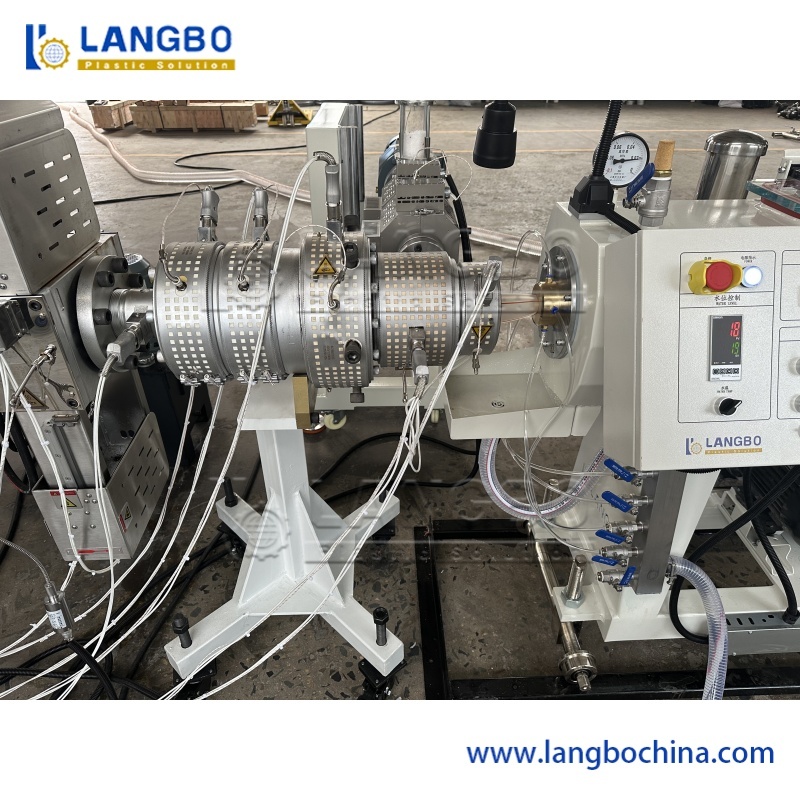

  • Single screw extruder
  • Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes
  • Die head
  • Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
  • Cooling tank: Configured with one, two, or three tanks depending on diameter
  • Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter

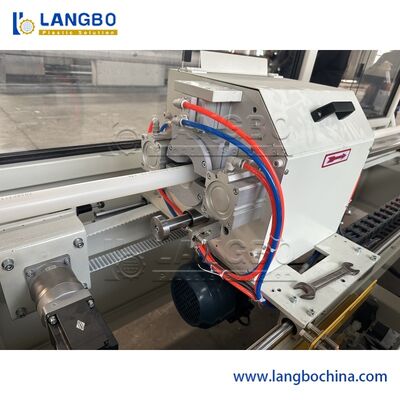

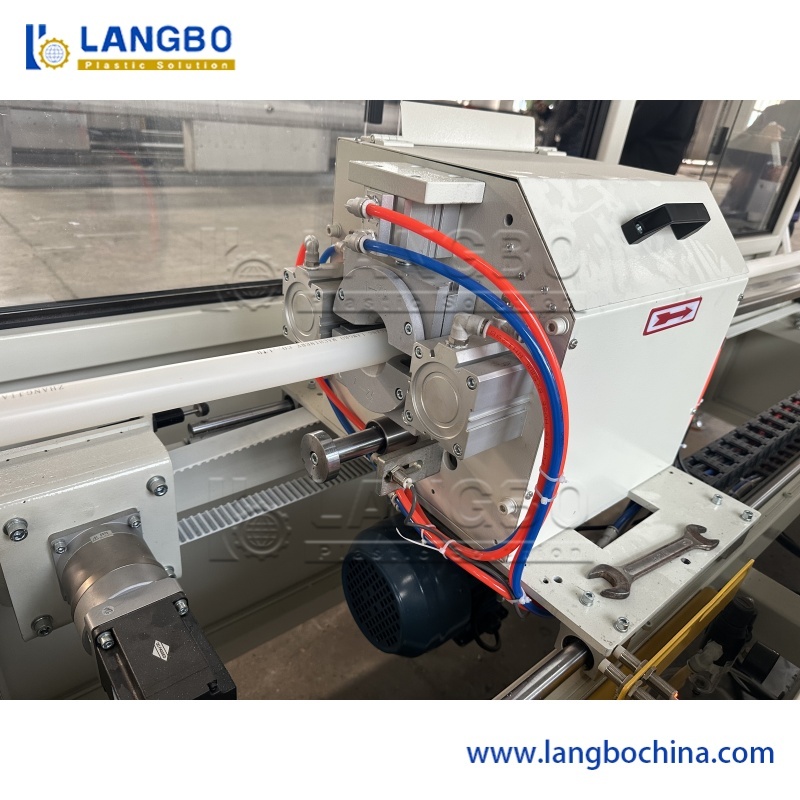

  • Cutter: Options include no-scraps cutter or planetary cutter designs
  • Coiler/Tipping chute
Specifications
Model Pipe Diameter (mm) Extruder Extruder Power (kw) Capacity (kg/hr)
LB-63 16-63 SJ65/33 55AC 150
LB-110 20-110 SJ75/33 75AC 180

PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs 0


PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs 1

PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs 2PPR Pipe Extrusion Line | Hot Cutting, Precise Dimensions, Flexible Specs 3

Peringkat & Ulasan

Penilaian Keseluruhan

5.0
Berdasarkan 50 ulasan untuk pemasok ini

Cuplikan Penilaian

Berikut adalah distribusi dari semua peringkat
5 bintang
100%
4 bintang
0%
3 bintang
0%
2 bintang
0%
1 bintang
0%

Semua Ulasan

F
Fahad Al Quraishi
Saudi Arabia Oct 22.2025
Berguna (12)
We tested various PVC formulations, and the line handled them well. The calibration table ensures perfect profile shaping. Very suitable for mass production of shelf-edge price tags.
O
Olivia Grant
Canada Oct 16.2025
Berguna (24)
We mainly produce electrical conduit. The line performs consistently with precise diameter control. Energy consumption is lower than our previous system, and the vacuum tank is well designed for stable shaping. Highly recommended.
R
Rajesh Kumar
India Nov 27.2024
Berguna (15)
Plasticizing performance is consistent, and the output quality meets our production requirements.
