Name: PPR Pipe Extrusion Line With Schneider Controlled Screw Extruder System
Brand: Zhangjiagang Langbo Machinery Co. Ltd.
SKU: LB-63
Price: 25,000.00 USD
Availability: InStock

fitur Galeri Deskripsi Produk Peringkat & Ulasan Quote request suatu

fitur

Spesifikasi

Desain Sekrup: Sekrup tunggal

Diameter pipa: 20-110mm

Panjang: 20mx2.5mx2.2m

Keluaran: 120Kg/jam

Zona pemanasan: 4-6 Zona

Metode Pengepakan: Paket kayu dan film

Tipe material: Kopolimer Acak Polipropilena (PPR)

Output maks: 150KG/JAM

Kecepatan Produksi: 12 m/mnt; 20 m/mnt; 28 m/mnt

Kontaktor: Schneider

Informasi dasar

Tempat asal: Zhangjiagang

Nama merek: LB

Sertifikasi: CE/ISO

Nomor model: LB-63

Syarat-syarat pembayaran & pengiriman

Kemasan rincian: Paket Biasa

Waktu pengiriman: 45 hari -hari Woking

Syarat-syarat pembayaran: L/C,T/T

Menyediakan kemampuan: 15 set per bulan

Galeri

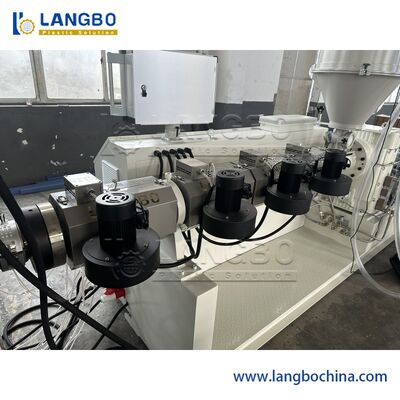

PPR Pipe Extrusion Line With Schneider Controlled Screw Extruder System

Deskripsi Produk

PPR Pipe Extrusion Line With Schneider Controlled Screw Extruder System

This specialized PPR pipe making machine is designed for manufacturing pipes used in plumbing and floor heating systems, utilizing advanced co-extrusion technology for superior product quality.

Co-Extrusion Process

Co-extrusion involves sending two or more molten raw materials through a single die to produce multi-layer pipes with various colors or wall thicknesses. This process combines multiple plastics to create materials with distinct properties, opening new frontiers in material engineering and addressing complex manufacturing needs. Co-extrusion also reduces costs by incorporating recycled and reground scrap within virgin material for applications like handrails, fences, tubing, structural components, and air-blown food containers.

Complete Extrusion Line Components

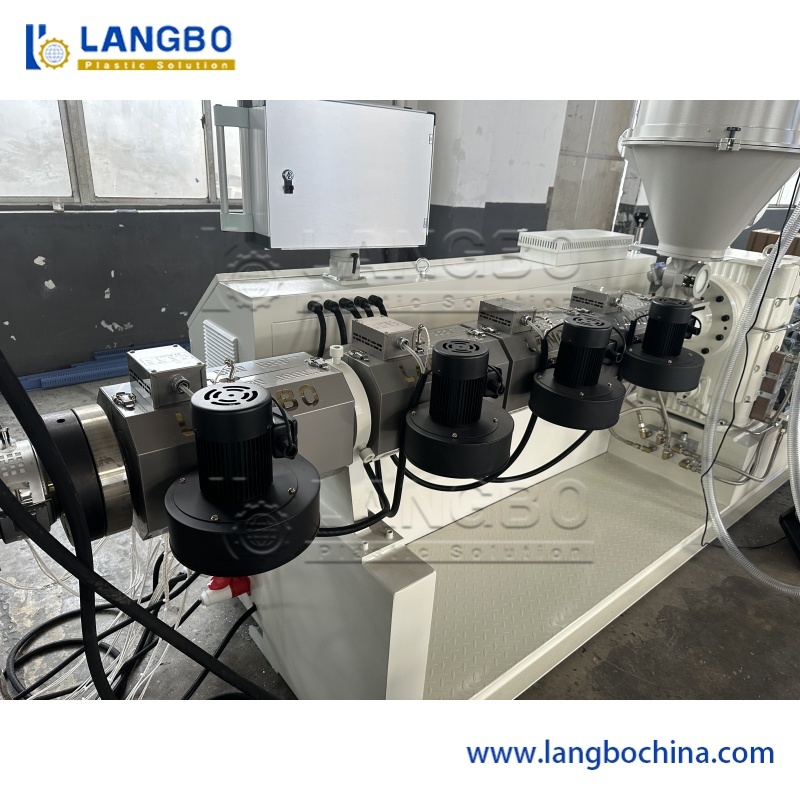

Single screw extruder
Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes

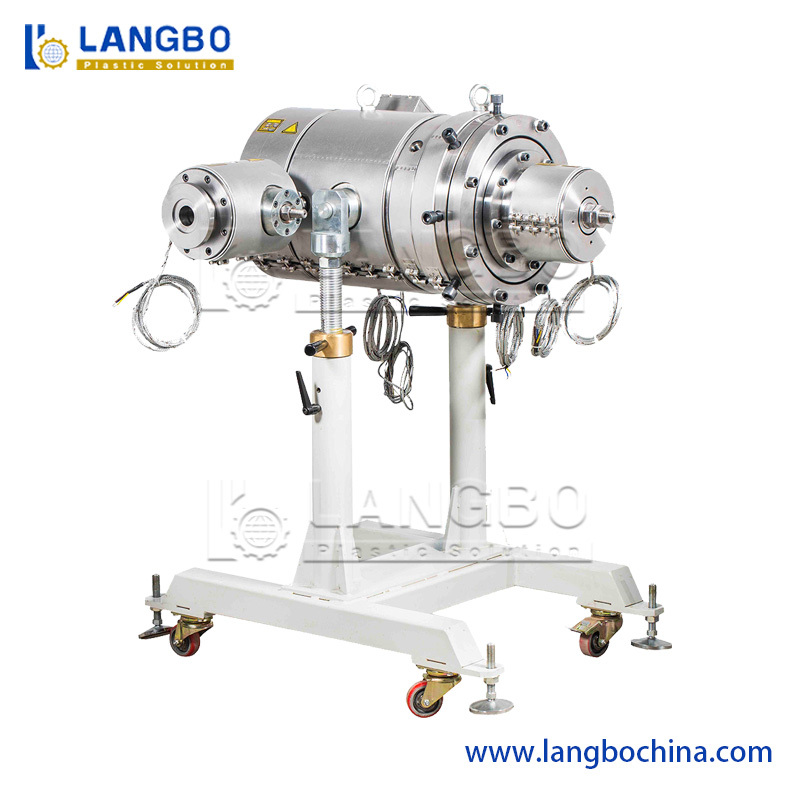

Die head

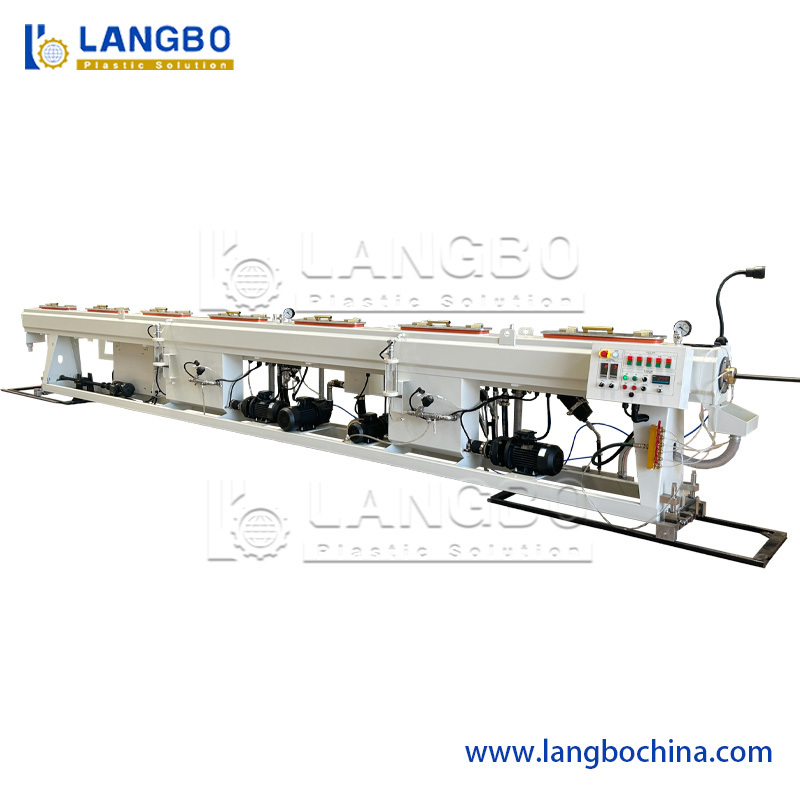

Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
Cooling tank: Configured with one, two, or three tanks depending on diameter
Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter
Cutter: Options include no-scraps cutter or planetary cutter designs
Coiler/Tipping chute

Specifications

Model	Pipe Diameter (mm)	Extruder	Extruder Power (kw)	Capacity (kg/hr)
LB-63	16-63	SJ65/33	55AC	150
LB-110	20-110	SJ75/33	75AC	180

Product Images

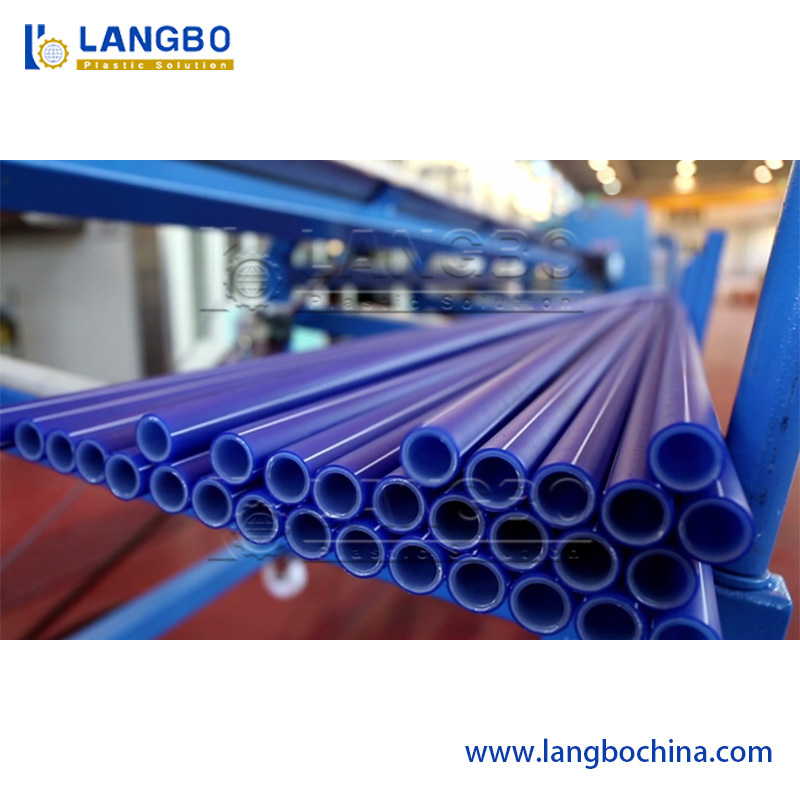

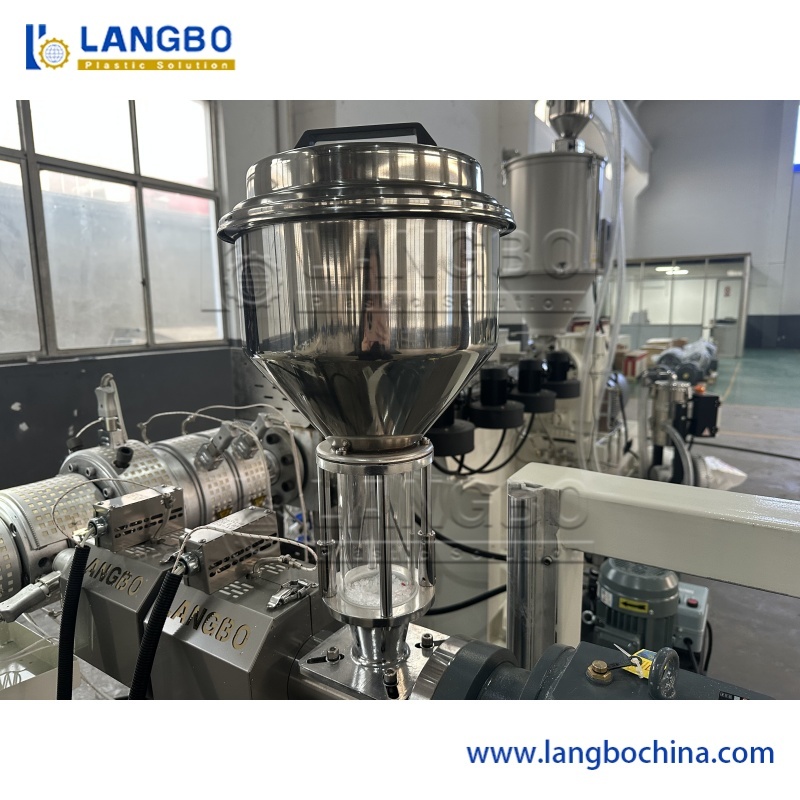

PPR Pipe Extrusion Line With Schneider Controlled Screw Extruder System 0

PPR Pipe Extrusion Line With Schneider Controlled Screw Extruder System 1

PPR Pipe Extrusion Line With Schneider Controlled Screw Extruder System 2

PPR Pipe Extrusion Line With Schneider Controlled Screw Extruder System 3

PPR Pipe Extrusion Line With Schneider Controlled Screw Extruder System 4
